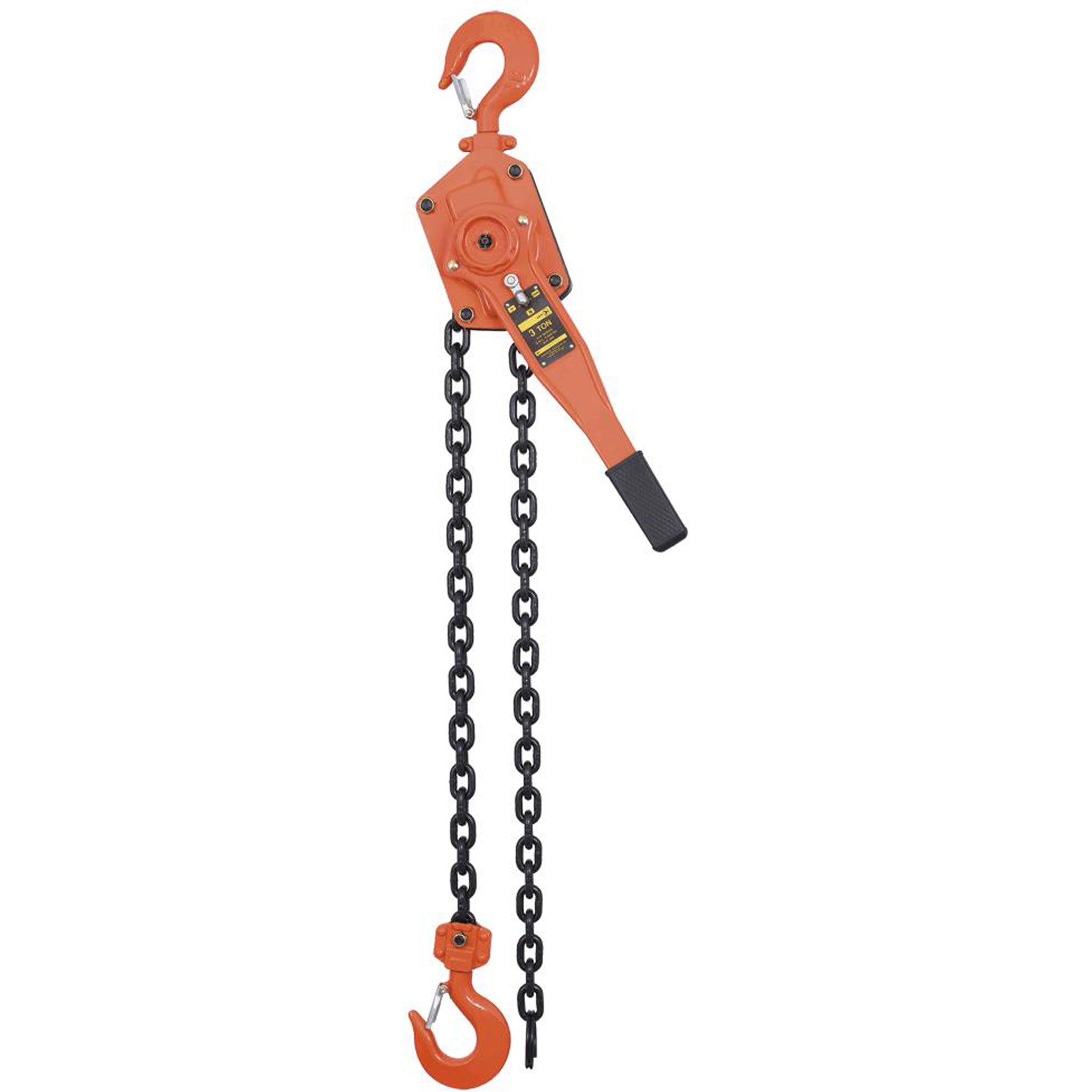

VLP Series Lever Chain Hoist, 10' Lift, 6600 lbs. (3 tons) Capacity

• Cold formed stamped steel housings resist impact
• Hardened steel roller bearings support load for easier operation
• Dual pawl Weston-style brake for reliable and safe operation
• Exclusive premium grade, non-asbestos brake discs for longest life
• Top and bottom safety hooks bend to warn of overloads
• Deformation indicators on hooks allow accurate measurement for easy maintenance
• Min. Distance Between Hooks

Specifications:
Capacity: 6600 lbs. (3 tons)
Lift: 10'
Standard(s) Met: ISO 9001-2000, ASME B30.21
Load Chain Diameter: 10 mm
Load Chain Grade: 80
Number Of Falls: 1
Min. Distance Between Hooks: 18-7/8"
Force Required To Lift: 70 lbs.
Lever Length: 16-1/2"
