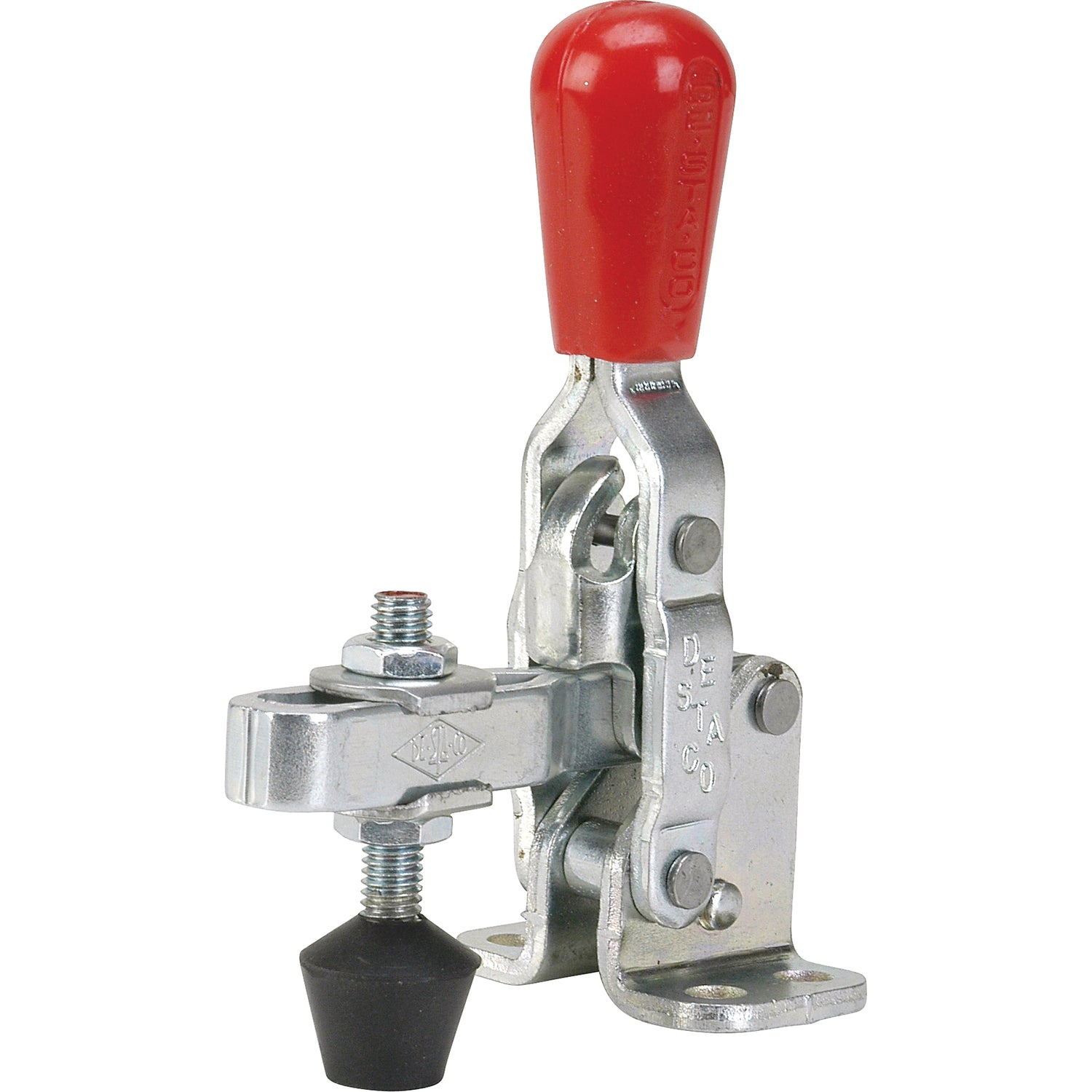

• The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. The smallest vertical clamp available. U-shaped hold-down bar furnished with bonded neoprene-tipped 10-32 spindle assembly (TN140) and flanged washers (TN121).
• Base L" X W"

Specifications:
Style: Vertical
Clamping Force: 100 lbs.
Dimensions" A: 3.0625
Dimensions" B: 2.015625
Dimensions" C: 11/16"
Dimensions" D: 5/8"
Base L" X W": 1 x 1 5/16
Weight: 0.15 lbs.
