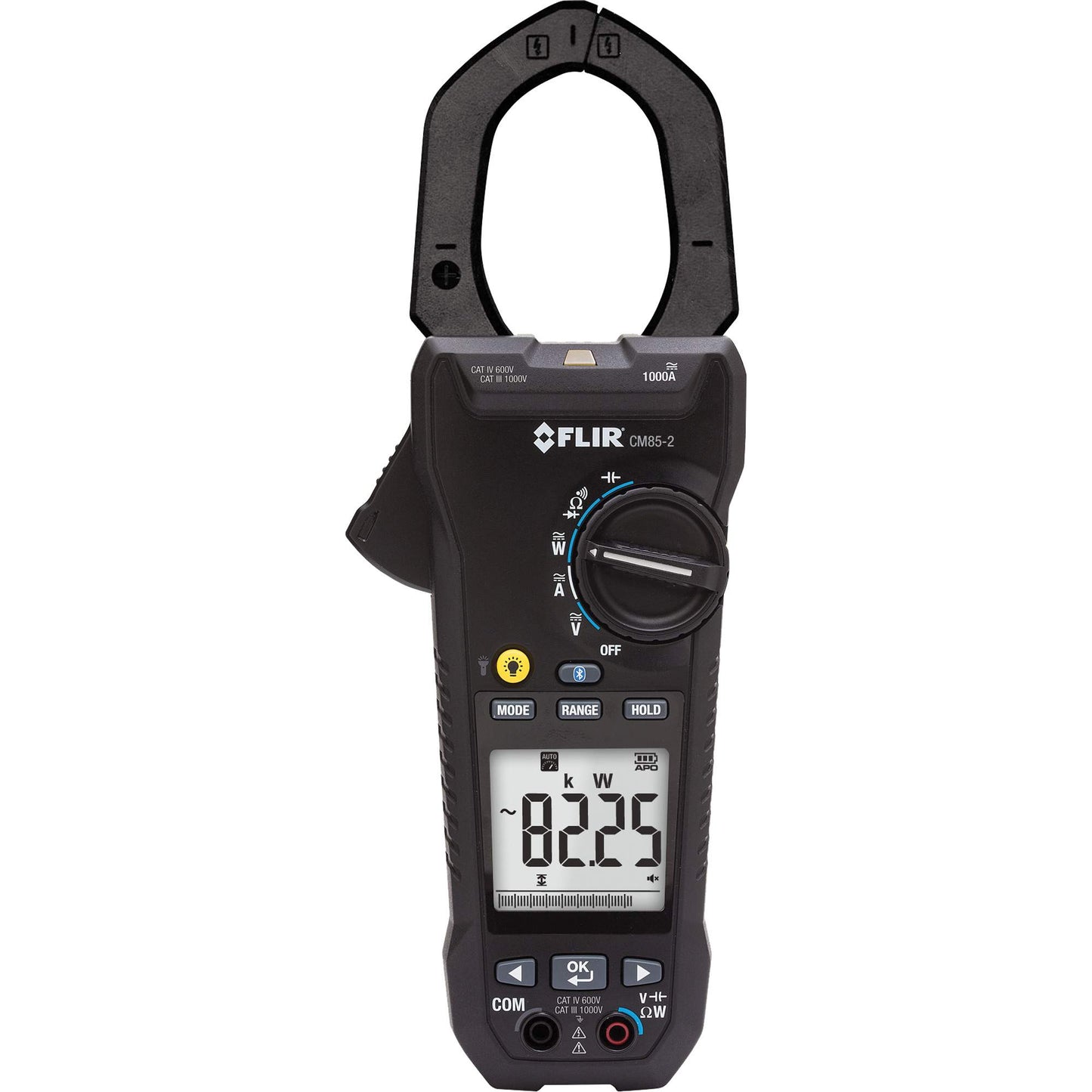

True RMS Wireless Power Clamp Meter , AC/DC Voltage, AC/DC Current

• An industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical trouble shooters for full-scale equipment
• Accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing with a wide AC/DC voltage range and base accuracy of ±1%
• Stream live data in real time from the CM85-2 to your mobile device over Bluetooth®
• Using the METERLiNK® app, you can compare log files, create alarm thresholds, visualize trends, and create reports to share with team members
• VFD mode increases accuracy when working on VFD-controlled equipment
• Conduct multiple conductor measurements with True RMS AC Current up to 1000 Amps
• DC Current

Specifications:
Voltage Readings: AC/DC
Current Readings: AC/DC
Jaw Opening: 45 mm (1.77 in.)
AC Current: 99.99 A, 50-60 Hz ± (2% + 5 digits); >60–400 Hz ± (2.5% + 5 digits)
AC Voltage: 99.99 V, 50–500 Hz ±(1.0% + 5 digits)
Capacitance: 3.999 μF, ±(1.9% + 8 digits)
DC Current: 99.99 A, ±(2% + 0.5 A)
DC Voltage: 99.99 V, ±(0.7% + 2 digits)
Diode: 0.4 to 0.8 V, ±0.1 V
Power Factor: -1 to 0 to +1, ±3° ±1 digit
Battery Life: 50 Hours with Alkaline Batteries (Backlight, Work Light, & Bluetooth are Off)
