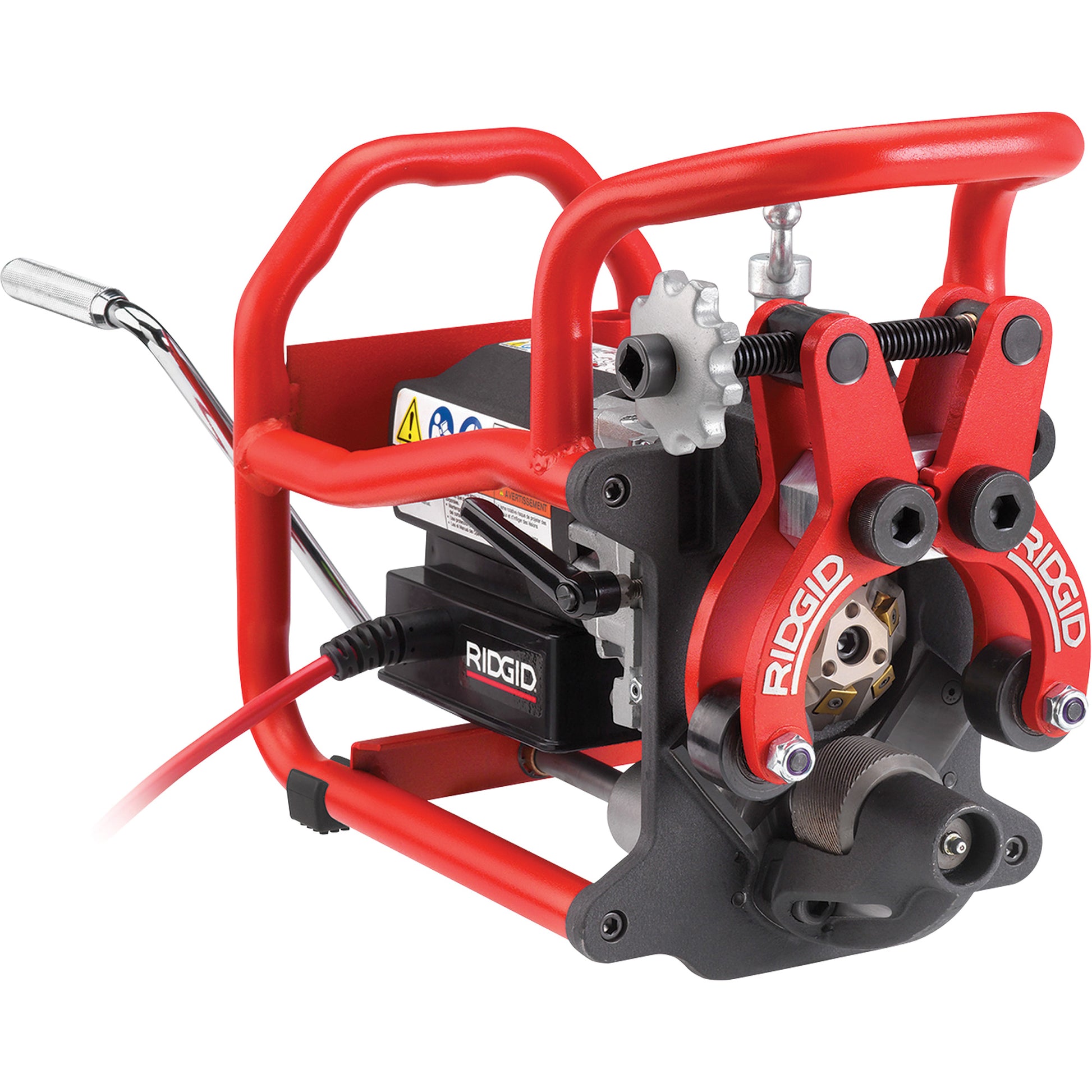

Transportable Pipe Beveller

• Compact design quickly mounts to pipes with a 4" and up diameter, with a maximum wall thickness of 1/2", and creates consistent bevels in a single pass
• Set up and bevel 10" diameter schedule 40 pipe in 45 seconds
• Pipe is cool to touch immediately following beveling
• Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes
• Adjustable land width from 0" to 3/16" to fit welders' requirements
• Produces a machined finish due to 6 replaceable cutter inserts working simultaneously
• Voltage
• Speed monitoring feature with LED indicators for optimal cutter performance

Specifications:
Capacity: 4" Pipe & Larger Flat Plat
Pipe Wall/Plate Thickness: 4.8 mm - 12.7 mm
Dimensions (L X W X H): 15.8" x 11..5" x 13.3"
No Load RPM: 950
Frame Material: Steel
Land Width: 0" - 3/16" in 1/32" Increments
Voltage: 115 V
