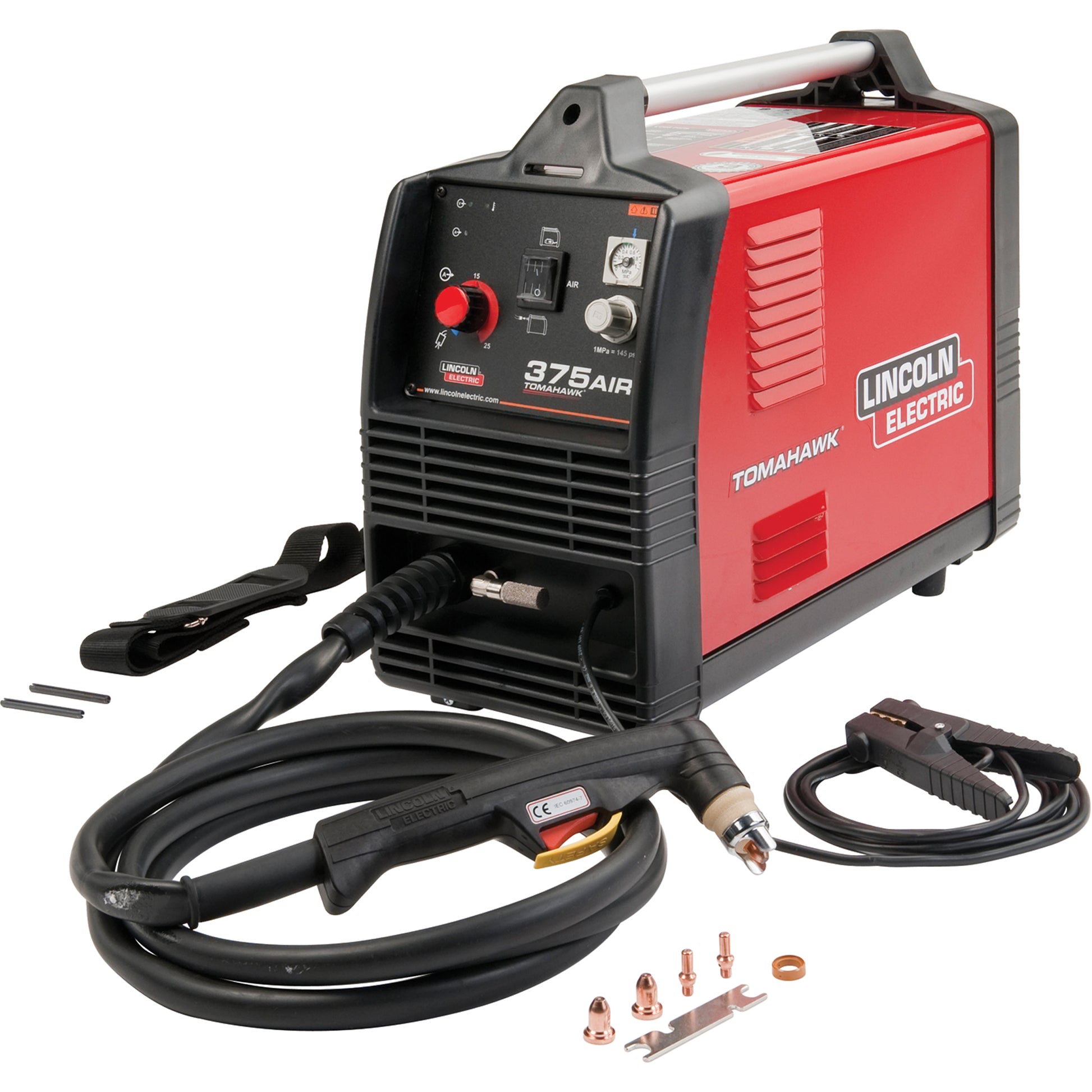

Tomahawk® 375 Air Plasma Cutters

• Internal air compressor enables operation in environments where external compressed air is not available
• 3/8" maximum cut @ 14 IPM
• Continuous output control focuses the arc for different material thickness
• Touch start system, reliable plasma arc initiation without high frequency
• Rapid arc restrike
• Front panel purge control makes it easy to set the air fl ow rate without initiating the plasma arc
• Output Range
• 3-year warranty on machine, 90 days on torch

Specifications:
Voltage Input Power: 208 V/230 V
Phase Input Power: 1 Ph
Hertz Input Power: 60 Hz
Rated Output Current/Voltage/Duty Cycle: 13 A/85.2 V/100%; 18 A/87.2 V/60%; 25 A/90 V/35%
Input Current @ Rated Output: 21.7 A (max.)
Pilot Current: 17 A
Output Range: 10-25 A
Air Pressure Required: 80-110 PSI (6-7.5 Bar)
Air Flow Required: 70 PSI @ 125-200 SCFH (5 Bar @ 80 Litres/min)
Manufacturer's Warranty: 3 Years
