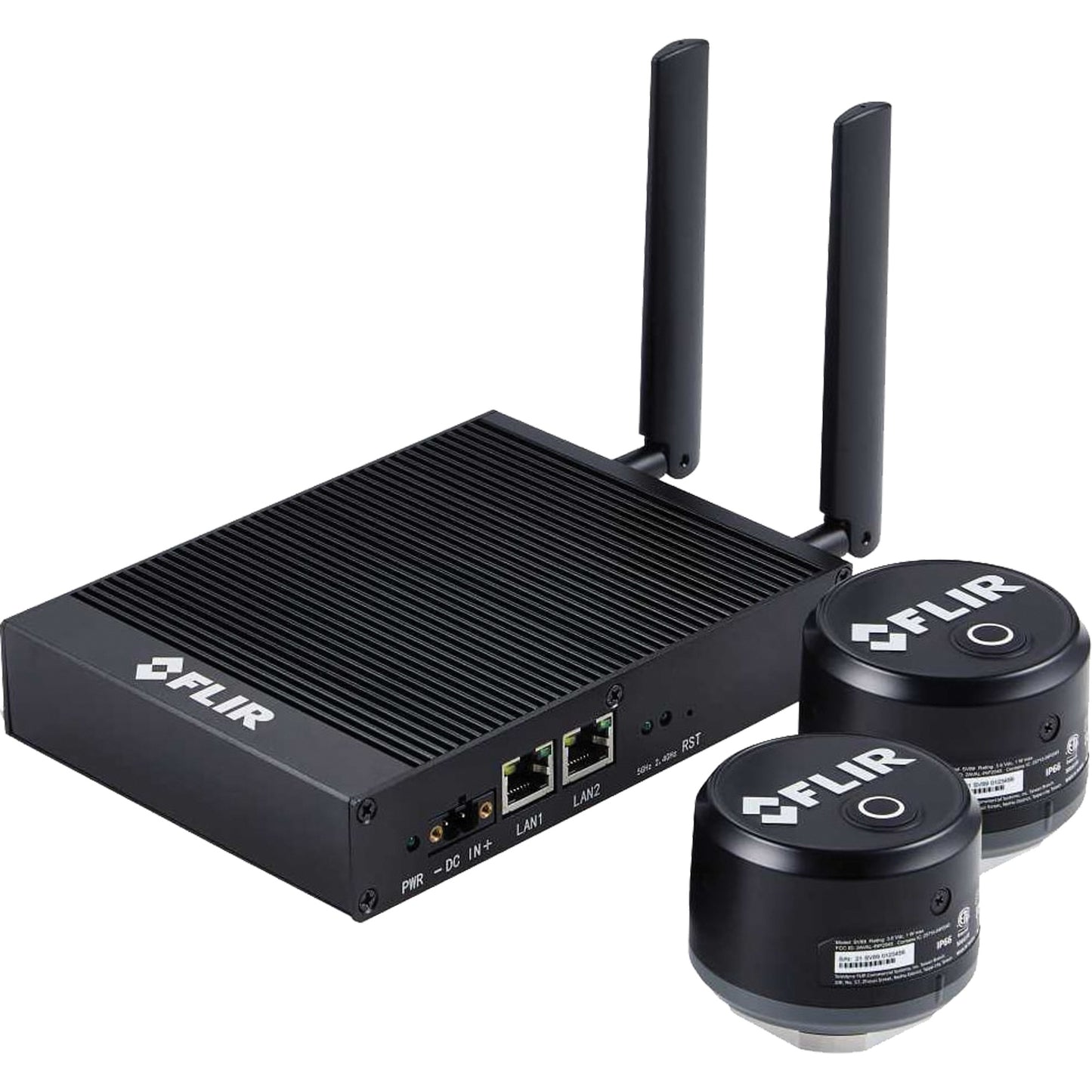

SV88™ Vibration & Temperature Monitoring Kit

• Helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems
• With its multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 Vibration Monitoring Solution Kit allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets
• Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - averting costly downtime
• Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments
• Web based GUI for accessing vibration data, deploying sensors, and managing integrations, all performed on Gateway, ensuring you have complete control over your vibration solution
• The SV88 seamlessly integrates with advanced analysis tools through multi-communication protocols such as Modbus, MQTT, and OPC UA
• Battery Life

Specifications:
AC Input: 100 V to 240 V AC, 50/60 Hz (Optional)
Capture Rate: Configurable: 1 min (min.) - 1 day (max.)
Frequency Range: Up to 50 m (160 ft)
Sensitivity Range: ± 16 g
Temperature Range: -20°C to 80°C (-4°F to 176°F)
Vibration Analysis Data: Grms, Vrms (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT
Battery Life: Min. 2 Years (Subject to Sampling Rate & Installation Environments)
Manufacturer's Warranty: 3 Years
Standard(s) Met: ETL, FCC, IC, CE, UKCA, RCM
