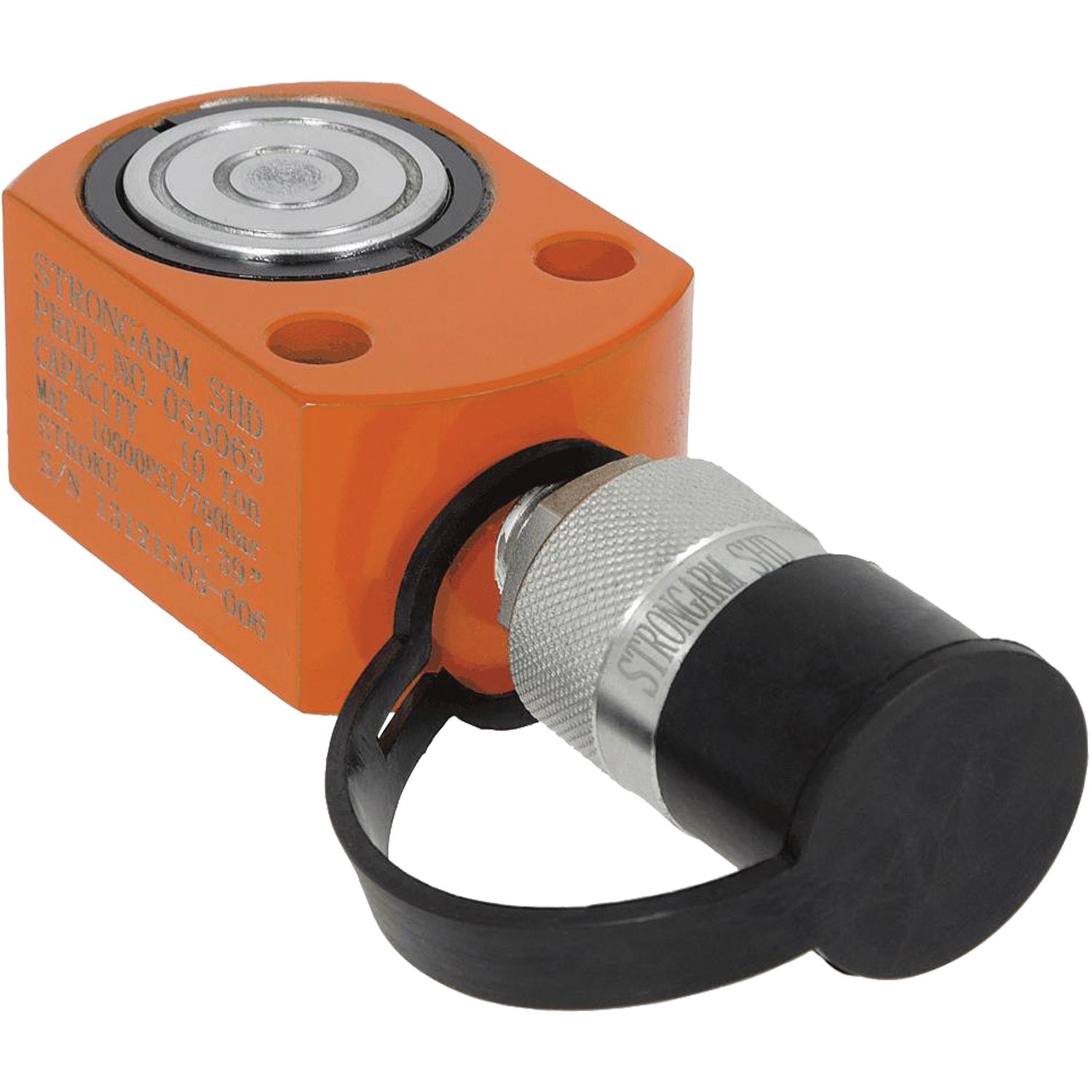

Super Heavy-Duty Low Height Single-Acting Cylinder, 10 Ton(s) Capacity
Super Heavy-Duty Low Height Single-Acting Cylinder, 10 Ton(s) Capacity is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Super Heavy-Duty Low Height Single-Acting Cylinder, 10 Ton(s) Capacity
Description
Description
• For use in confined spaces
• Complies with ASME B-30.1
• High strength alloy steel for durability
• Mounting holes for fixture attachment
• Heavy duty plunger return springs
• High quality 3/8"-18NPT quick coupling
• Piston Rod Diameter
• Baked enamel finish for increased corrosion resistance
Specifications:
Lifting Capacity: 10 Ton(s)
Collapsed Height: 1.65"
Cylinder Effective Area: 2.25 in²
Extended Height: 2.09"
Oil Capacity: 0,88 in³
Outside Diameter: 3.27" x 2.20"
Piston Rod Diameter: 1.50"
Weight: 3.3 lbs.
