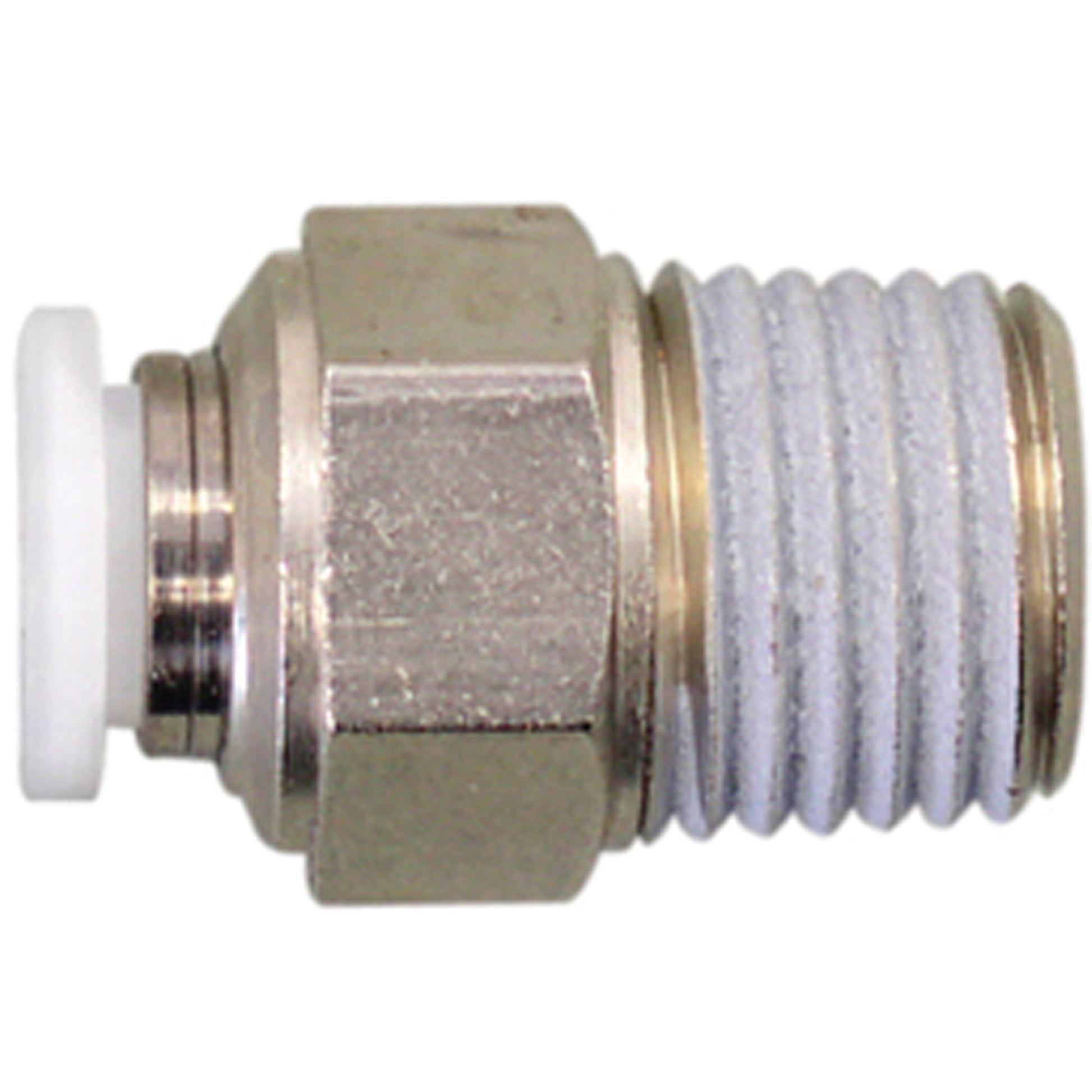

Straight Threaded Connector

• One-piece fitting saves over 75 % of assembly time compared to standard compression fittings
• Compact design allows fittings to be closely mounted
• No part of the fitting goes inside the tubing for maximum unrestricted airflow
• Wide release collar allows fast and trouble-free tubing removal
• Designed to resist multiple connections and disconnections with leak-free operations and solid tubing gripping
• Tubing diameter indicated on release collar
• Features recyclable, biodegradable, and/or recycled content

Specifications:
Material: Brass/Plastic
Diameter: 5/32"
Connection Type: Push-to-connect
Maximum Working Pressure: 150 PSI
Working Temperature: 0 to 60 °C
Thread (M): 1/8" NPT
