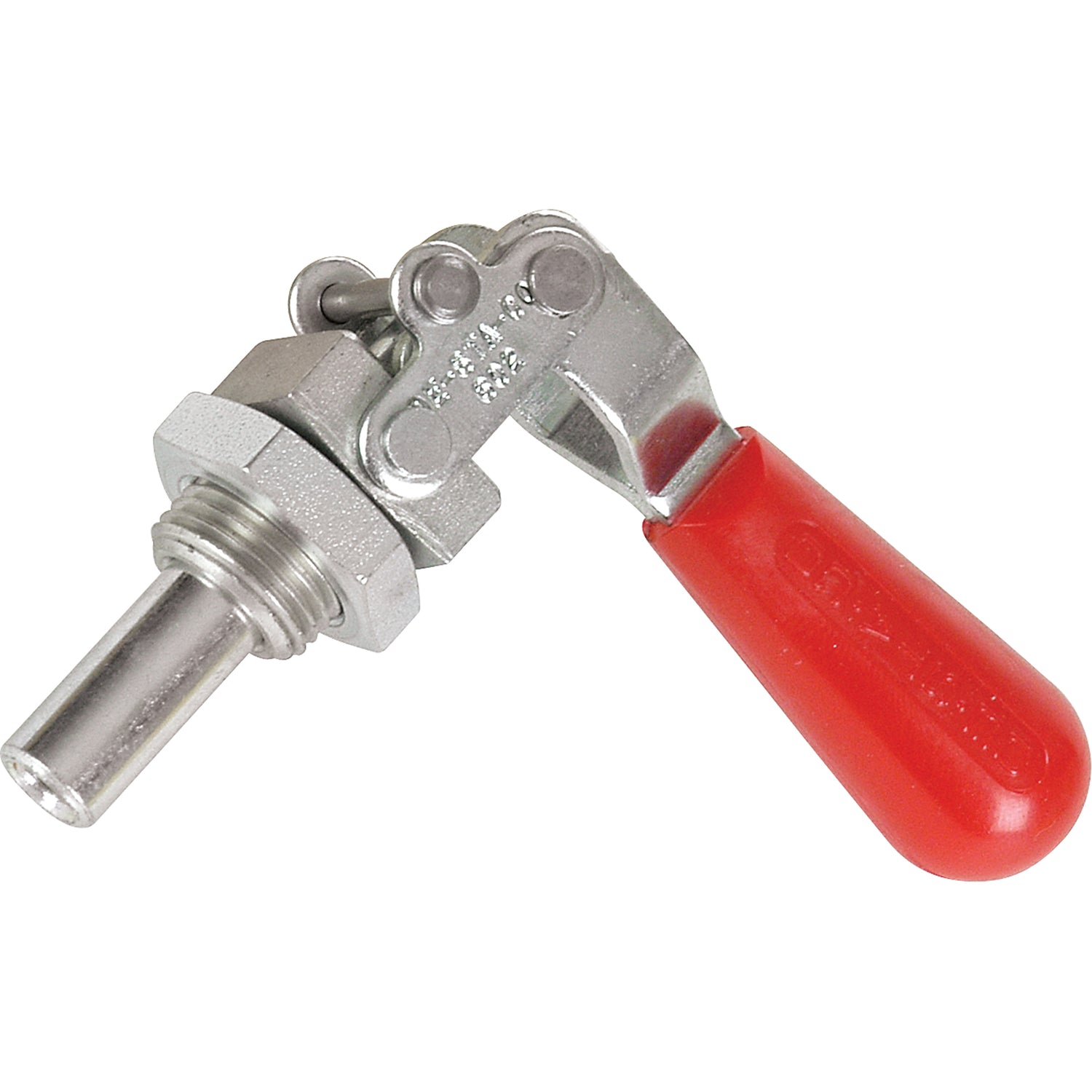

• Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. Fully retractable locators mount directly through a member by a jam nut on the work side or flush by drilling and tapping the member, a flat surface is not required. Locks in extended or retracted position. When flush-mounted, plunger completely retracts from work area.

Specifications:
Clamping Capacity: 1-1/2" (38.1 mm)
Clamping Force: 300 lbs.
Dimensions" A: 4.0625
Dimensions" B: 4.9375
Weight: 0.44 lbs.
