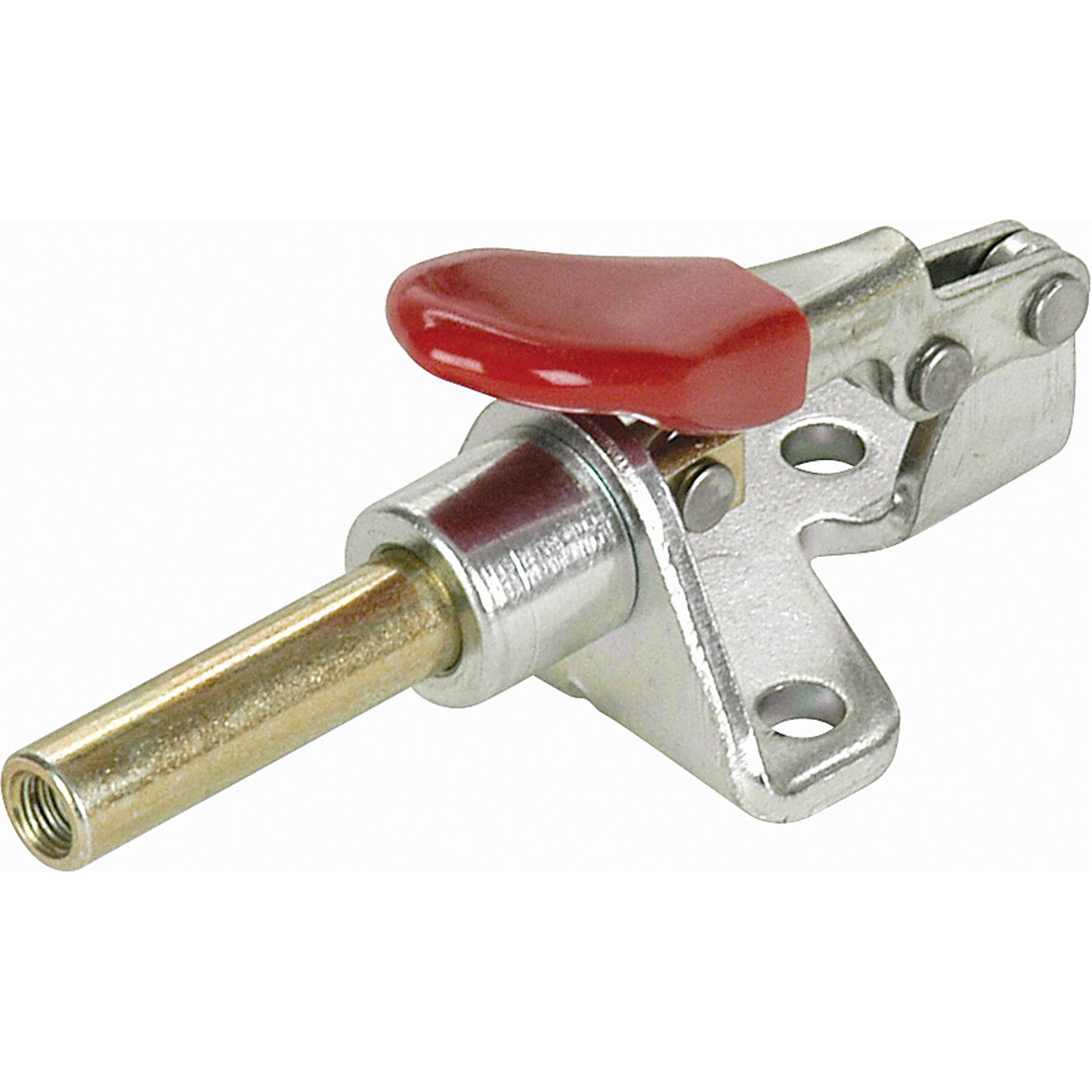

• Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. These models can be bolted or welded to a flat surface. Plungers extend out to clamp material against a fence or square surface. Model TN103 includes a 8-32 nylon spindle assembly (TN126). Model TN105 plunger is tapped for 5/16-18 adjustment spindle (not provided). Model TN107 plunger is tapped for 5/16-18 neoprene tip or other custom fixture.
• Weight

Specifications:
Clamping Capacity: 5/8" (15.875 mm)
Clamping Force: 100 lbs.
Dimensions" A: 1.25"
Dimensions" B: 2.84375
Dimensions" C: 1/2"
Base L" X W": 1 5/16 x 1 1/6
Weight: 0.09 lbs.
