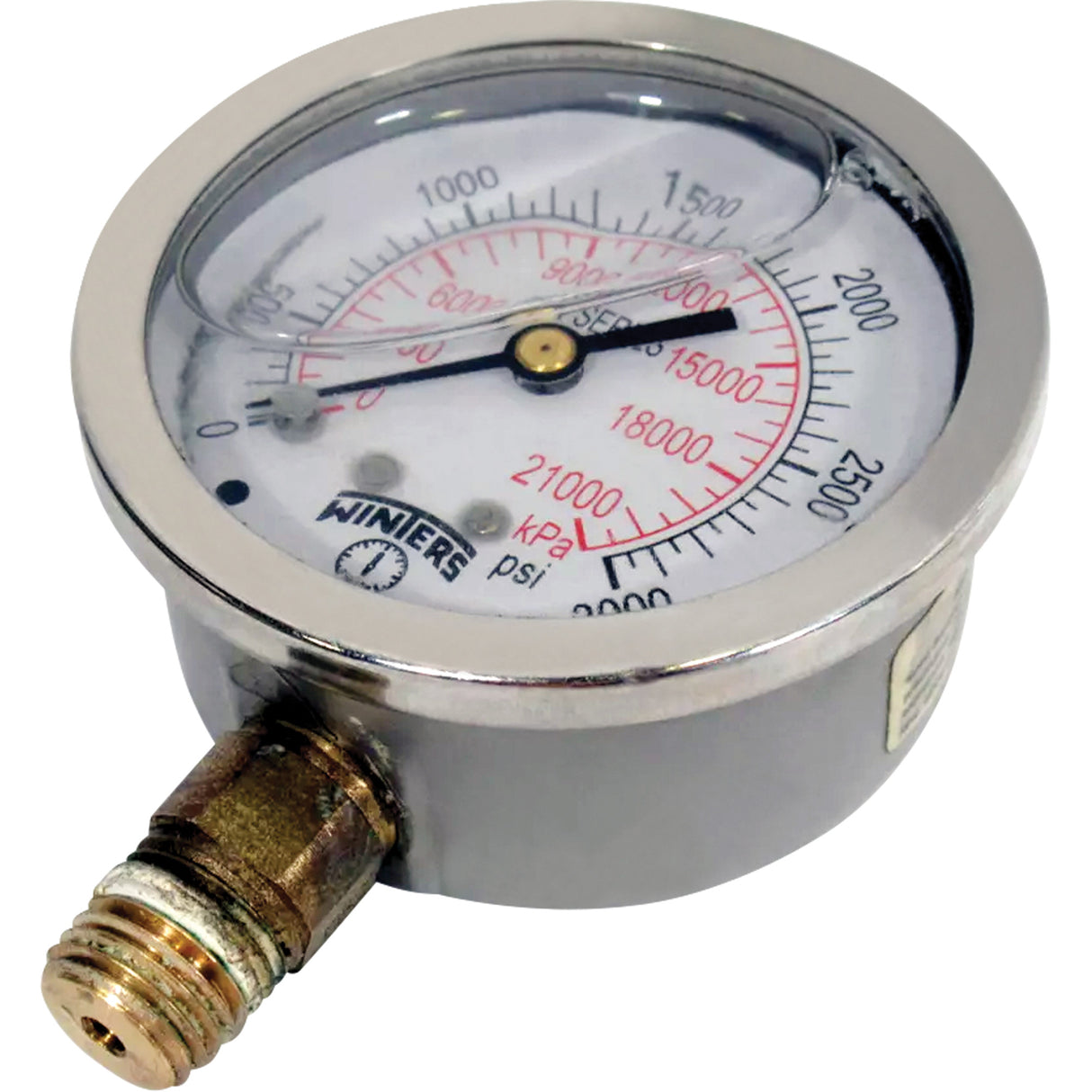

Stainless Steel Pressure Gauge, 2-1/2" , 0 - 3000 psi, Bottom Mount, Liquid Filled Analogue

• Pulsation-resistant, stainless steel pressure gauge has 0/3,000 psi/kPa
• Brass, lead-free brass or stainless steel internals
• Crimp-on bezel
• CRN registered
• Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
• Connection

Specifications:
Dial Diameter: 2-1/2"
Pressure Range: 0 - 3000 psi
Connection: Bottom Mount
Dial Type: Liquid Filled Analogue
Lens: Polycarbonate
Ring: AISI 304 SS, crimp-on
Connection: 0.44"-20 SAE
Fill Liquid: Glycerin
Bourdon Tube: C-shaped for pressures up to and including 600 psi, spiral for pressures above 1,000 PSI
Ambient/Process Temperature: Dry: -40 to 200°F (-40 to 93°C), Glycerin filled: -4 to 150°F (-20 to 65°C)
Accuracy: ±1.5% of full scale
Enclosure Rating: IP65
Working Pressure: Maximum 75% of full-scale value
