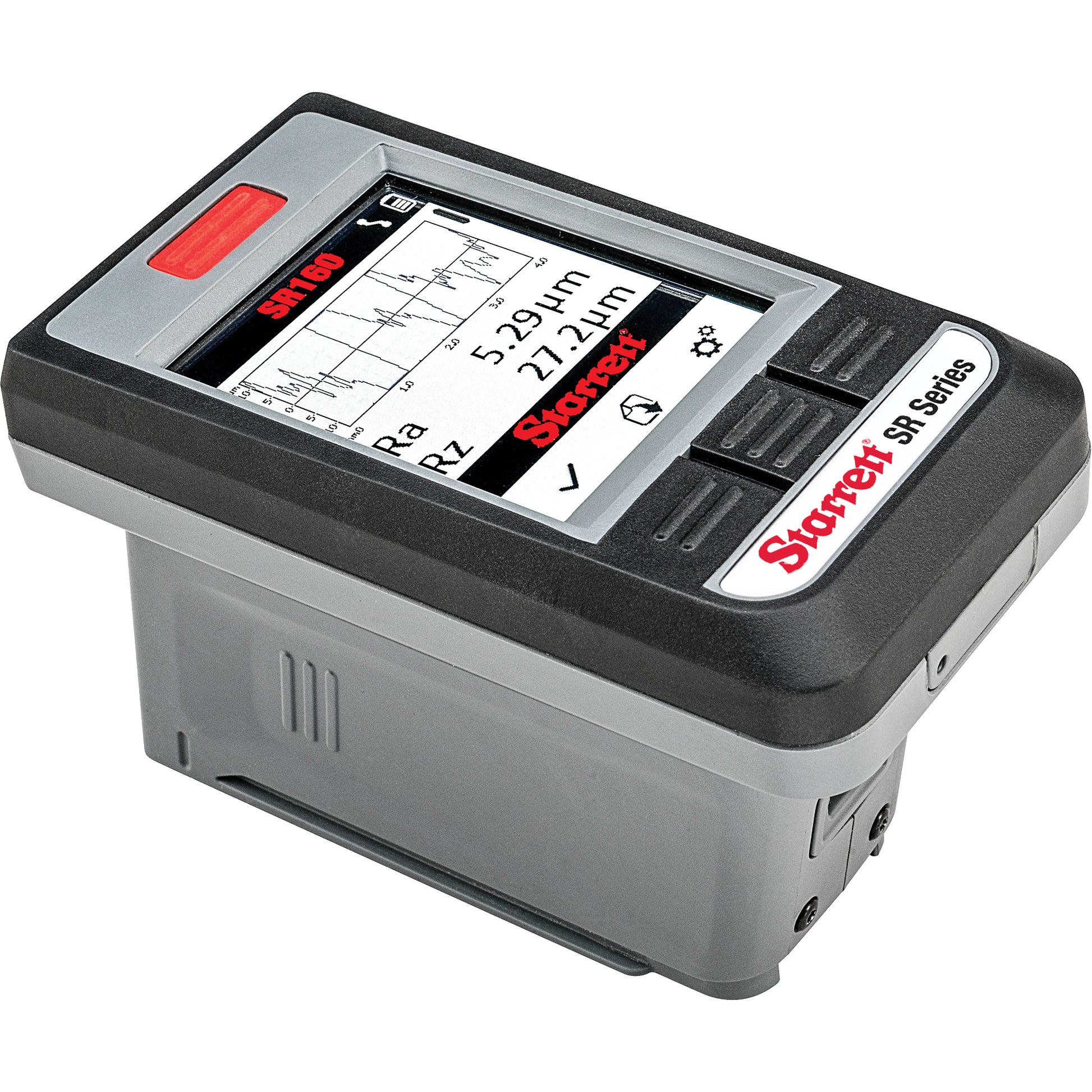

SR Series Surface Roughness Tester

• Tactile measurement button is great for challenging orientations
• Two-piece construction with Bluetooth low energy connectivity
• Hard wearing, protected piezo-electric pick-up stylus with diamond tip assures very reliable measurement
• Rubberized molding and mylar screen enhance durability and grip
• Profile graph
• Simple navigation
• Measuring Range
• Splits into a display/control unit and traverse unit via a slide and lock mechanism

Specifications:
Type: Surface Roughness Tester
Display: Digital
Filter: Gaussian
Roughness Parameters: Ra,Rz,Rp,Rv,Rt,Rz1Max,Rsk,Rq,Rku,Pa,Pz,Pp,Pv,Pt
Accuracy: 5% of reading + 4 micro-in. (0.1 micron)
Cutoff Lengths: 0.8 mm
Measuring Range: 1600 micro-in. (40 microns)
