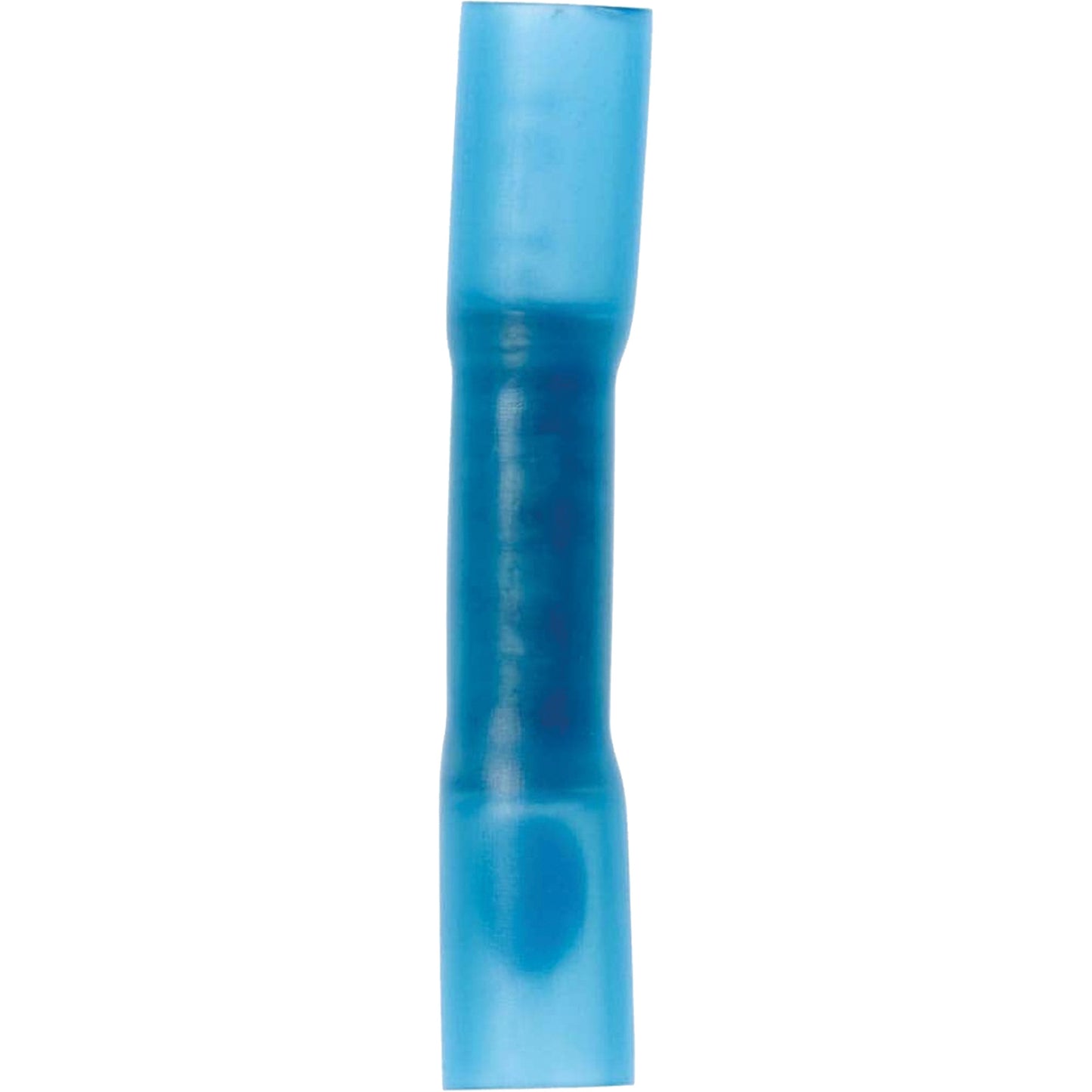

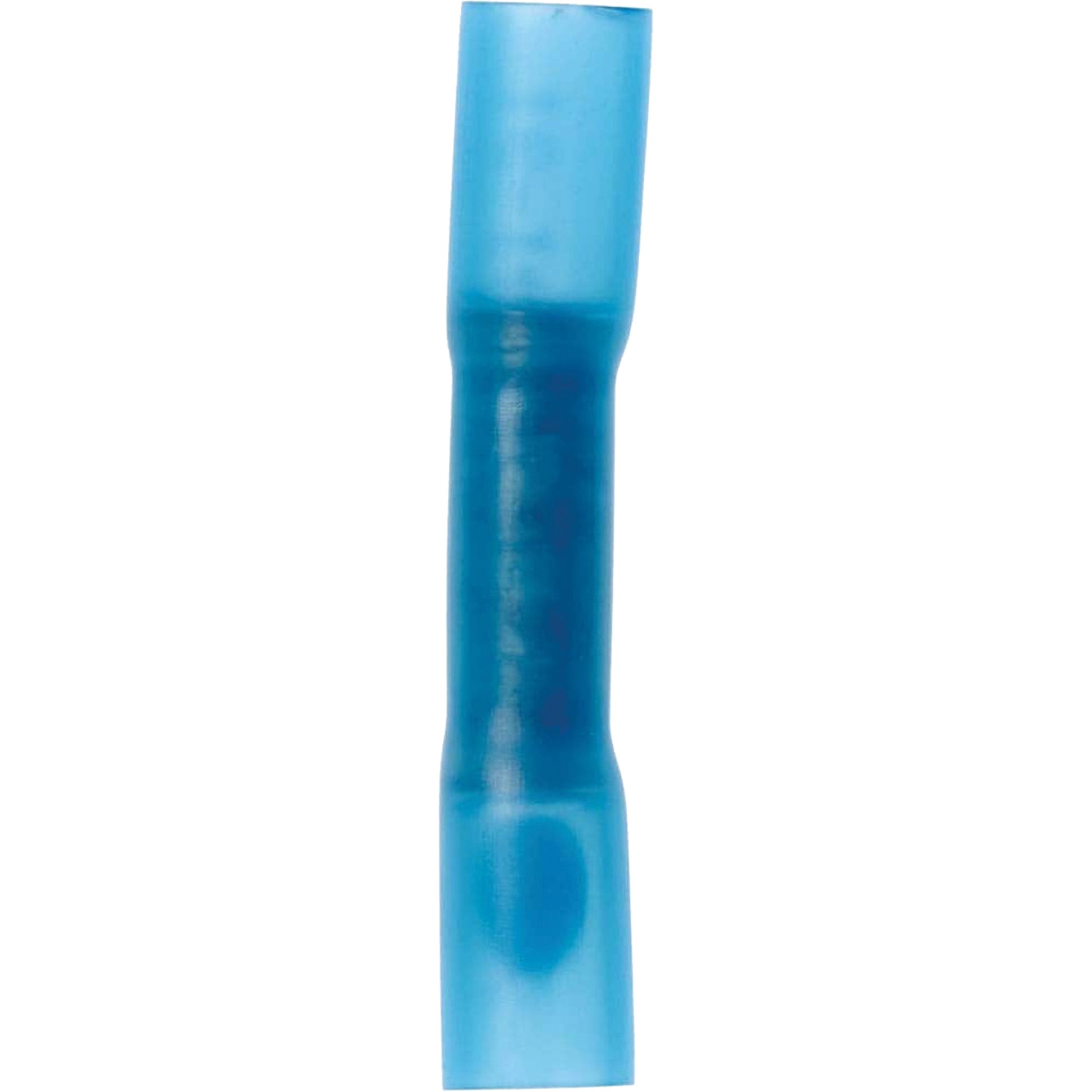

Scotchlok™ Butt Connector MH14BCX

• Corrosion resistance to water, salt, steam and other related contaminants
• Seamless barrel uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
• Built-in wire stop for correct positioning
• Accommodates wire sizes 16 to 14 AWG
• When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications:
Colour: Blue
Max. Operating Temperature: 221°F (105°C)
Maximum Conductor Size: 14 AWG
Minimum Conductor Size: 16 AWG
Barrel Inside Diameter: 0.095"
Body Material: Copper Alloy
