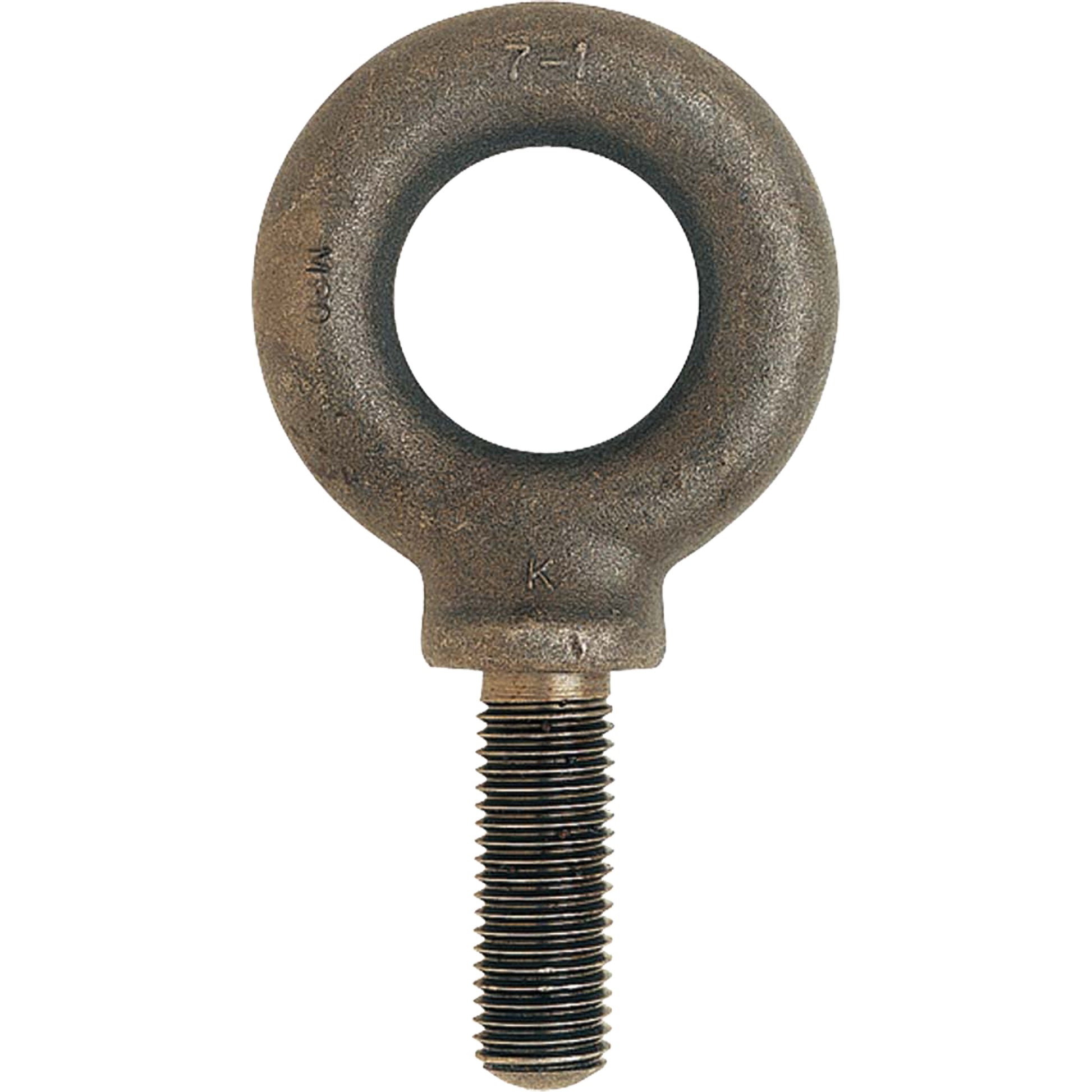

SAE Eyebolt, 1-1/4" Dia., 1-5/8" L, 3200 lbs. (1.6 tons) Capacity

• Forged from bar quality fine grain C1030 / C1035 steel bar
• Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls
• Outer Eye Diameter

Specifications:
Working Load Limit: 3200 lbs. (1.6 tons)
Eye Diameter: 1-1/4"
Shank Length: 1-5/8"
Body Style: With Shoulder
Shank Threading: Fully Threaded
Thread Size: 9/16"-12
Outer Eye Diameter: 2-5/16"
Overall Length: 4-1/2"
Net Weight: 0.51 lbs.
