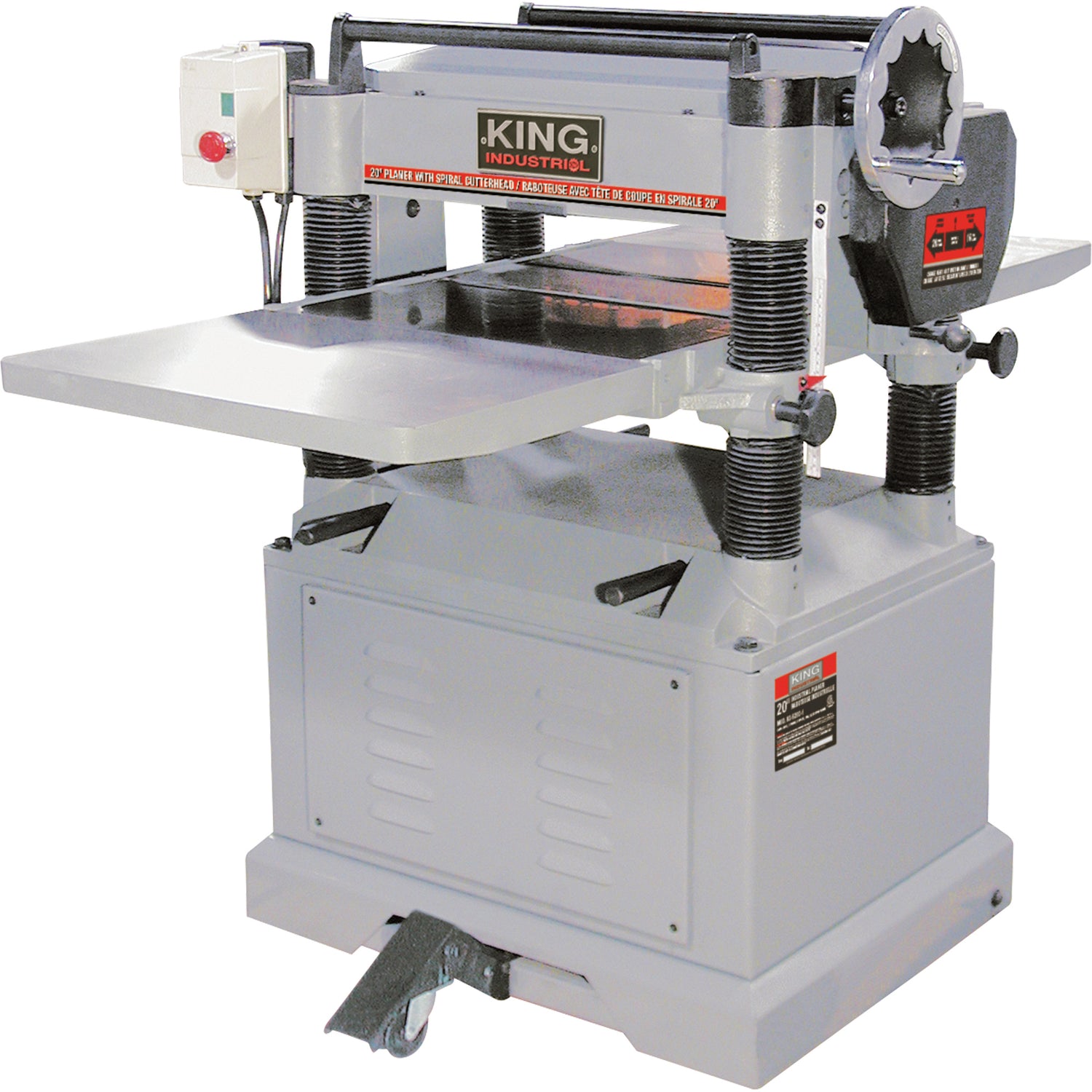

Planer with Spiral Cutterhead, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed
Planer with Spiral Cutterhead, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Description
Description
• Powerful 5 HP motor
• Solid cast-iron extension tables
• Mobile base system built into cabinet
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Table raises and lowers on four precision ground columns
• Anti-kickback fingers in front of the infeed roller prevents wood kickback
• Total Surface Of Work Table
• Includes: Knife setting gauge, 5" dust chute
Specifications:
Overall Width: 56-1/2"
Overall Length: 40"
Overall Height: 42"
No Load Speed: 5000 RPM
Max. Planing Thickness: 8"
Max. Depth Of Cut: 3/32"
Total Surface Of Work Table: 56-1/2" x 20"
Cutterhead Diameter: 3.15"
Number Of Knives: 98 (14 x 14 x 2 mm)
Feed Rate: 2 (16-20) FPM
Number Of Cuts/Inch: 104-83
Motor: 19 Amps
Voltage: 220 V, 1 Phase, 60 Hz
