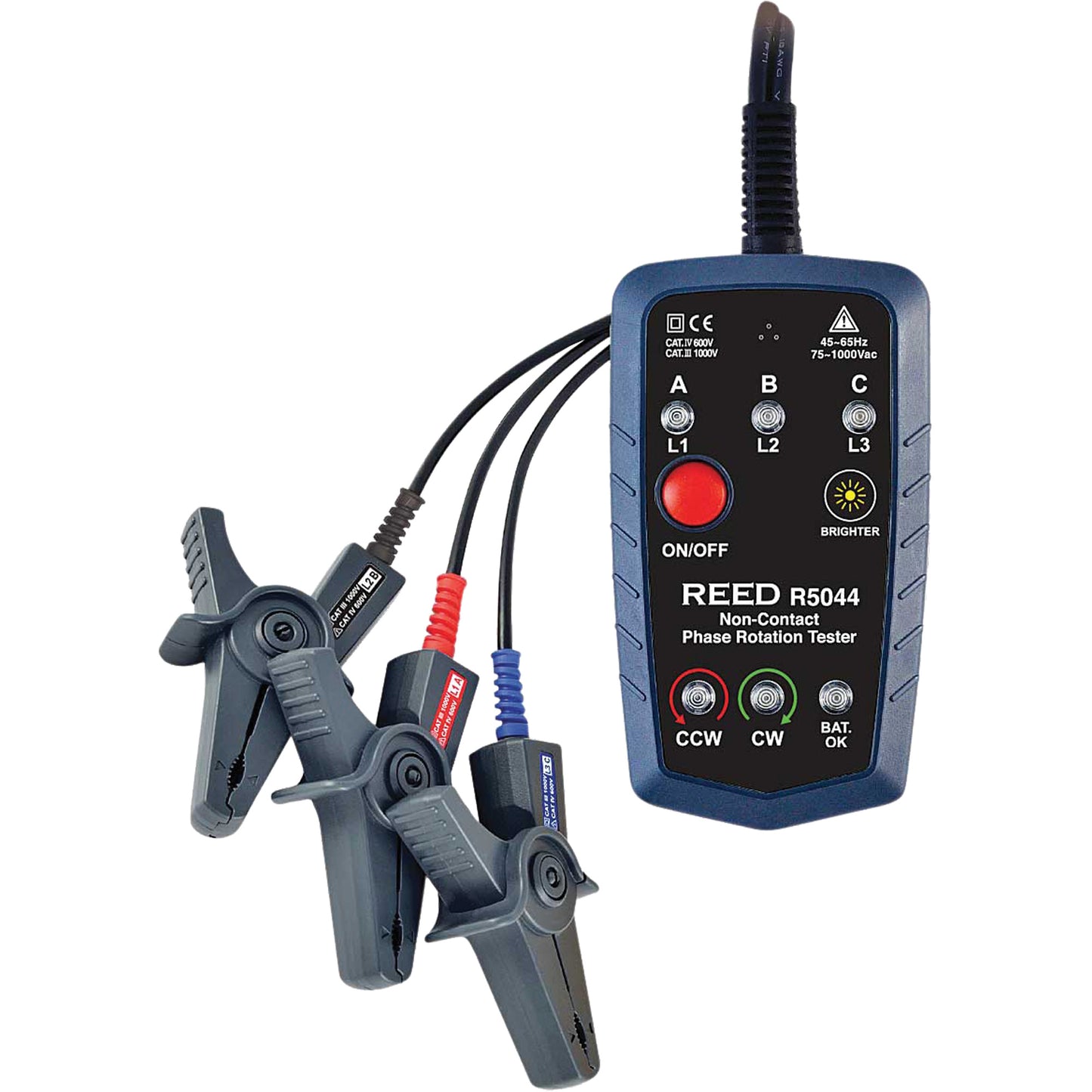

Non-Contact Phase Rotation Tester with ISO Certificate

• Non-contact voltage sensing alligator clips promote safety
• Colour-coded leads (red, black, blue) meet IEC 60446 standards
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
• Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
• Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
• Durable housing with magnets frees hands and allows for easy measurement
• Power Supply
• Includes: (1) Rotation tester, (1) ISO Certificate with full Data and Uncertainties, (3) Colour-coded cables with alligator clips, (1) 9V Battery, (1) Soft carrying case

Specifications:
Display Type: Digital
No. Of Phases: 3
Voltage Detection Method: Static Induction
Voltage Range: 75 - 1000 VAC
Frequency: 45 - 65 Hz
Indicators: Audible (Buzzer) / Visual (LED)
Power Supply: 9V Battery
Overvoltage Category: CAT. III 1000V, CAT. IV 600V
Cable Length: 31.5" (800 mm)
Alligator Clip Jaw Opening: 1.18" (30 mm)
