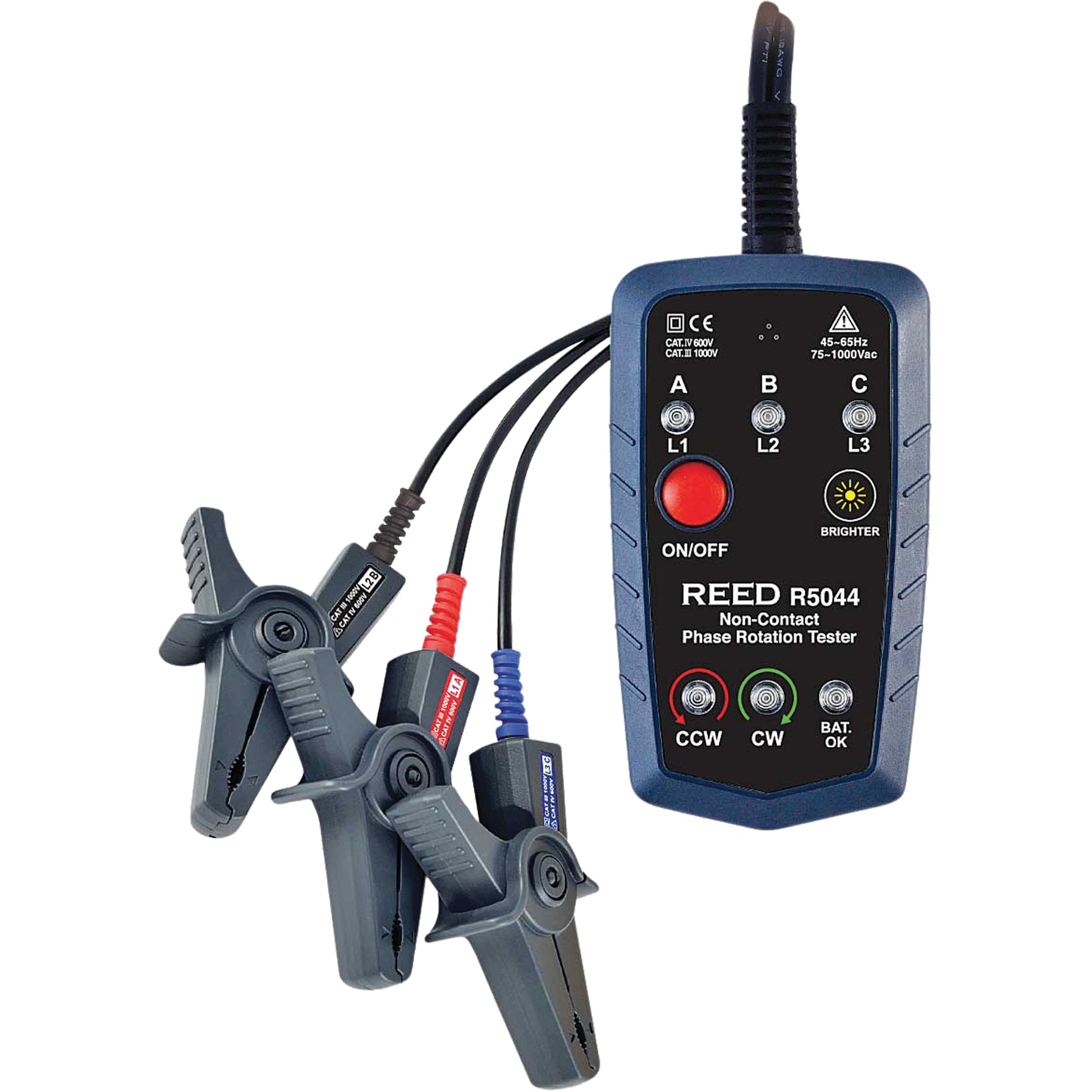

Non-Contact Phase Rotation Tester

• Non-contact voltage sensing alligator clips promote safety
• Color-coded leads (red, black, blue) meet IEC 60446 standards
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
• Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
• Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
• Durable housing with magnets frees hands and allows for easy measurement
• Power Supply
• Includes: Rotation tester, 3 x color coded cables with alligator clips, battery and soft carrying case

Specifications:
Display Type: Digital
No. Of Phases: 3
Voltage Detection Method: Static Induction
Voltage Range: 75 to 1000VAC
Frequency: 45 to 65Hz
Indicators: Audible (Buzzer)/ Visual (LED)
Power Supply: 9V battery
Overvoltage Category: CAT. III 1000V, CAT. IV 600V
