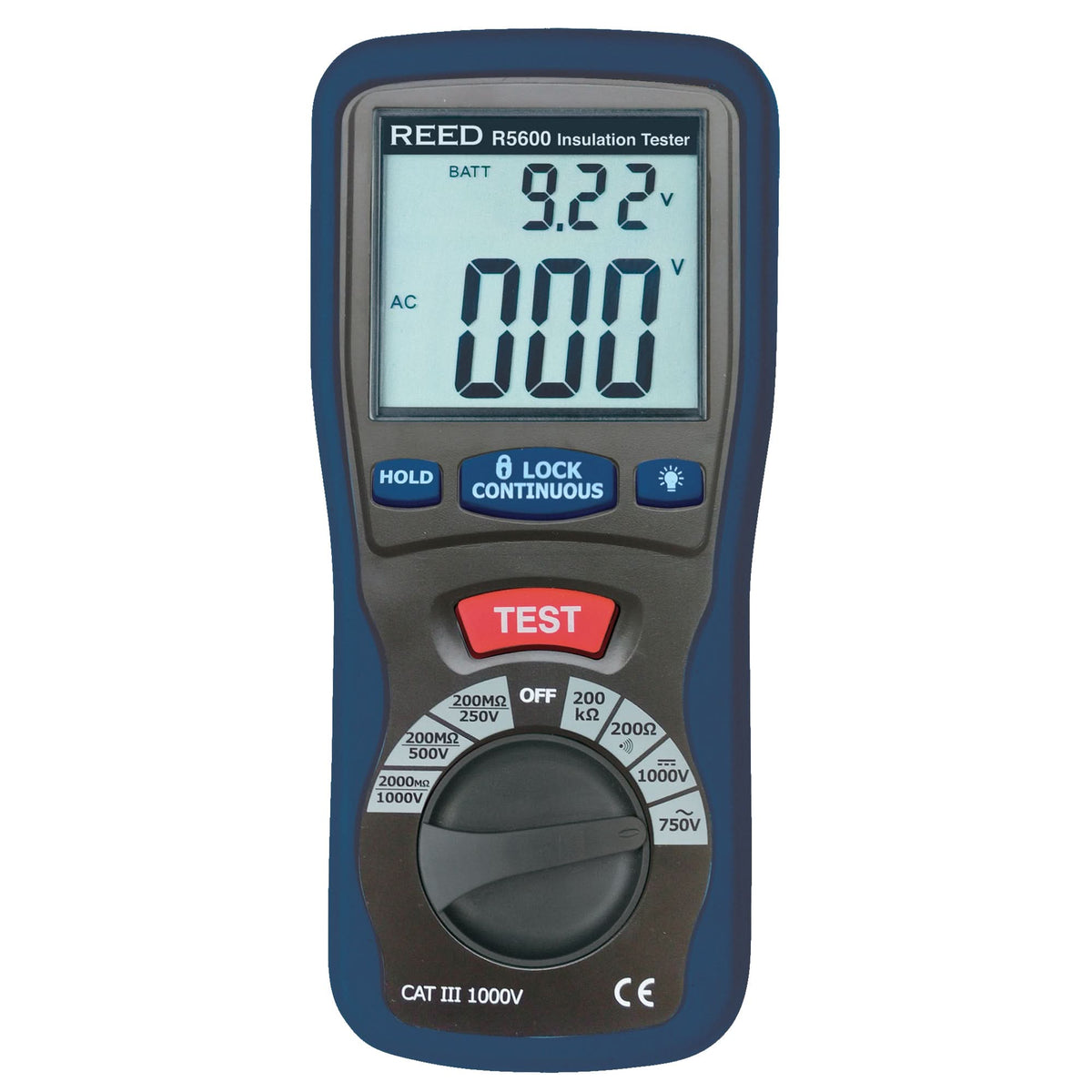

Multi-Function Insulation Tester, Digital

• Double molded plastic housing for added protection
• Backlit dual displays insulation resistance and test voltage simultaneously
• Lock function and hanging strap for hands-free operation
• Lo Ω function for testing connections
• Datahold function
• Low battery indicator and auto shut off
• Meg OHMS Accuracy

Specifications:
Display Type: Digital
Voltage Ranges: 250V, 500V, 1000V
Voltage Accuracy: DC ±(0.8% rdg. + 3 dgt.), AC ±(1.2% rdg. + 10 dgt.)
OHMS Measurement Ranges: 200 Ω, 2000 Ω
OHMS Accuracy: ±(1.0% rdg. + 2 dgt.)
Meg OHMS Ranges: 200MΩ/250V, 2000MΩ/500V, 0-1000MΩ/1000V, 1000-2000MΩ/1000V
Meg OHMS Accuracy: ±(3.0% rdg. + 5 dgt.)
Range Selection: Autoranging & Manual
Sampling Time: 2.5 times/sec.
Continuity Check: Audible Signal if Resistance ≤40Ω
