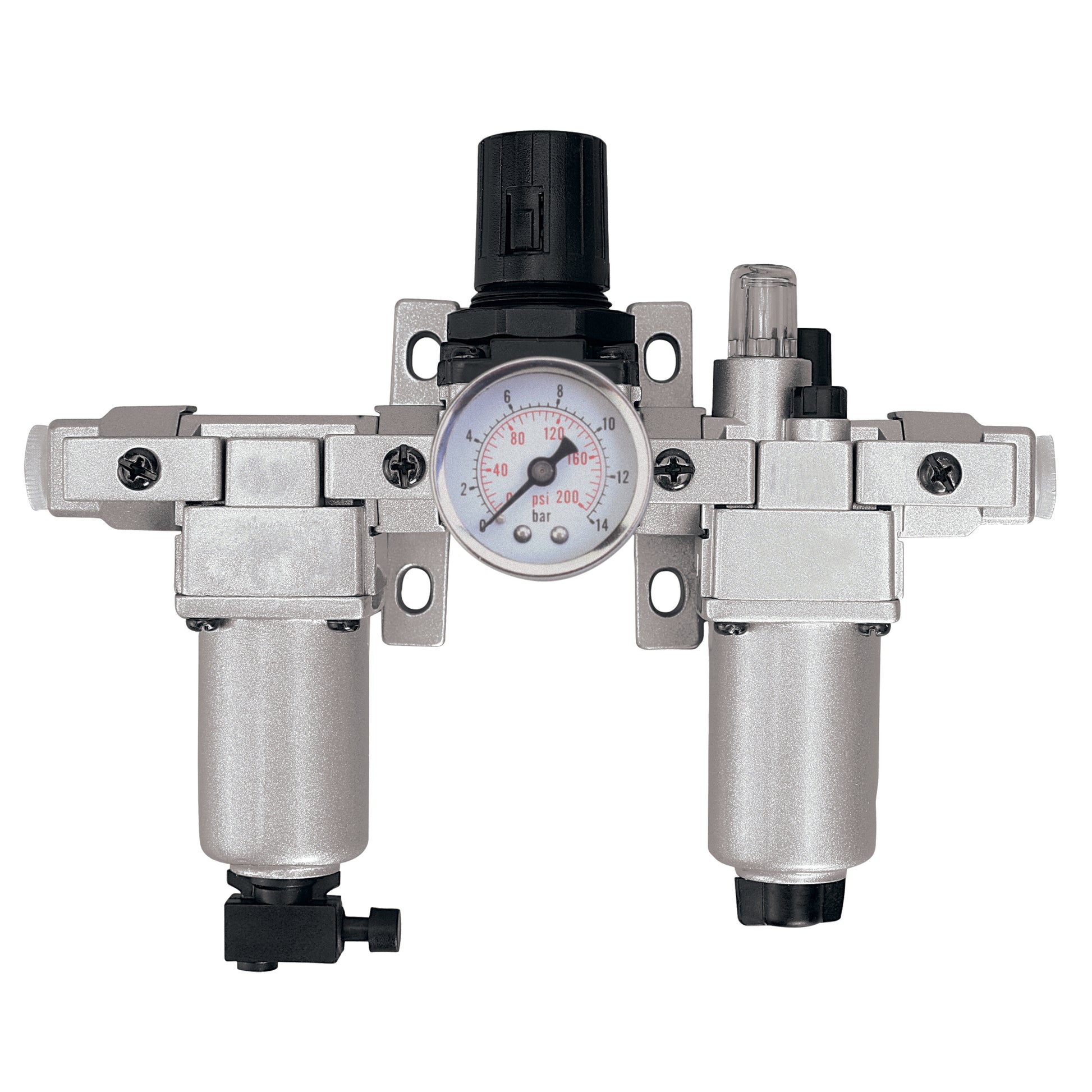

Modular Filter, Regulator & Lubricator (Gauge Included), 3/4" NPT

• Assembly of all three individual components
• Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
• Comes complete with wall mounting bracket
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Lubricator Bowl Capacity
• Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow

Specifications:
Connection Size: 3/4" NPT
Max. Air Flow: 123 SCFM @ 105 PSI
Operating Pressure: 7-145 PSI
Bowl Material: Metal
Bowl Capacity: 6.8 fl. oz.
Filter Bowl Capacity: 5.60 oz.
Lubricator Bowl Capacity: 6.80 oz.
Series: FRL400
Manufacturer's Warranty: 1 Year Limited
