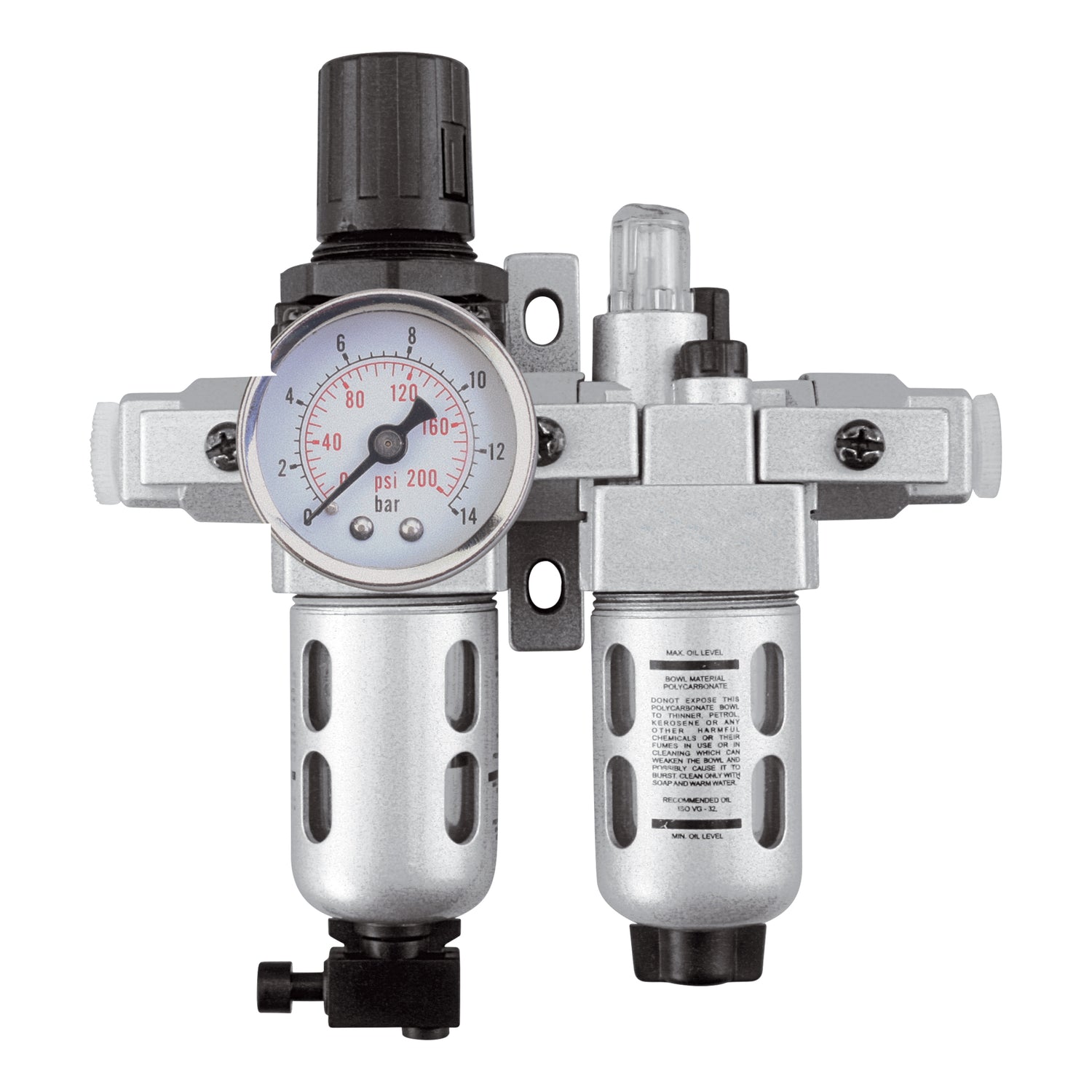

• Space-saving, two-piece combination is a popular air preparation unit
• Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
• Come complete with a wall mounting bracket
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Lubricator Bowl Capacity
• Fog/Micro Mist type lubricator, up to 50' pipe runs

Specifications:
Connection Size: 1/4" NPT
Max. Air Flow: 18 SCFM @ 105 PSI
Operating Pressure: 7-145 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 0.68 fl. oz.
Filter Bowl Capacity: 0.30 oz.
Lubricator Bowl Capacity: 0.68 oz.
Series: FRL100
Manufacturer's Warranty: 1 Year Limited
