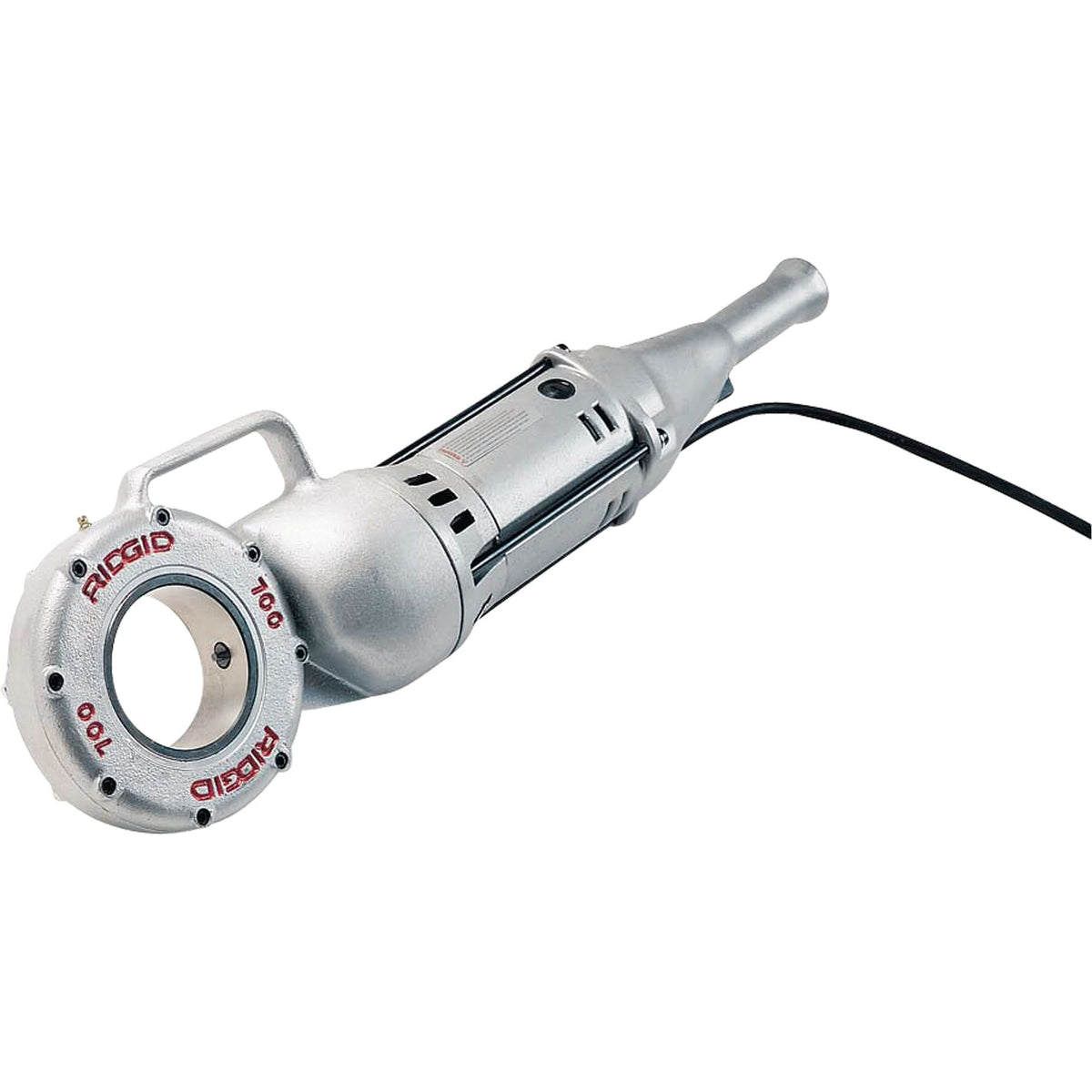

Model 700 Power Drive, 28 RPM, 1/2" - 2" Pipe Thread

• Heavy-duty hand-held power drive
• Features reversible 230 V universal motor
• Capacity: 1/8"-2" (3 mm-50 mm) pipe; designed for RIDGID® No. 12R die heads. Other RIDGID® die heads (OOR, OORB, 11R) using adapters, threading 2 1/2" through 6" (62 mm-150 mm) with 141/161 geared threaders
• CSA approved
• Approved to UL standards (NRTLC); ; TECHNICAL SPECIFICATIONS:; Motor:230 V, 25-60 Hz; Switch:Double-throw reversible; Gear Head:All-spur gear reduction, spring-loaded adapter pawl, hardened steel spindle gear; Body:Cast aluminum; Spindle Speed:32 RPM (no load); Capacity:1/8"-2" pipe (30 mm-50 mm), 1/4"-1" (6 mm-25 mm) bolt (using OO-RB); Weight:25 lbs. (11 kg) power drive only; Length:28 1/4" (71.7 cm)
• Maximum Geared Threader In.

Specifications:
Spindle Speed: 28 RPM
Pipe Threading Capacity: 1/2" - 2"
Rod Threading Capacity: 1/4 "- 1"
Weight: 22.2 lbs.
Voltage: 230
Frequency Hz: 50-60
Maximum Geared Threader In.: 6
Maximum Geared Capacity Mm: 150
Weight: 25 lbs.
