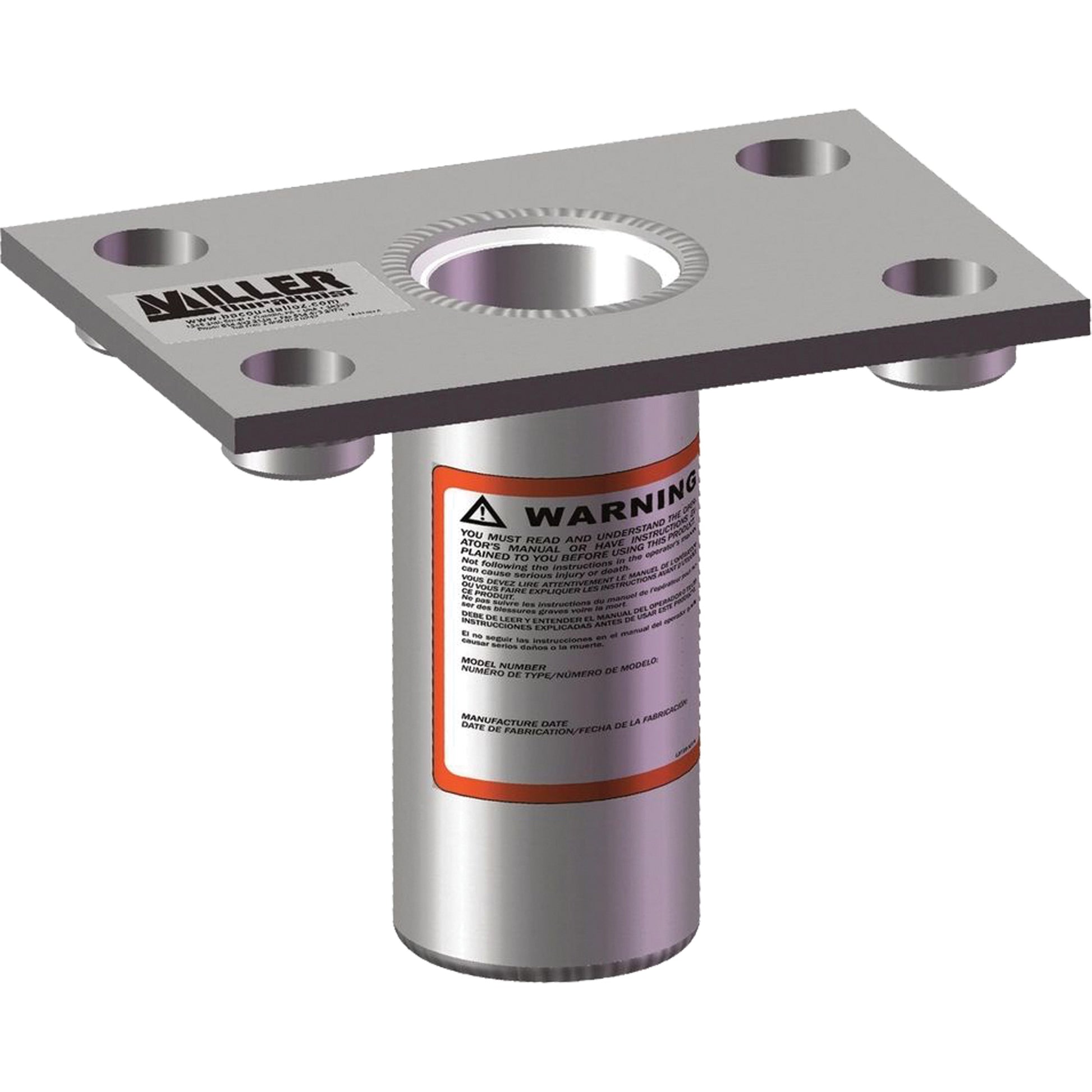

Miller® Flush Floor Mount Sleeve

• Mounts to horizontal concrete or steel structures
• Includes PVC sleeve liner
• Rated capacity of 450 lbs./204 kg working load limit @ minimum 4:1 Design Factor
• Mast Moment Proof Load

Specifications:
Base Material: A-36 Steel Plate
General Construction: Welded Mild Steel
Weld Certification: AWS
Material Structure: Sch.40 Pipe
Sleeve Bearing Material: PVC Pipe
Thrust Bearing Material: High Density Polyethylene
Mast Moment Proof Load: 90,000 in-lbs (10,200 N.m)
Mast Rotation: 360°
Weight: 24 lbs. (10.9kg)
