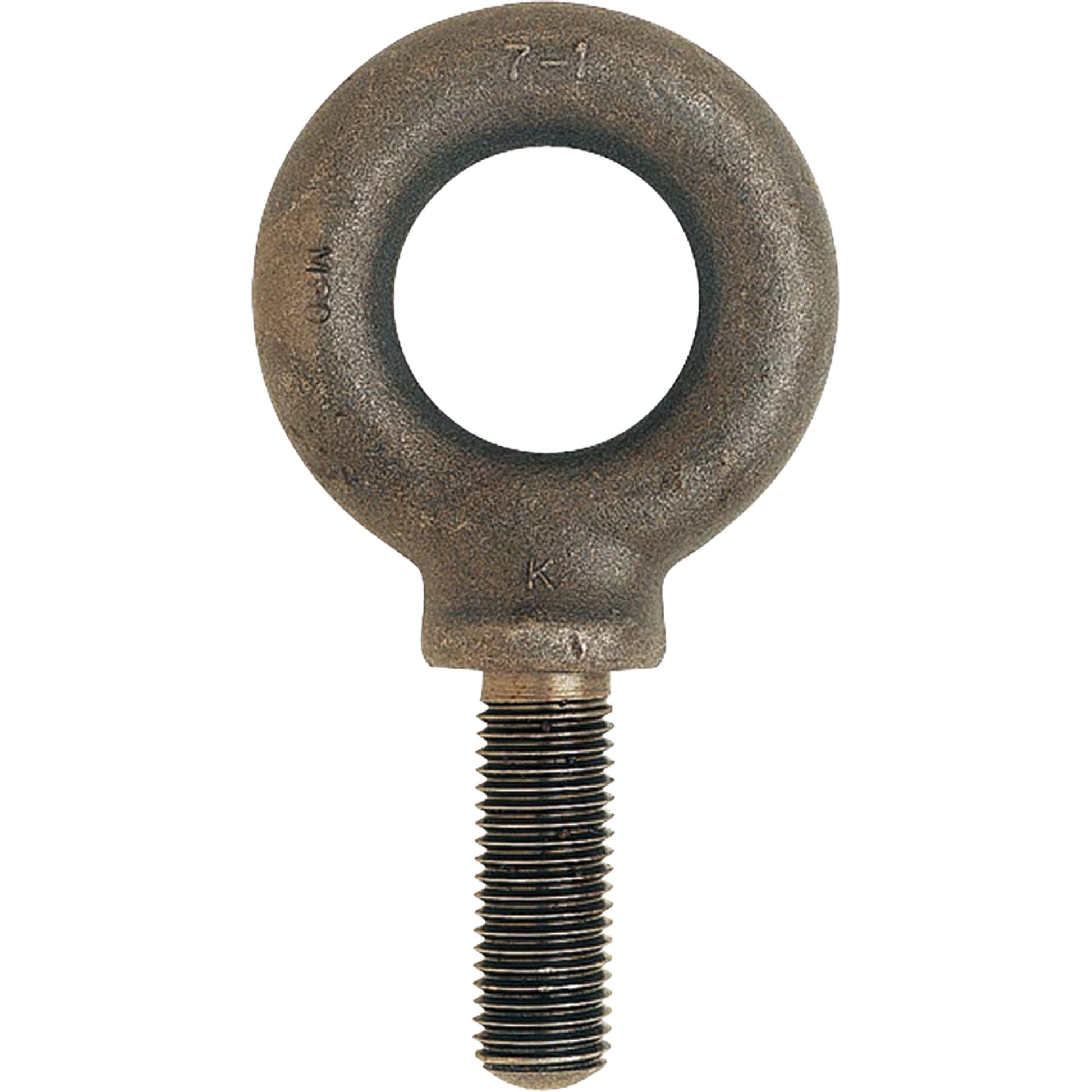

Metric Eyebolt, 27 mm Dia., 35 mm L, 1628 lbs. (0.814 tons) Capacity

• Forged from bar quality fine grain C1030 / C1035 steel bar
• Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls
• Outer Eye Diameter

Specifications:
Working Load Limit: 1628 lbs. (0.814 tons)
Eye Diameter: 27 mm
Shank Length: 35 mm
Body Style: With Shoulder
Shank Threading: Fully Threaded
Thread Size: M10 x 1.5 UNC-2A
Outer Eye Diameter: 46 mm
Overall Length: 90.5 mm
Net Weight: 0.24 lbs.
