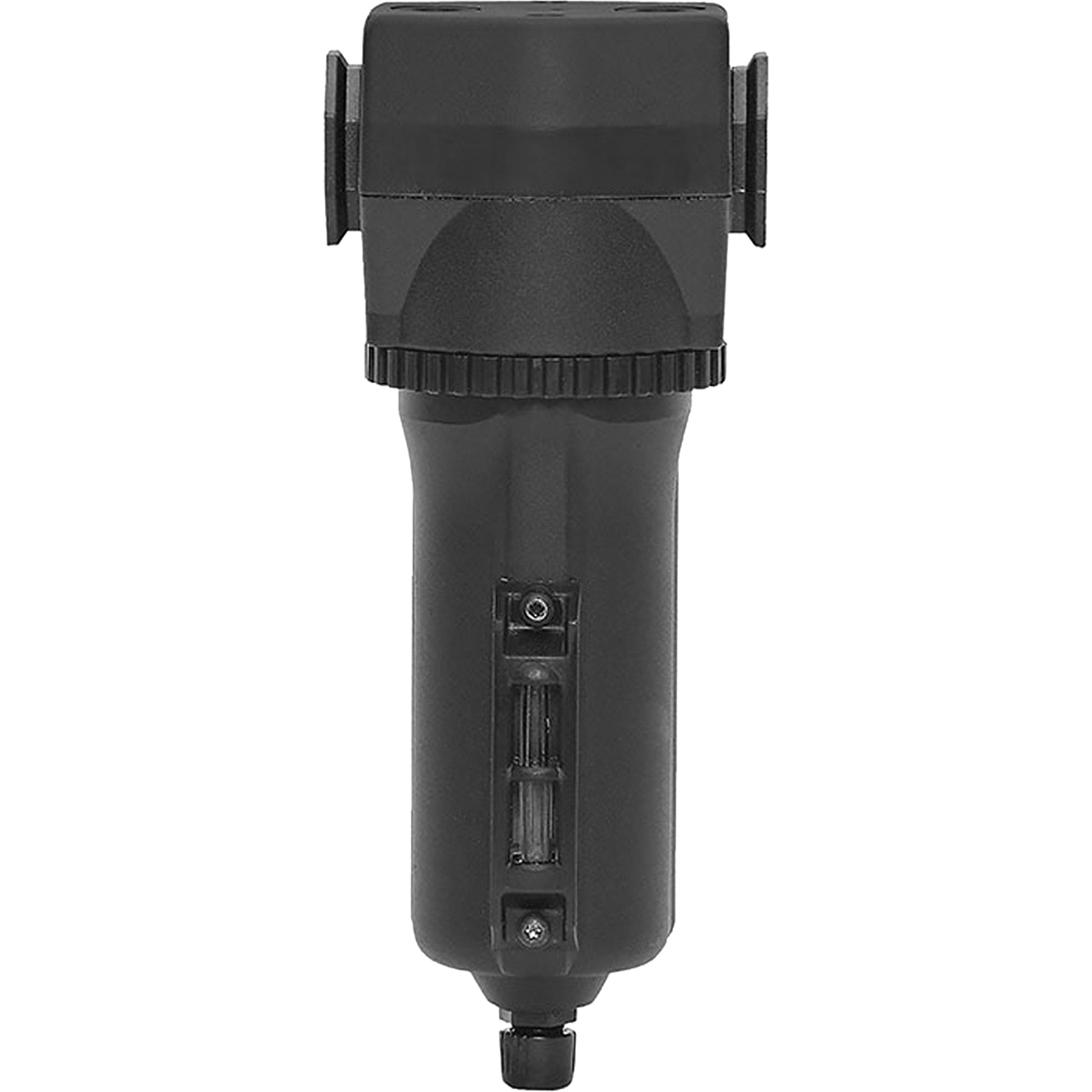

Manual Drain with Metal Bowl Modulair 400, In Line/Modular, 1/2" NPT, Manual Drain, For Water

• High performance
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Front mounted clamping design with encapsulated screws
• Features modular or in line mounting capabilities
• Features recyclable, biodegradable, and/or recycled content
• Max. Air Flow

Specifications:
Connection Size: 1/2" NPT
Max. PSI: 250 PSI
Drain Type: Manual
Type: In Line/Modular
Material Filtered: Water
Filtration Size (Microns): 5 Micron
Max. Air Flow: 130 SCFM @ 100 PSI
Ambient Temperature: 4 to 79 °C
Bowl Capacity: 270 ml
Bowl Material: Aluminum, Clear Nylon Sight Glass
