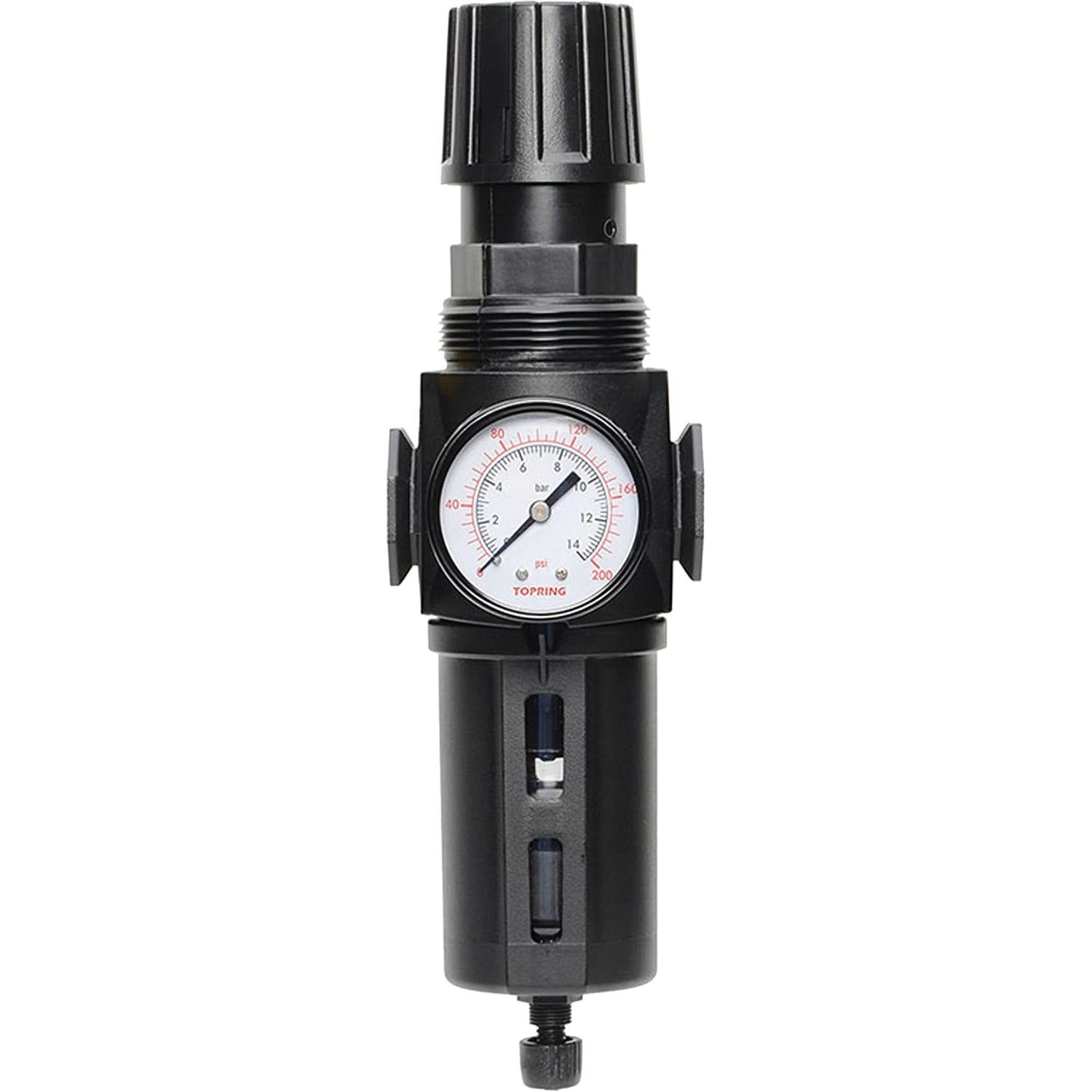

Manual Drain Filter/Regulator with Standard Bowl Modulair 300, 1/4" NPT, 150 PSI, 5.1 fl. oz. Capacity

• High performance
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Front mounted clamping design with encapsulated screws
• Features modular or in line mounting capabilities
• Superior pressure regulation — diaphragm type regulator
• “Push-pull” adjustment knob

Specifications:
Connection Size: 1/4" NPT
Max. Air Flow: 20 SCFM @ 100 PSI
Max. PSI: 150 PSI
Bowl Capacity: 5.1 fl. oz.
Ambient Temperature: 4 to 52 °C
Panel Mount Hole Size: 52 mm
