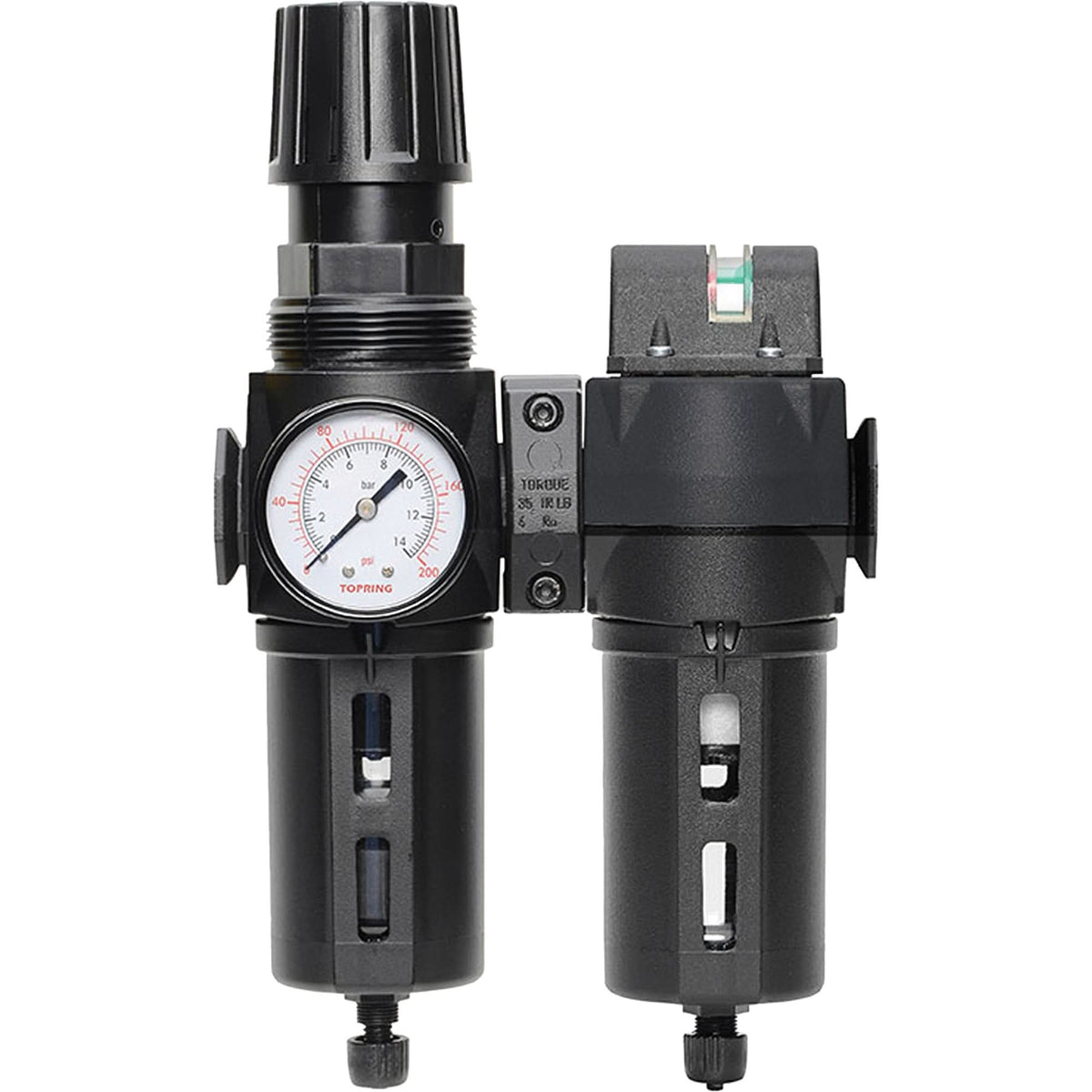

Manual Drain Filter, Regulator & Coalescing Filter with Standard Bowl Modulair 300, 1/4" NPT, 150 PSI, 5.1 fl. oz. Capacity

• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Coalesing filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
• Coalesing filter with differential pressure gauge to indicate when coalescing filter element needs changing
• Superior pressure regulation — diaphragm type regulator
• Self-relieving design regulator
• Features recyclable, biodegradable, and/or recycled content

Specifications:
Connection Size: 1/4" NPT
Max. PSI: 150 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 5.1 fl. oz.
Ambient Temperature: 4 to 52 °C
Filtration: 5 Micron
