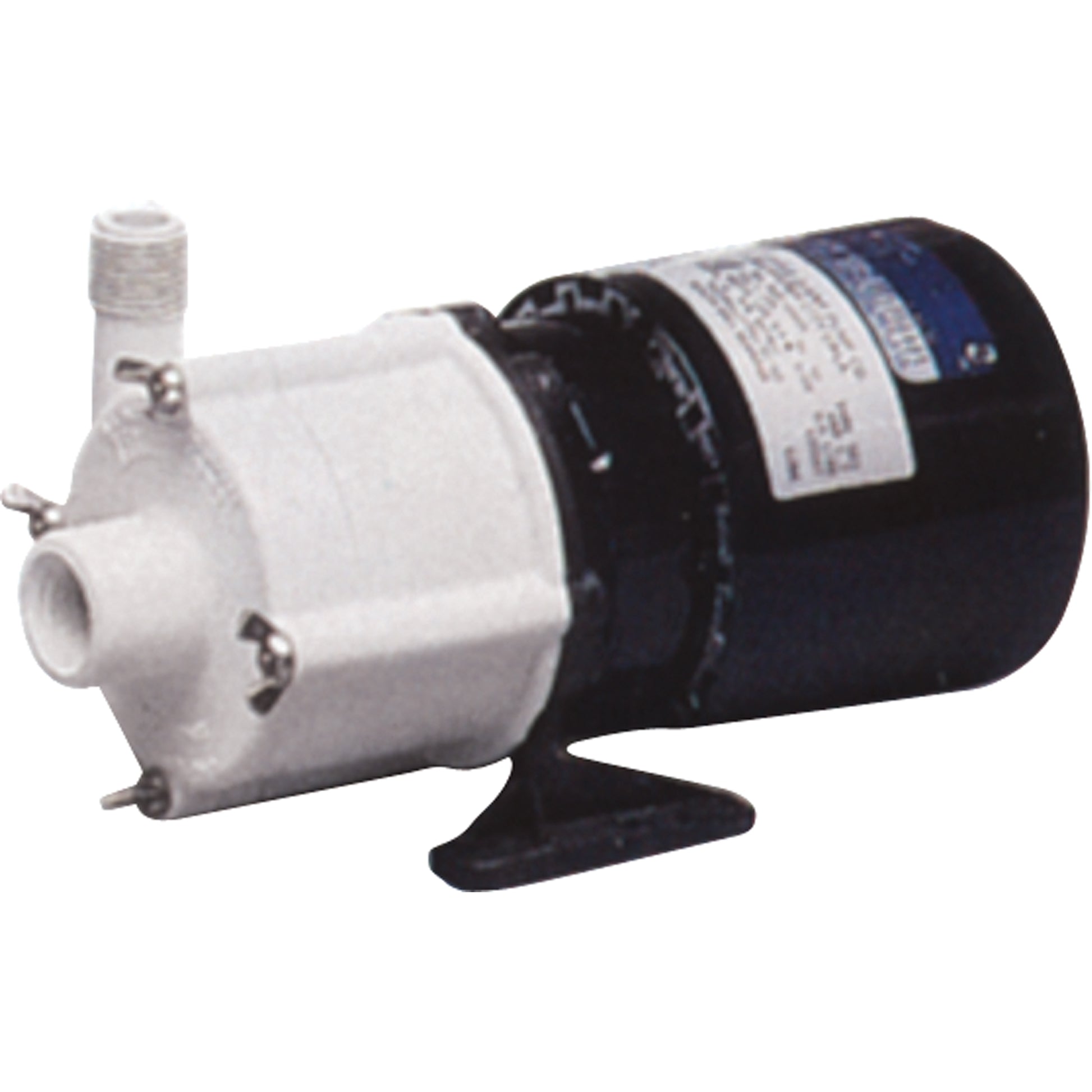

Magnetic-Drive Pumps - Industrial Mildly Corrosive Series

• Leak proof, sealless magnetic drives and designed for in-line, non-submersible use
• Pumping heads are easily rotated, cleaned or serviced with no special tools required
• Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump
• Thermally protected, open, shaded-pole motor (DA356) - fan cooled motor (DA346, DA349)
• Sleeve bearings (DA356, DA346), ball bearing (DA349)
• 3' lead wires without plug (DA356), 6' power cord with 3-prong plug (DA346, DA349)
• Performance (GPM@Head) 3'
• Fluid temperature to 150°F, ambient air temperature to 77°F

Specifications:
Intake Size: 1/2"
Discharge Port Size: 6"
Motor: 1.2 HP
Amps: 1.4
Watts: 105
Performance (GPM@Head) 1': 9.8
Performance (GPM@Head) 3': 9.1
Performance (GPM@Head) 6': 8.2
Performance (GPM@Head) 9': 6.5
Performance (GPM@Head) 15': 2.5
Shut Off Feet: 16.1
Shut Off PSI: 7
Wt. Lbs.: 7.5
