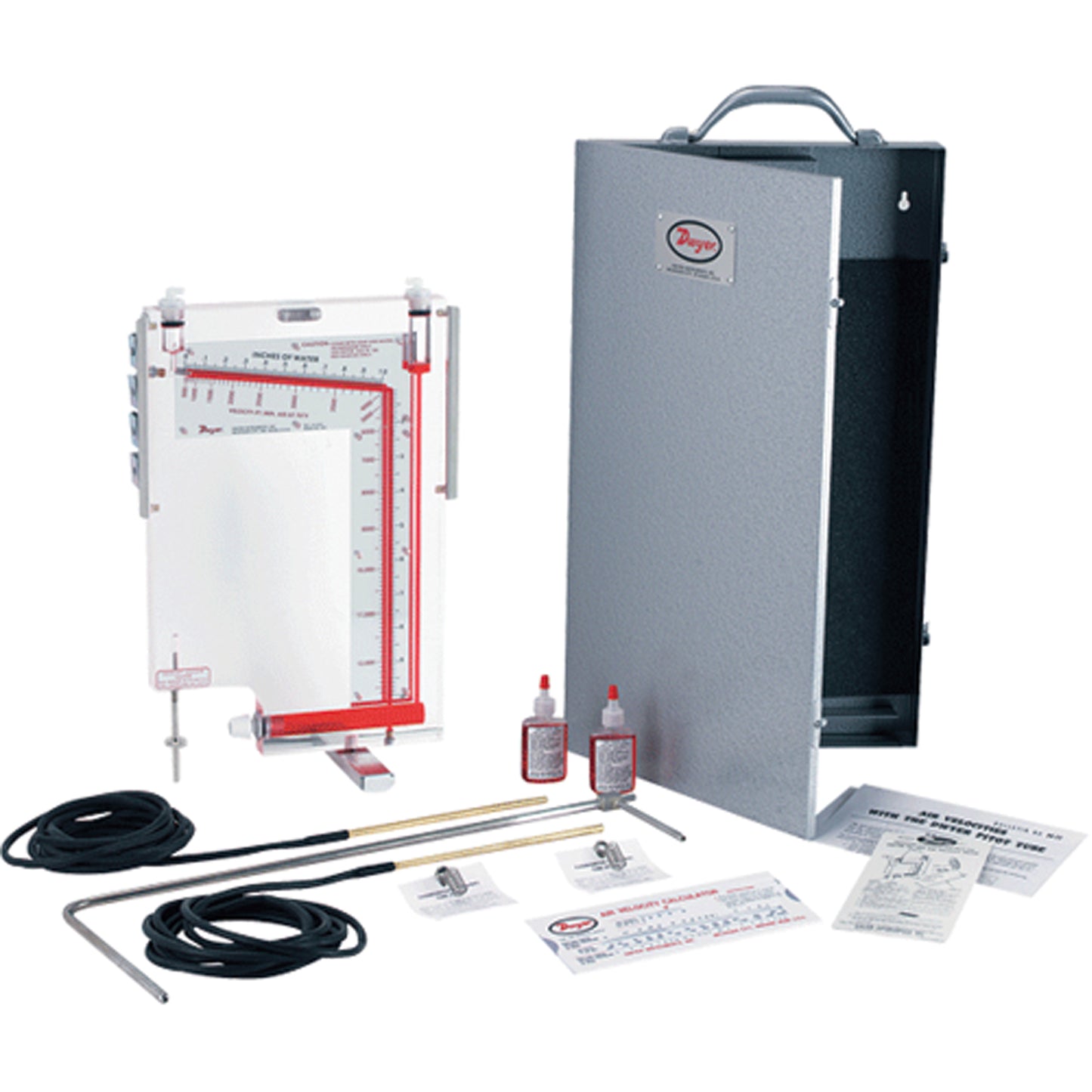

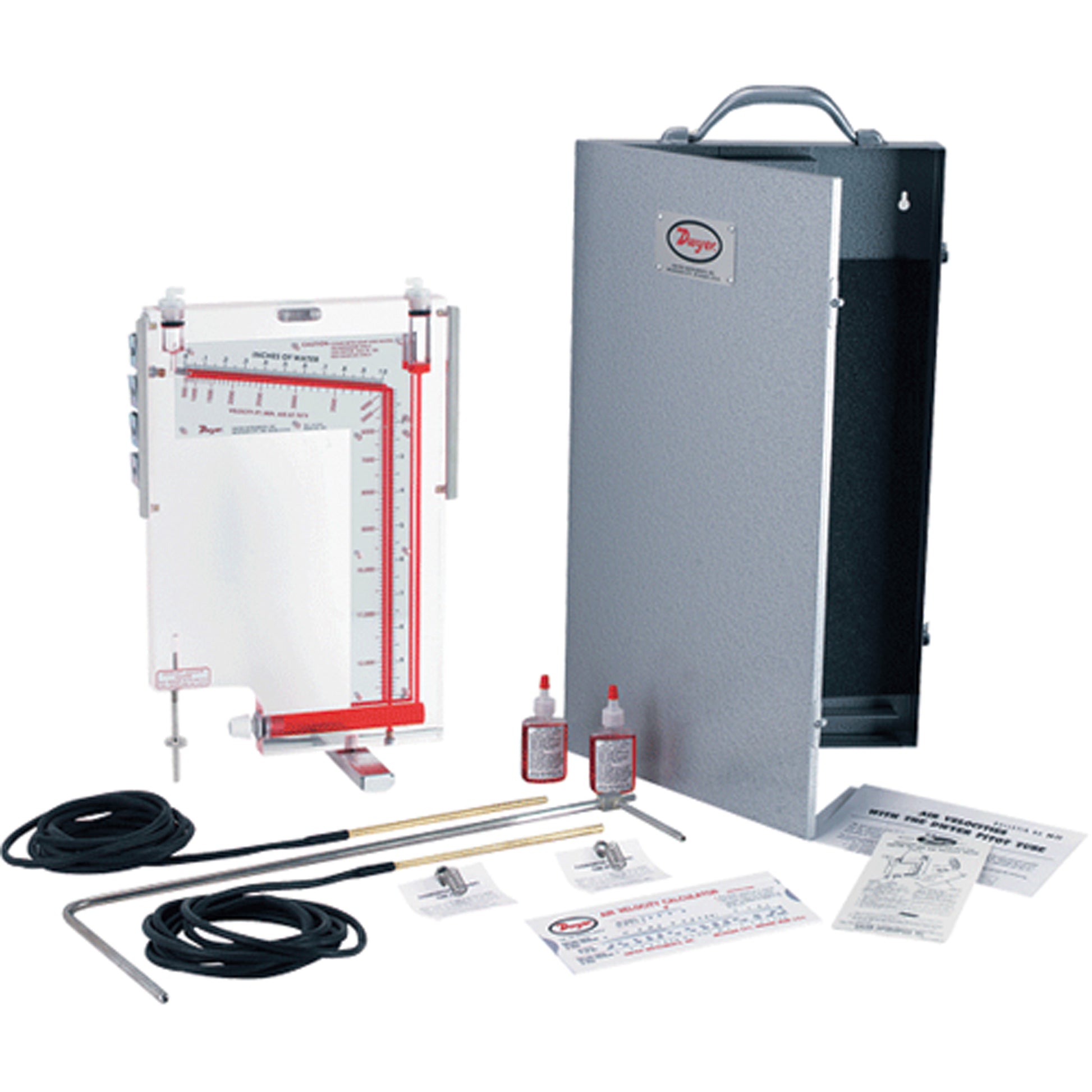

Inclined/Vertical Manometer, Analogue, 0 - 10 in. w.c.

• Inclined section for high accuracy and vertical section for extended range
• Velocity marked in red; air pressure marked in black
• Screw leveling adjustment and ground glass bubble level; ; Kit includes No. 400 Air Meter & all accessories:
• Stainless steel calibrated pitot tube (18") - Graduated both sides in inches to show insertion depth for easy, accurate duct traverse
• Rubber tubing with connectors - 2 coils of 3/8" with metal terminal tubes
• Magneclip side mountings - Attaches meter instantly to steel duct or surface
• Red gauge oil - Spare bottle for occasional refilling

Specifications:
Display: Analogue
Range: 0 - 10 in. w.c.
Pressure: 0-10" H2O
Velocity: 400-12,600 FPM
Inclined Range: 0-1" w.c.
Vertical Range: 1-10" w.c.
