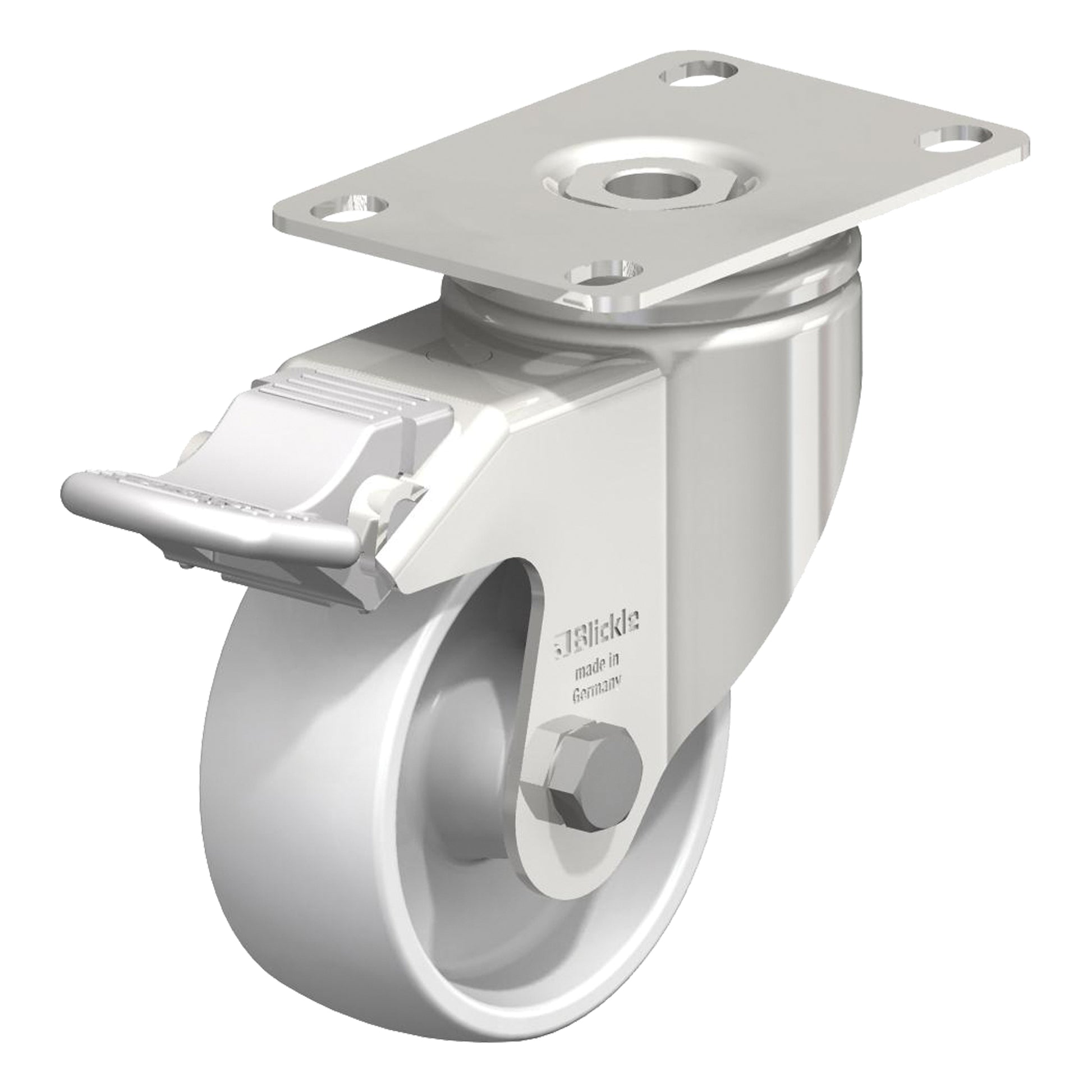

Impact-Resistant Caster, Swivel with Brake, 5" (127 mm), Nylon, 265 lbs. (120 kg.)

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 5" (127 mm)
Capacity: 265 lbs. (120 kg.)
Wheel Material: Nylon
Caster Type: Swivel with Brake
Frame Material: Steel
Tread Width: 1-1/4" (31.75 mm)
Bolt Hole Spacing: 1-3/4" x 2-13/16" (44 mm x 71 mm) - 1-3/4" x 3-1/16" (44 mm 78 mm)
Bolt Hole Size: 5/16" (7.93 mm)
Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)
Tread & Tire Hardness: 70° Shore D
Bearing Type: Plain Bore
Total Height: 6-5/16"
