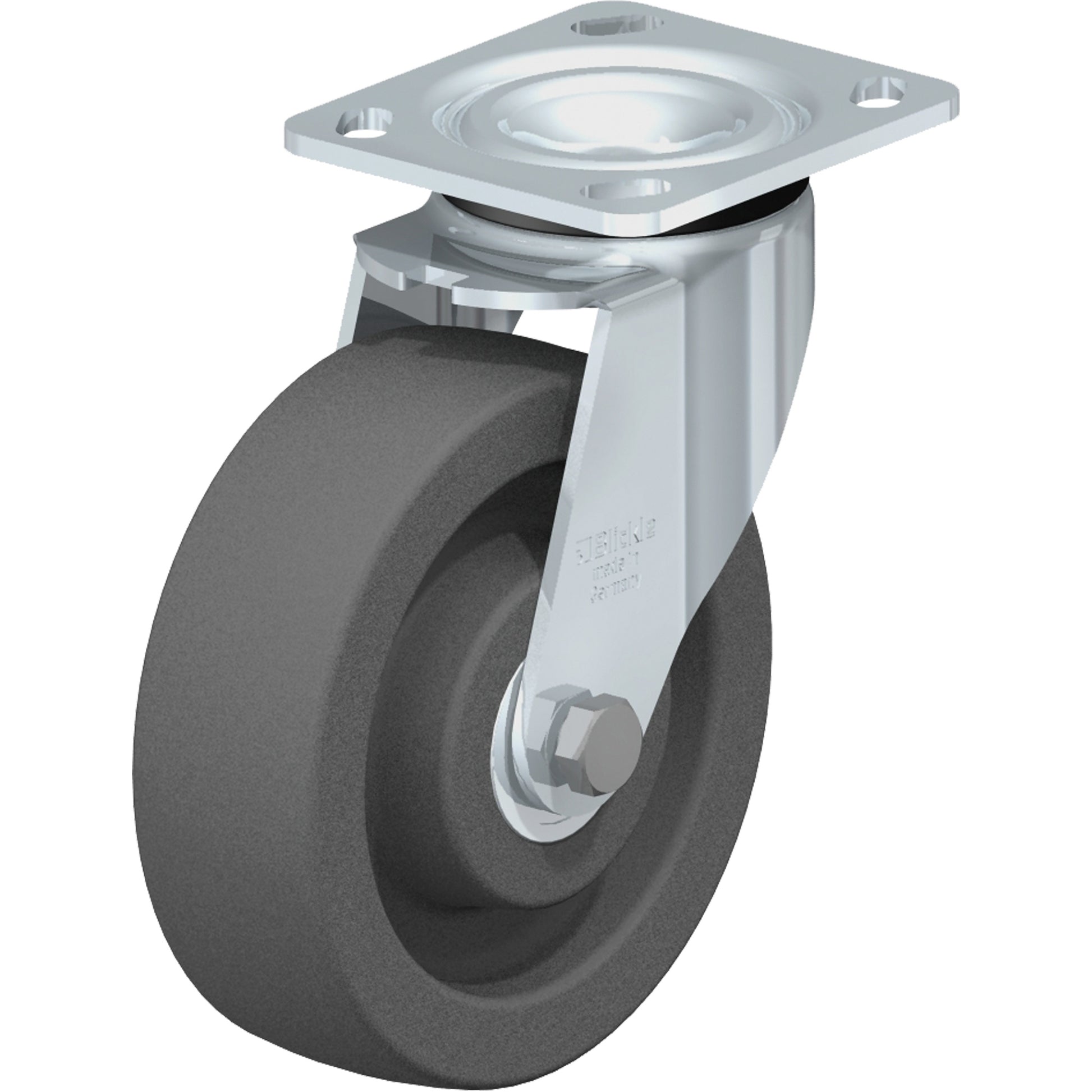

Impact-Resistant Caster, Swivel, 6-5/16" (160.3375 mm), Nylon, 1250 lbs. (567 kg.)

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 6-5/16" (160.3375 mm)
Capacity: 1250 lbs. (567 kg.)
Wheel Material: Nylon
Caster Type: Swivel
Frame Material: Steel
Tread Width: 2" (50.8 mm)
Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
Bolt Hole Size: 3/8" (9.52 mm)
Plate Size: 4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness: 70° Shore D
Bearing Type: Ball Bearing
Total Height: 7-7/8"
