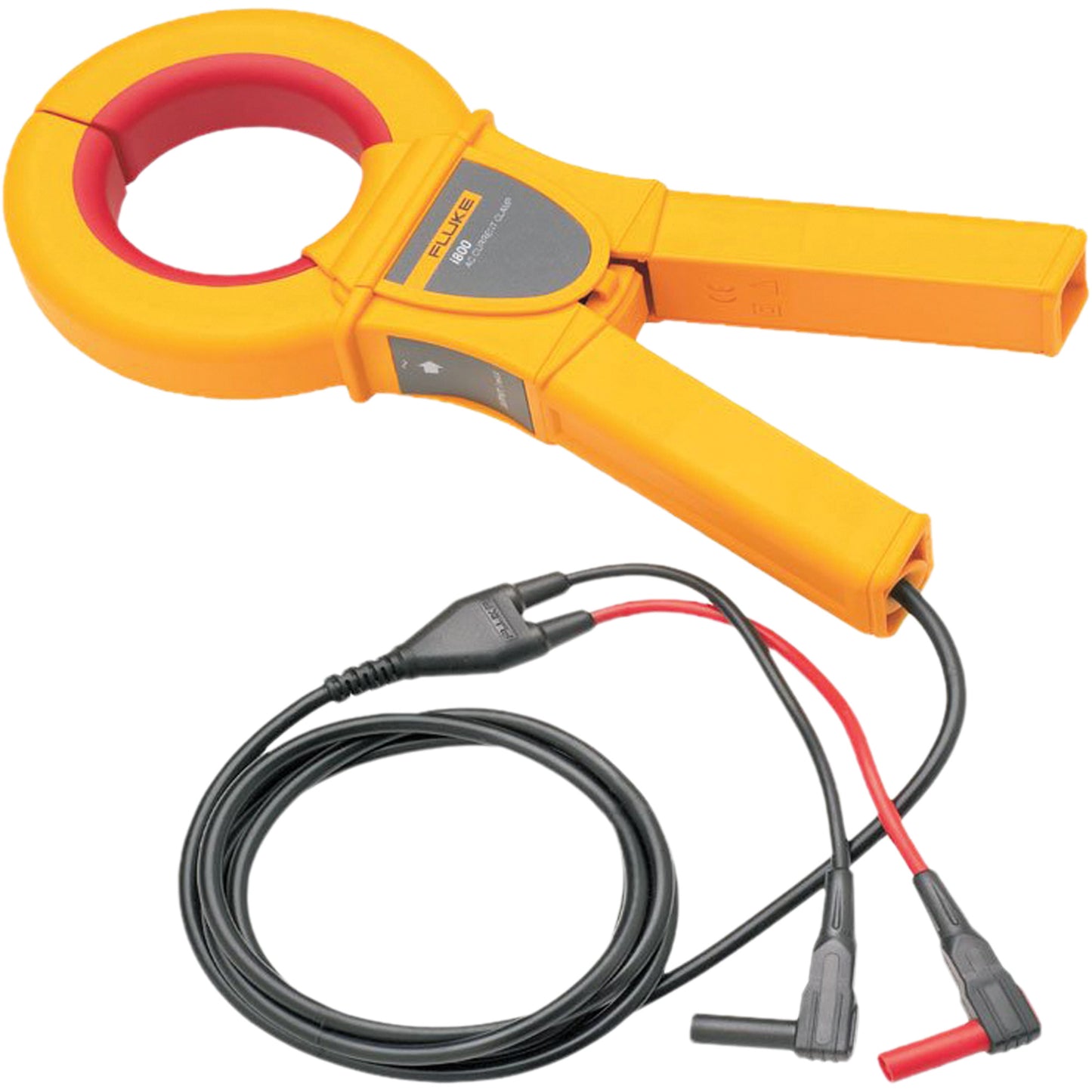

i800 AC Current Clamp

• 1000:1 conversion factor for easy calculation
• Rugged positive action design
• Compatible with digital multimeters that accept shrouded 4 mm banana plugs and has an AC milliamp range
• Maximum Conductor Diameter

Specifications:
Continuous Current Range: 100 mA - 800 A rms
Maximum Non-Destructive Current: 1500 A rms (50/60 Hz)
Accuracy: ±1%
Usable Frequency: 30 Hz - 10 kHz (-3dB)
Output Level: 1 mA / A
Safety Rating: CAT III 600 V
Maximum Conductor Diameter: 54 mm
Output Cable Length: 1.6 m
Lead Connector: Shrouded Banana Plugs
