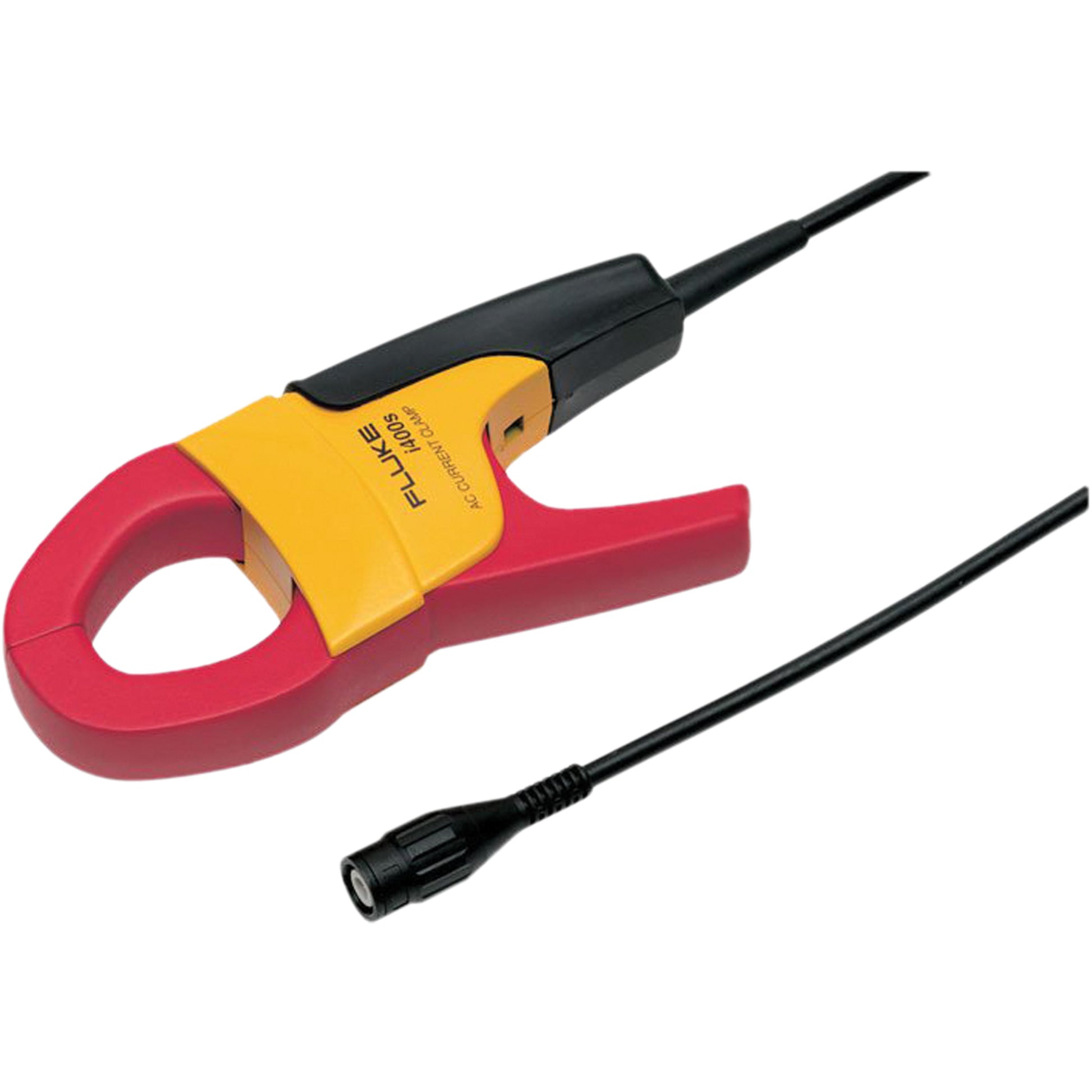

i400S AC Current Clamp Attachment

• Companion to your scope or power quality meter
• Specially designed to offer maximum utility in a compact shape
• Take accurate current readings without breaking the circuit
• Soft non-slippery overmold handle
• Maximum Conductor Diameter

Specifications:
Nominal Current Range: 0.5 - 40 A & 5 - 400 A
40 A Range Accuracy: 2% + 0.015 A (45-400 Hz)
400 A Range Accuracy: 2% + 0.04 A (45-400 Hz)
Bandwidth: 5 Hz - 10 kHz
Maximum Non-Destructive Current: 1000 VAC
Safety Rating: CAT IV 600 V/ CAT III 1000 V
Maximum Conductor Diameter: 32 mm
Output Cable Length: 2.5 m
Dimensions: 150 mm x 70 mm x 30 mm
