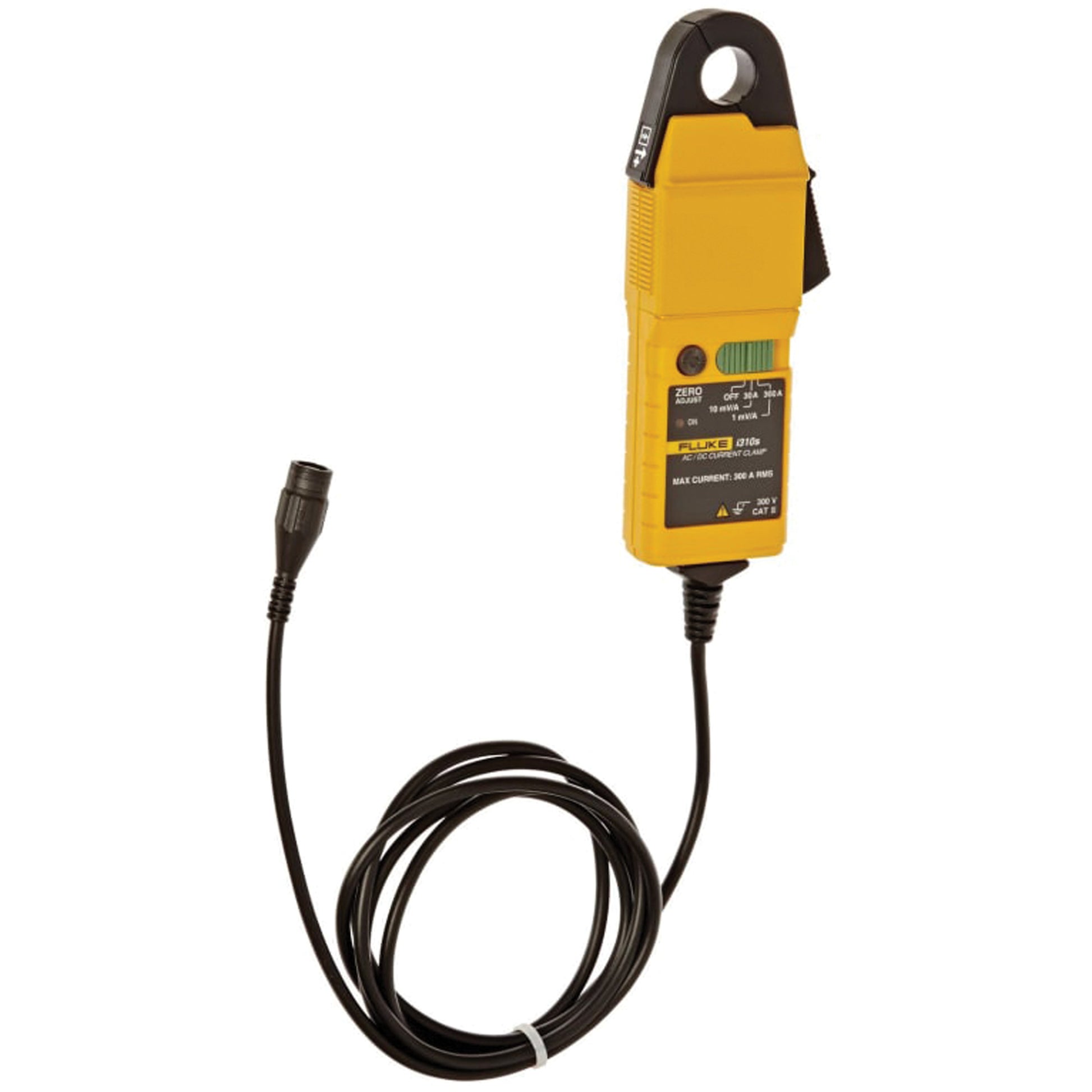

i310s Current Probe

• Based on Hall Effect technology for use in measurement of both DC and AC current
• Can be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement

Specifications:
Current Ranges: 30 A and 300 A AC rms or ±45 A and 450 A DC
Measuring Ranges: ±45 A and 450 A dc
Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
Resolution: ±50 mA (40 A) to ±100 mA (400 A)
Frequency Range: DC to 20 kHz (- 3 dB)
