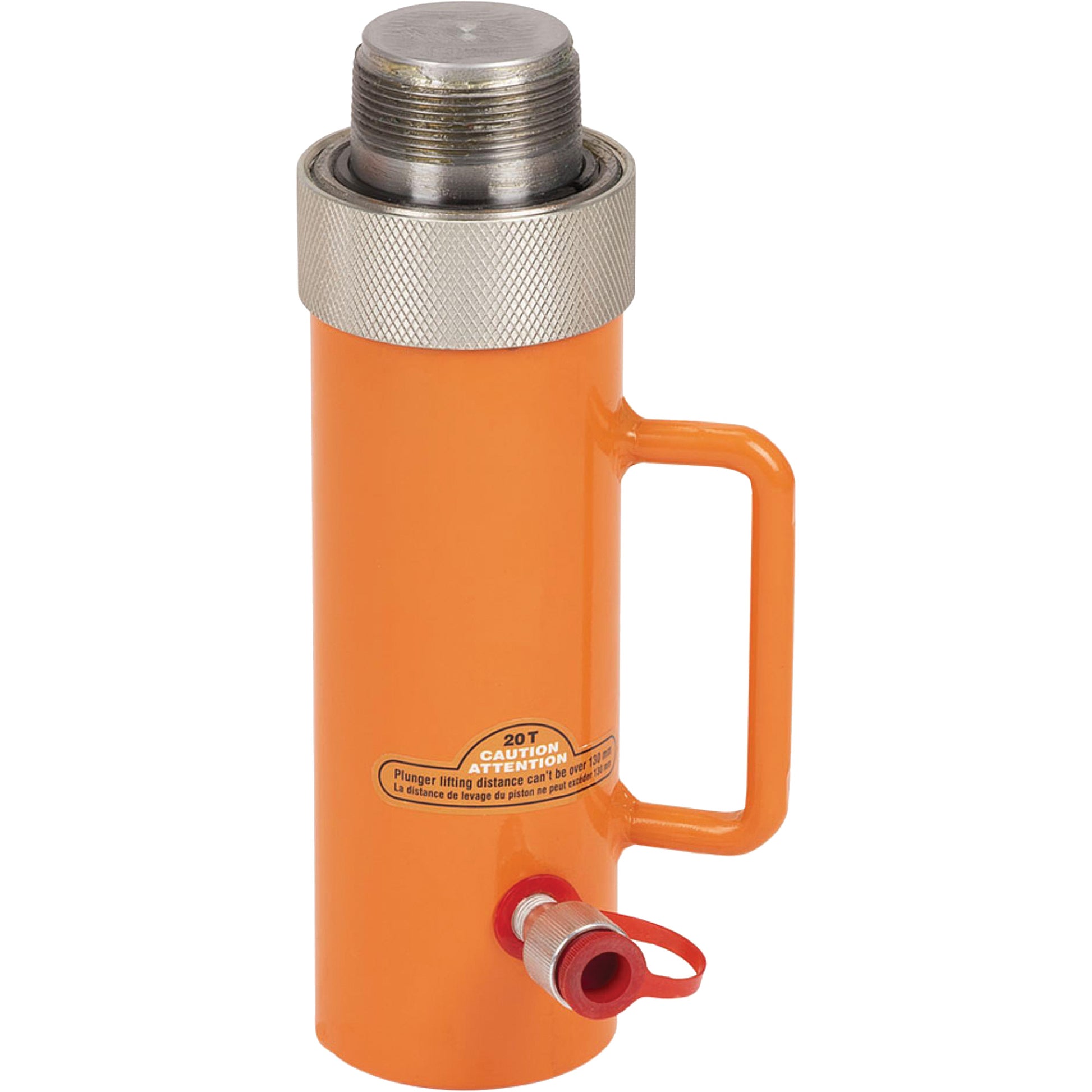

Hydraulic Rams

• For use in high-force applications including lifting, pulling, pushing, bending, and alignment
• Made with professional-grade material and designed to provide years of trouble-free service for a wide range of applications
• Available in a variety of styles that can be used with Strongarm® and other body and frame repair kits
• Integrated built-in oil-bypass and overload valve protects the hydraulic system from accidental overload
• Ideal for industrial and construction markets, vehicle service facilities, agriculture, and more
• Effective Area (in²)

Specifications:
Capacity: 20 Ton(s)
Stroke Length: 5.04"
Collapsed Height: 11-1/10"
Extended Height: 16"
Diameter - Piston (in.): 2.36
Diameter - Saddle (in.): 2.13
Effective Area (in²): 5.14
Extension Tubes Length (mm/in.): 28.34mm / 1.1"|50mm / 2"|100.39mm / 4.0"|200mm / 7.9"|275.59mm / 10.9"
Oil Capacity (ml): 425
