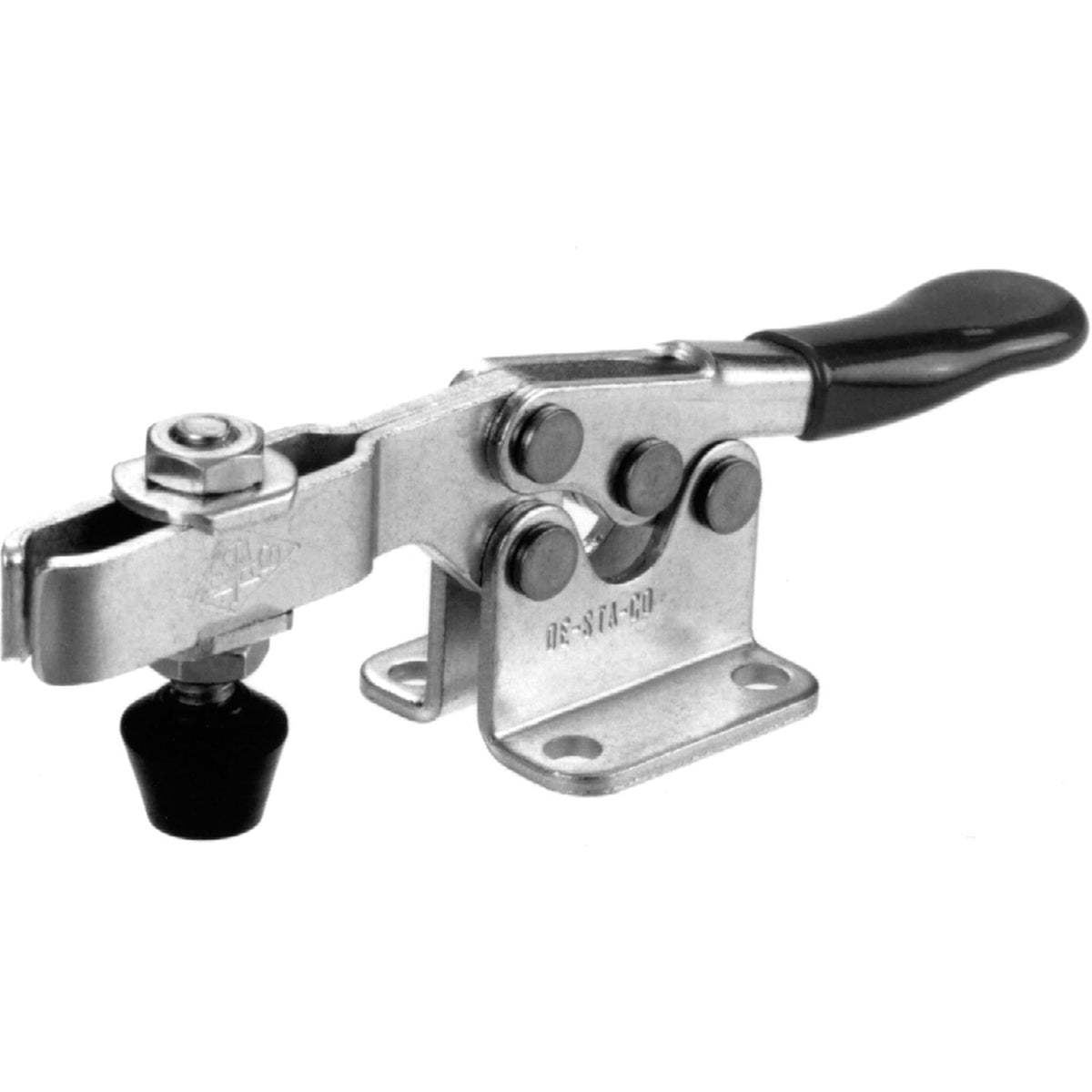

Horizontal Hold-Down Clamps - 225 Series

• Low height design makes clamps outstanding when headroom is a concern. Unlike the handle on the vertical clamp, the horizontal clamp moves in the opposite direction. Hold down bar available in solid or U-shaped format. Some models available in stainless steel on request. Holding capacities to 500 lbs. Larger capacities available. U-bar horizontal clamps provide greater rigidity and overall performance. The 215 Series includes a 1/4-20 bonded neoprene-tipped spindle assembly (TN134) and washers (TN123). The 225 Series includes a 5/16-18 bonded neoprene spindle assembly (TN135) and flanged washers (TN125).
• Base L" X W"

Specifications:
Style: Horizontal
Clamping Force: 500 lbs.
Dimensions" A: 1.875
Dimensions" B: 6.59375
Dimensions" C: 1.34375"
Dimensions" D: 1.375"
Base L" X W": 1 1/2 x 1 3/8
Weight: 0.55 lbs.
