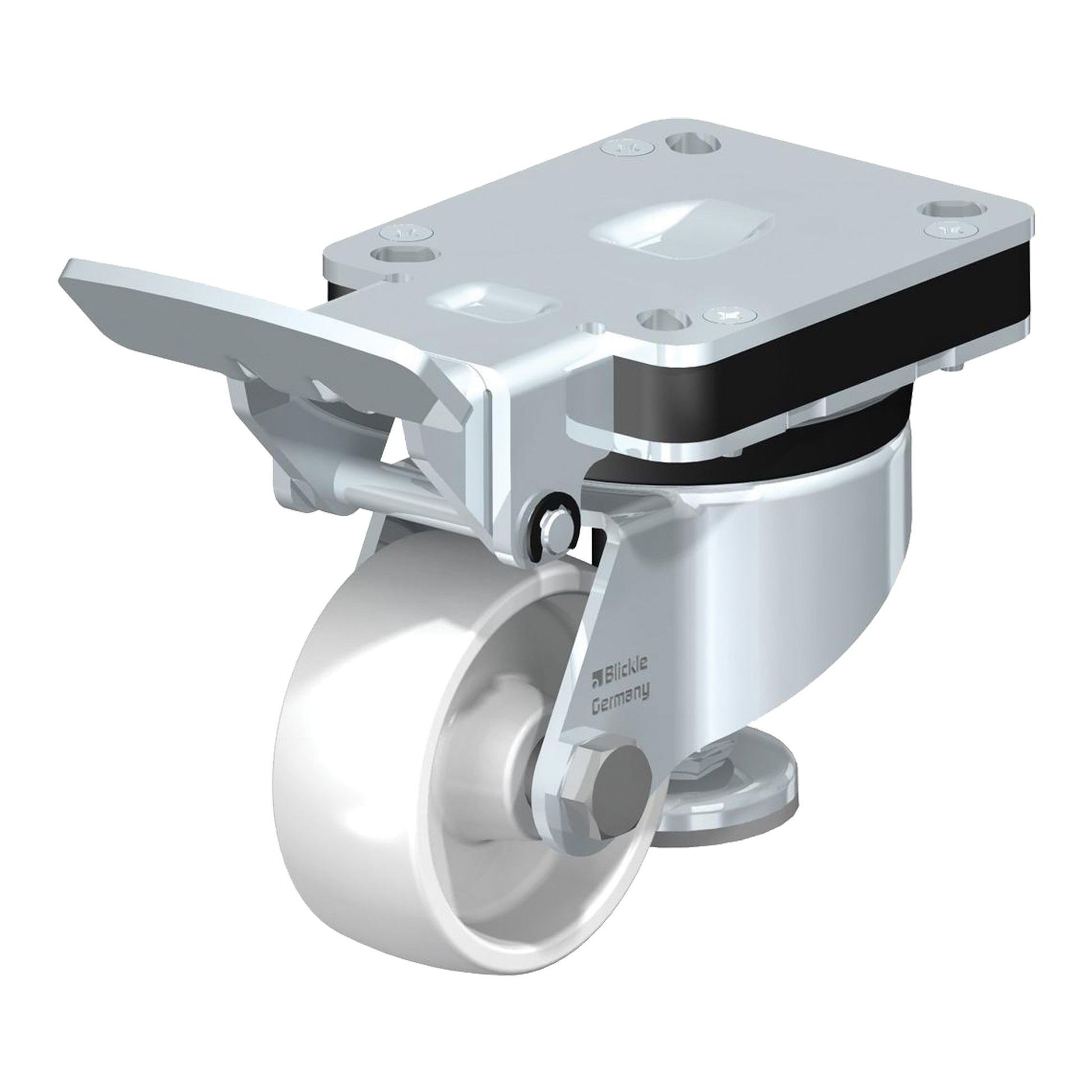

Heavy-Pressed Caster, Swivel, 4" (101.6 mm), Steel, 505 lbs. (230 kg.)

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 4" (101.6 mm)
Capacity: 505 lbs. (230 kg.)
Wheel Material: Steel
Caster Type: Swivel
Frame Material: Steel
Tread Width: 1-7/16" (37 mm)
Bolt Hole Spacing: 3-1/4" x 2-3/8" (83 mm x 60 mm)
Bolt Hole Size: 11/32" (9 mm)
Plate Size: 4" x 3-3/8" (102 mm x 86 mm)
Tread & Tire Hardness: 70° Shore D
Bearing Type: Plain Bore
Total Height: 5-5/8"
