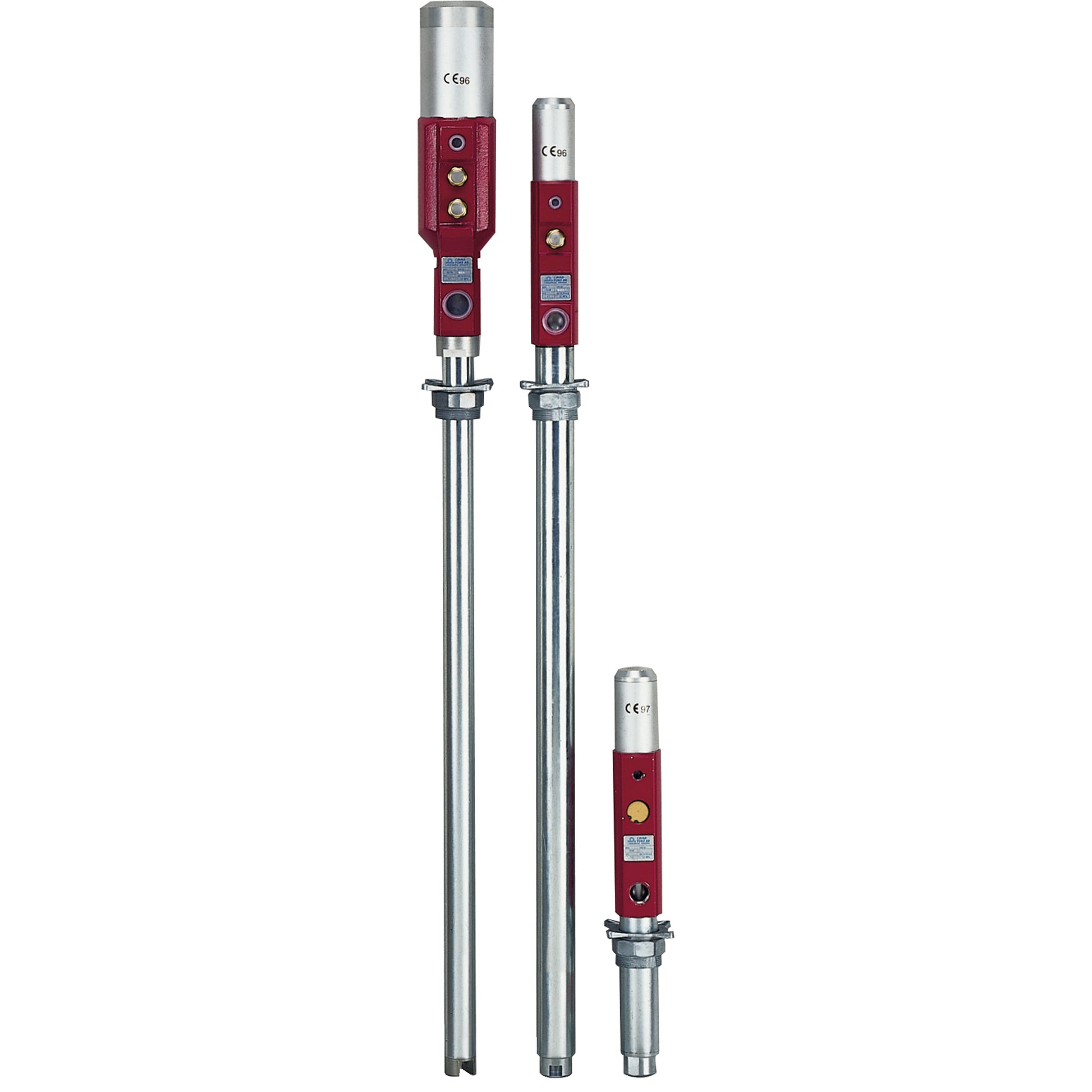

Heavy-Duty Air Operated Oil Pumps, 3:1 Pressure Ratio

• WARNING! Before ordering any pump, establishing compatibility with the MSDS of the fluid used in application is a must!; ; Designed for the transfer of higher viscosity fluids and/or fluid transfer over longer distances, ideal for drums, tanks or wall mounting (mounting bracket is optional). Mounted pumps are connected to the tank via a suction hose (hose not included). Maximum air pressure 10 bar, minimum air pressure 3 bar. Flow is based on motor oil SAE 10-30 at 20°C air pressure 7 bar free outlet. Maximum viscosity 2000 centistrokes at a reduced flow.

Specifications:
Pressure Ratio: 3:1
Type: AIR INLET BSP 1/4" - PUMP OUTLET BSP 3/4"
Pressure Ratio: 3:01
Flow L/min: 30
Uptake Length": 36
Wt. Lbs.: 11
