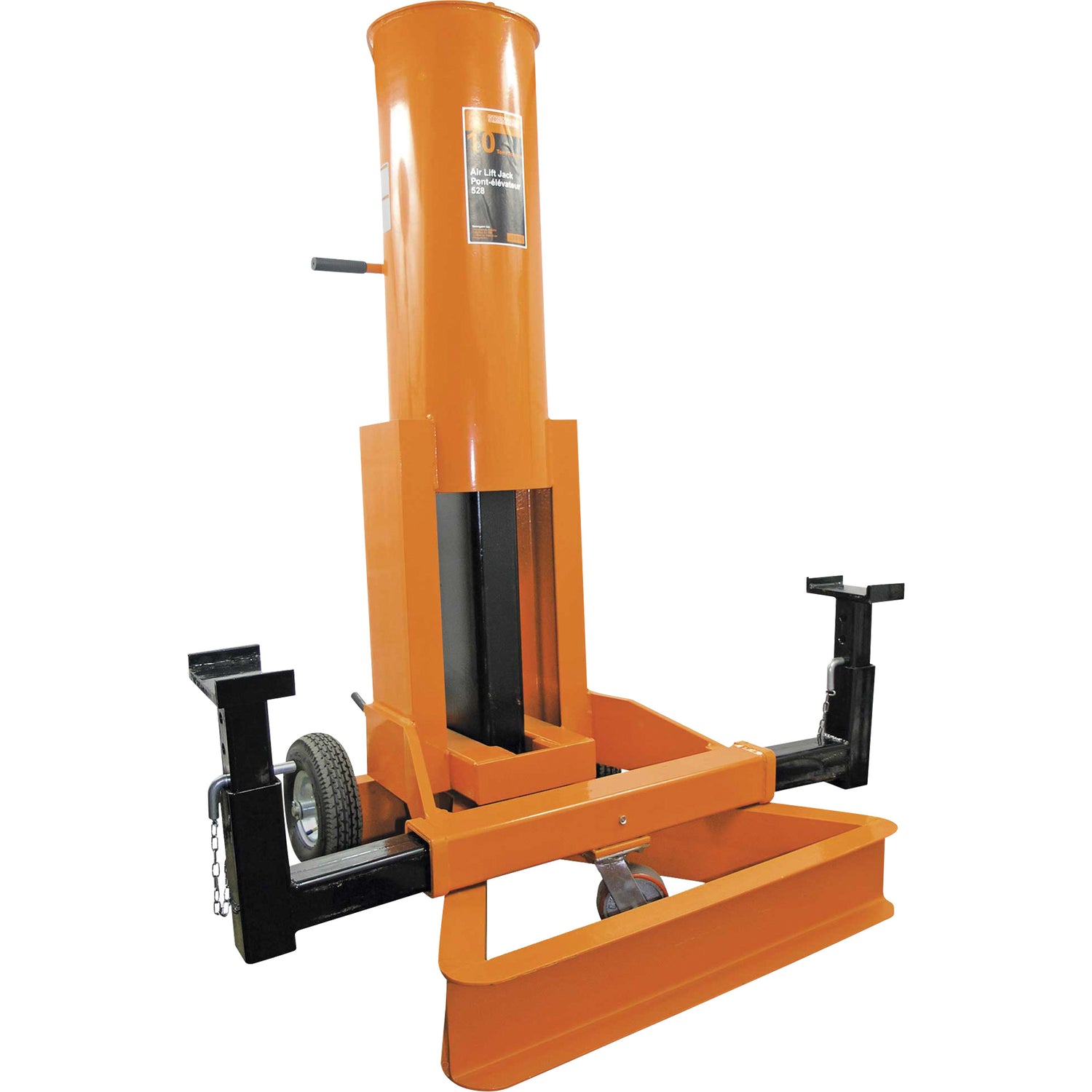

Heavy-Duty Air End Lift Jack
Description
Description
• 10 ton capacity achieved at 200 PSI air supply
• 4" x 6" steel saddles adjust between 36" and 50" widths to accommodate a wide variety of vehicle applications
• Saddle arms reversible for lower lifting points
• Three-way air valve for fine lifting and lowering control
• Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50"
• Two air control valve fittings – one for shop air supply and one for a Schrader valve
• 13" forward reach (distance from cylinder to saddles)
Specifications:
Lifting Capacity: 10 Ton(s)
Lowered Height: 17-1/2"
Raised Height: 50"
Saddle Spread: 36" - 50"
Working Air Pressure: 200 PSI
