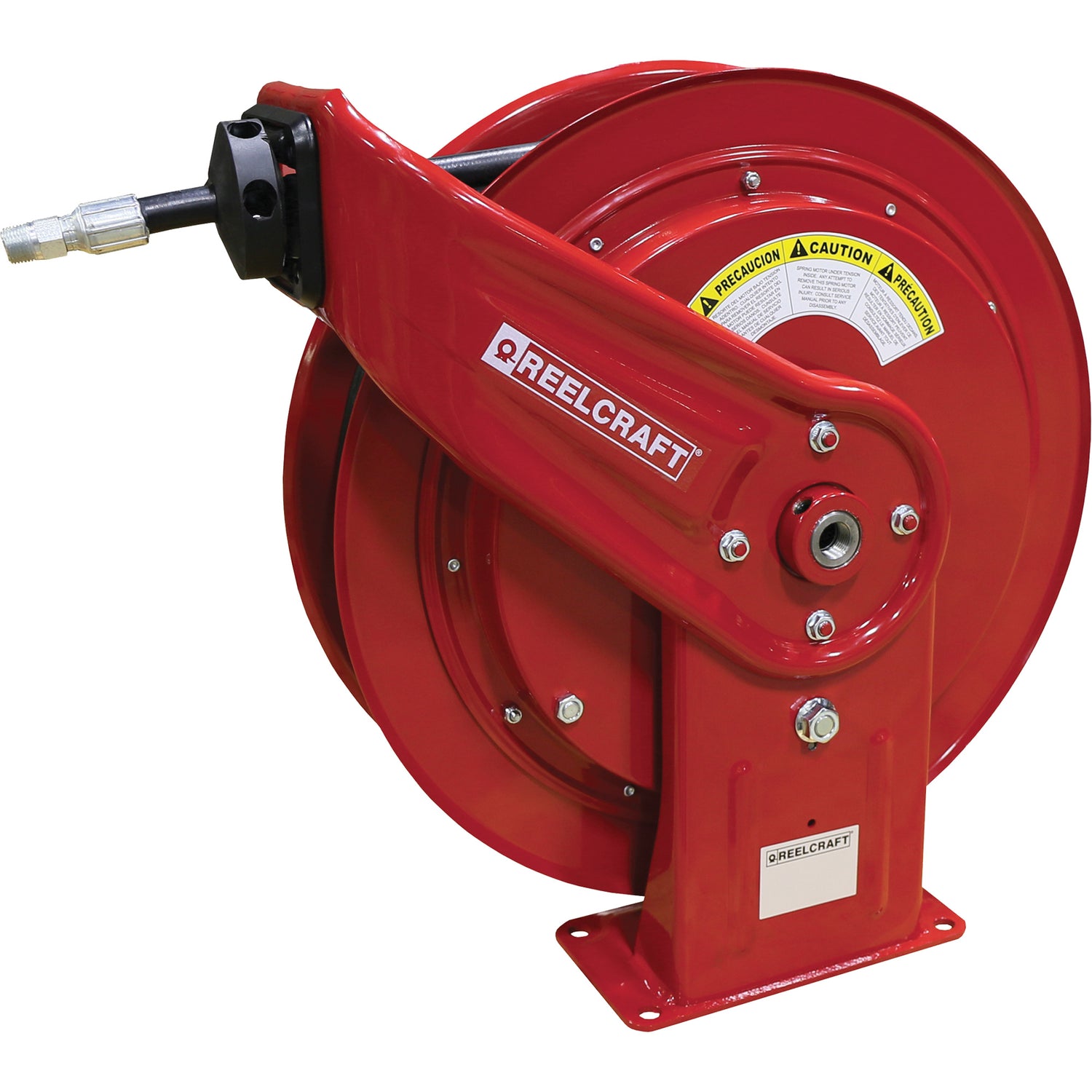

• The heavy duty base design, all steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product
• The one piece guide roller design and stainless steel pins offer greater strength and easier serviceability
• The containerized drive spring offers easier handling during maintenance
• The high quality, die cast aluminum hub and two sealed ball bearings produce a smooth spool rotation and easier operation
• The guide arm adjusts to seven different positions for versatile mounting and a wide range of applications
• Reel Height

Specifications:
Hose Type: Oils
Hose Capacity: Single Hose
Inner Hose Diameter: 1/2"
Hose Length: 65'
Hose End: 1/2" NPT
Working Pressure: 3000 psi
Reel Height: 20-1/4"
Reel Width: 19-3/4"
Reel Depth: 8-1/4"
Inlet: 1/2" NPTF
