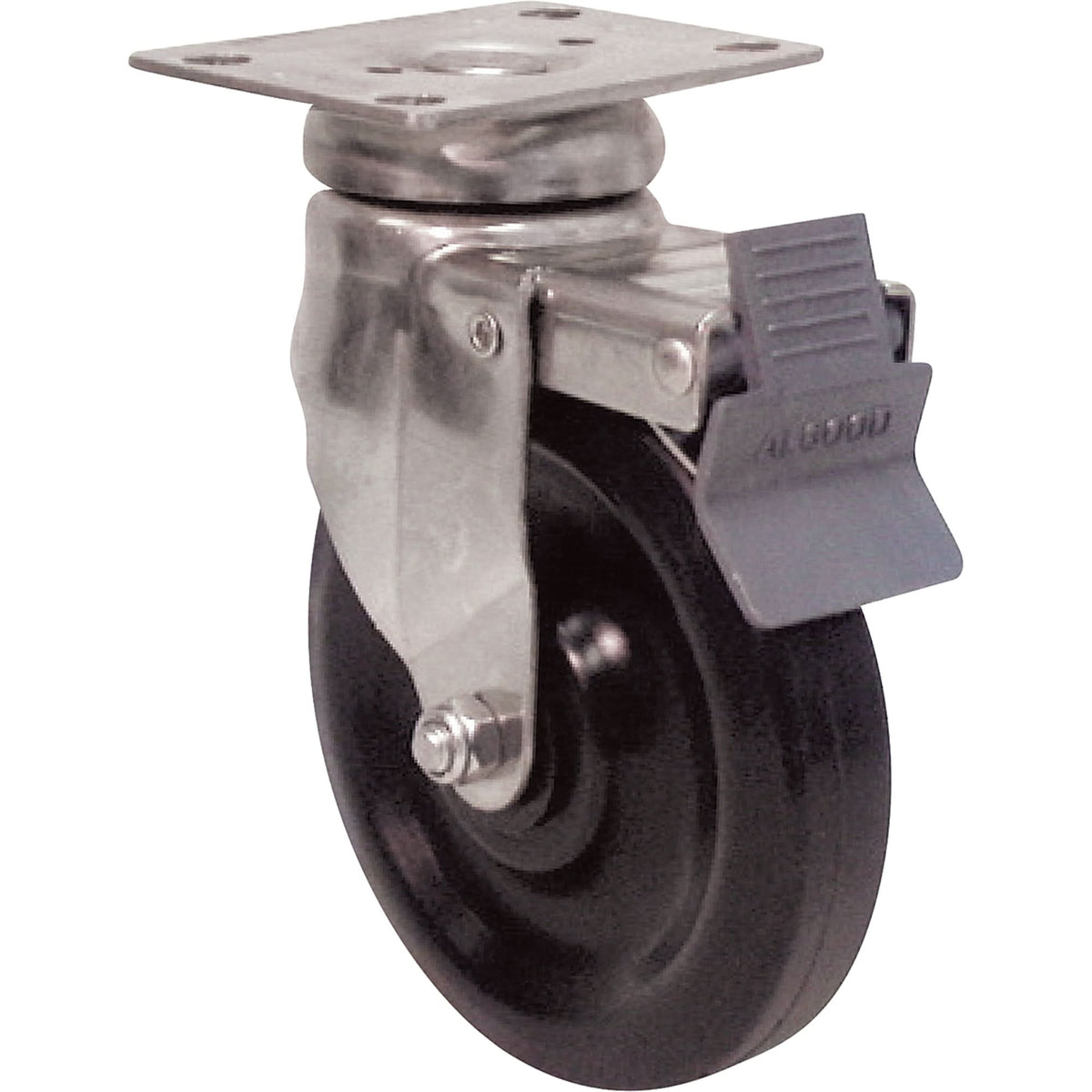

General Purpose Caster, Swivel with Brake, 5" (127 mm), Steel, 300 lbs. (136 kg.)

• 9/16" diameter rivet
• 3/8" diameter axle and lock nut
• 1/4" diameter upper race; 1/4" diameter lower race
• Corrosion resistant bright zinc finish ; Excellent for:
• Medium-duty applications
• Mobile warehousing equipment
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 5" (127 mm)
Capacity: 300 lbs. (136 kg.)
Wheel Material: Steel
Caster Type: Swivel with Brake
Frame Material: Steel
Tread Width: 1-1/4" (31.75 mm)
Bolt Hole Spacing: 1-3/4" x 2-7/8" (44 mm x 73 mm)
Bolt Hole Size: 5/16" (7.93 mm)
Plate Size: 2-3/4" x 3-3/4" (70 mm x 95 mm)
Bearing Type: Steel
Swivel Radius: 4"
Overall Height: 6"
Brake Type: Top Locking
