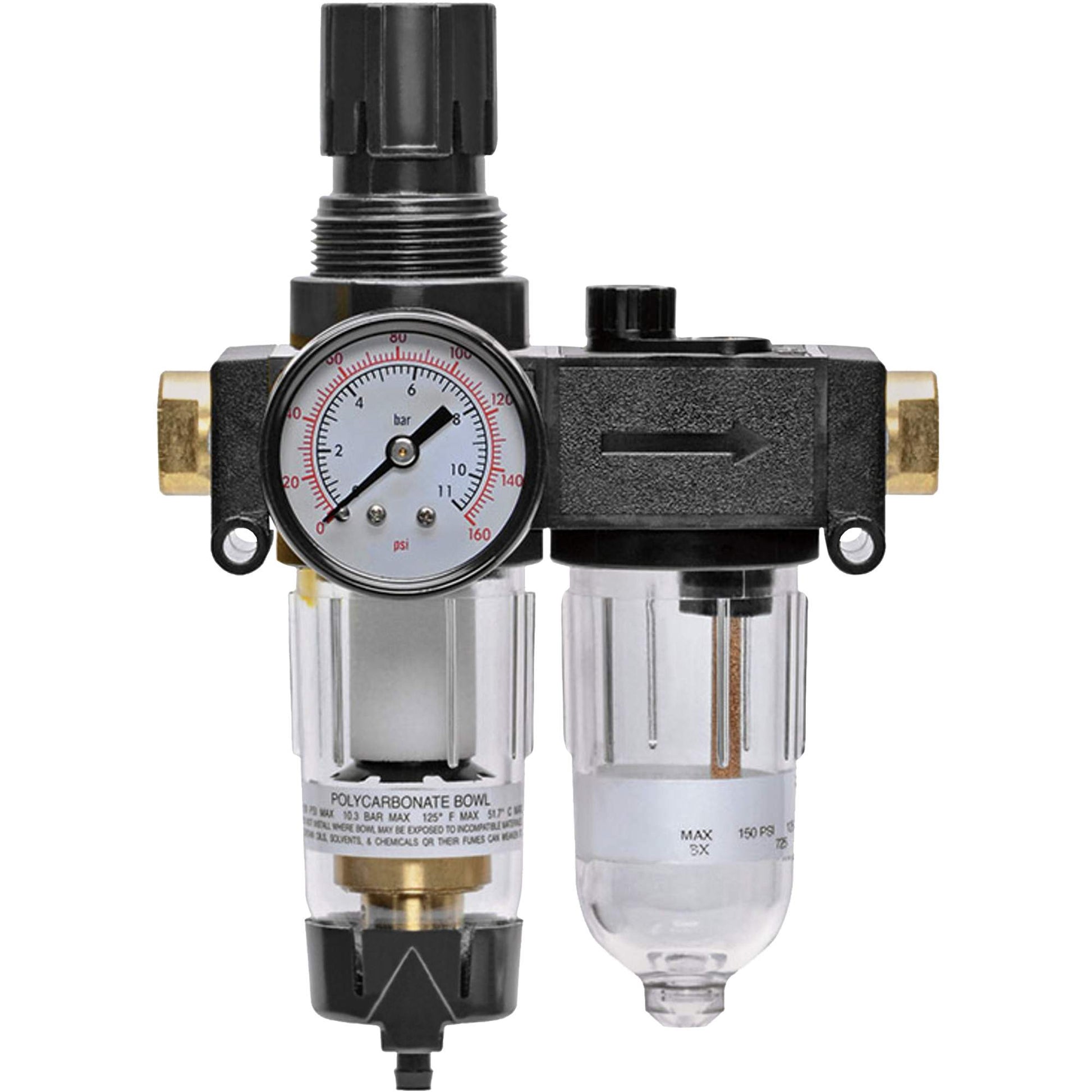

Filter/Regulator & Lubricator with Gauge Modulair 200, 1/4" NPTF

• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — piston type regulator
• Self-relieving design
• Push-pull adjusting knob
• External oil delivery adjusting knob
• Pressure Range (Standard Bowl With Manual Drain)

Specifications:
Connection Size: 1/4" NPTF
Max. Air Flow: 23 SCFM @ 100 PSI
Operating Pressure: 150 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 2.03 fl. oz.
Ambient/Media Temperature (Standard Bowl): 4 to 52 °C
Pressure Range (Standard Bowl With Manual Drain): 0-125 PSI
Filtration: 5 micron
Seals: Nitrile
