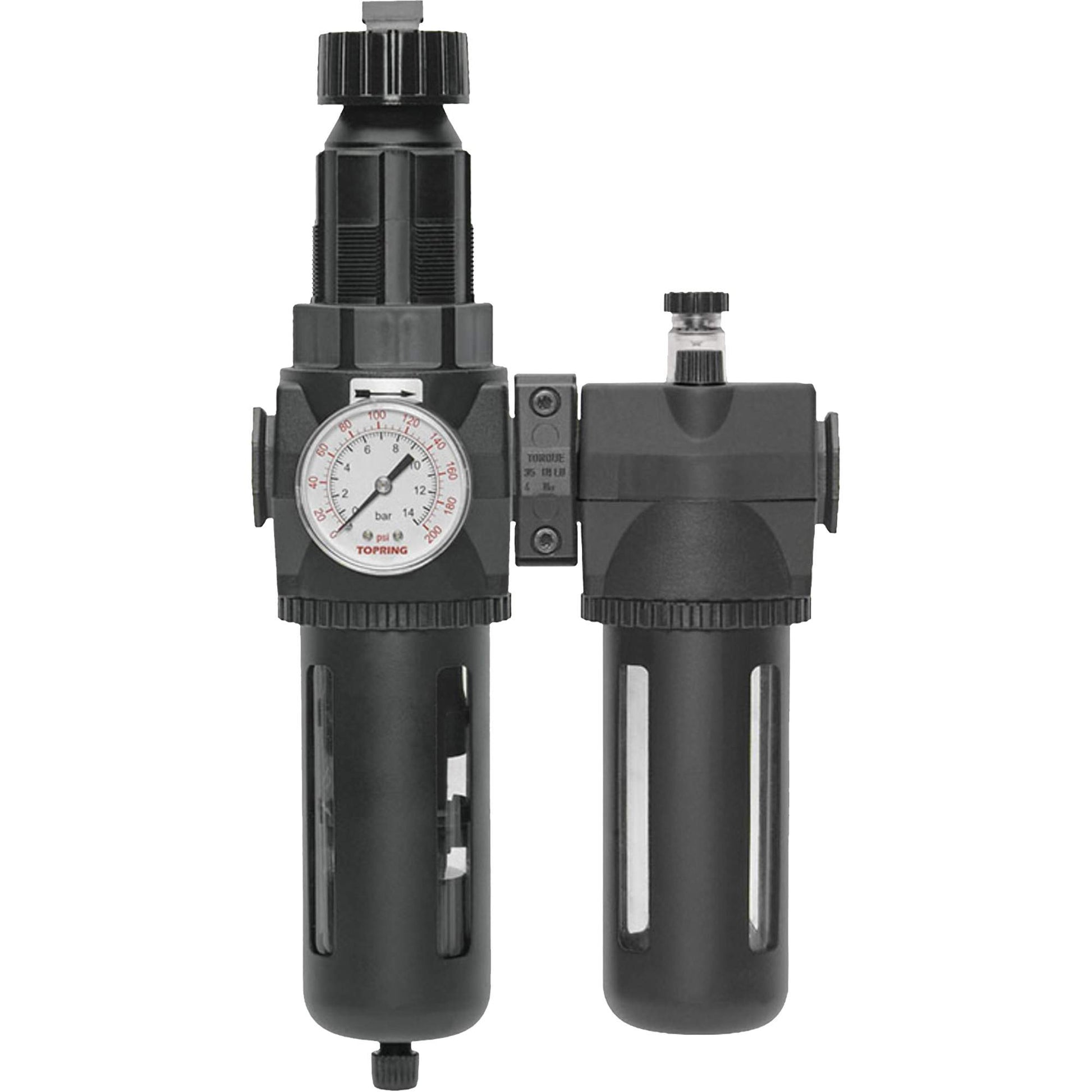

Filter/Regulator & Lubricator Modulair 400 with Gauge & Standard Bowl, 1/2" NPTF

• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self-relieving design regulator
• Push-pull adjusting knob
• External oil delivery adjusting knob — removable for tamper resistance
• Filtration

Specifications:
Connection Size: 1/2" NPTF
Max. Air Flow: 120 SCFM @ 100 PSI
Operating Pressure: 150 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 9.13 fl. oz.
Ambient/Media Temperature (Standard Bowl): 4 to 52 °C
Filtration: 5 micron
Standard Bowl: Polycarbonate with Steel Shatterguard
Seals: Nitrile
