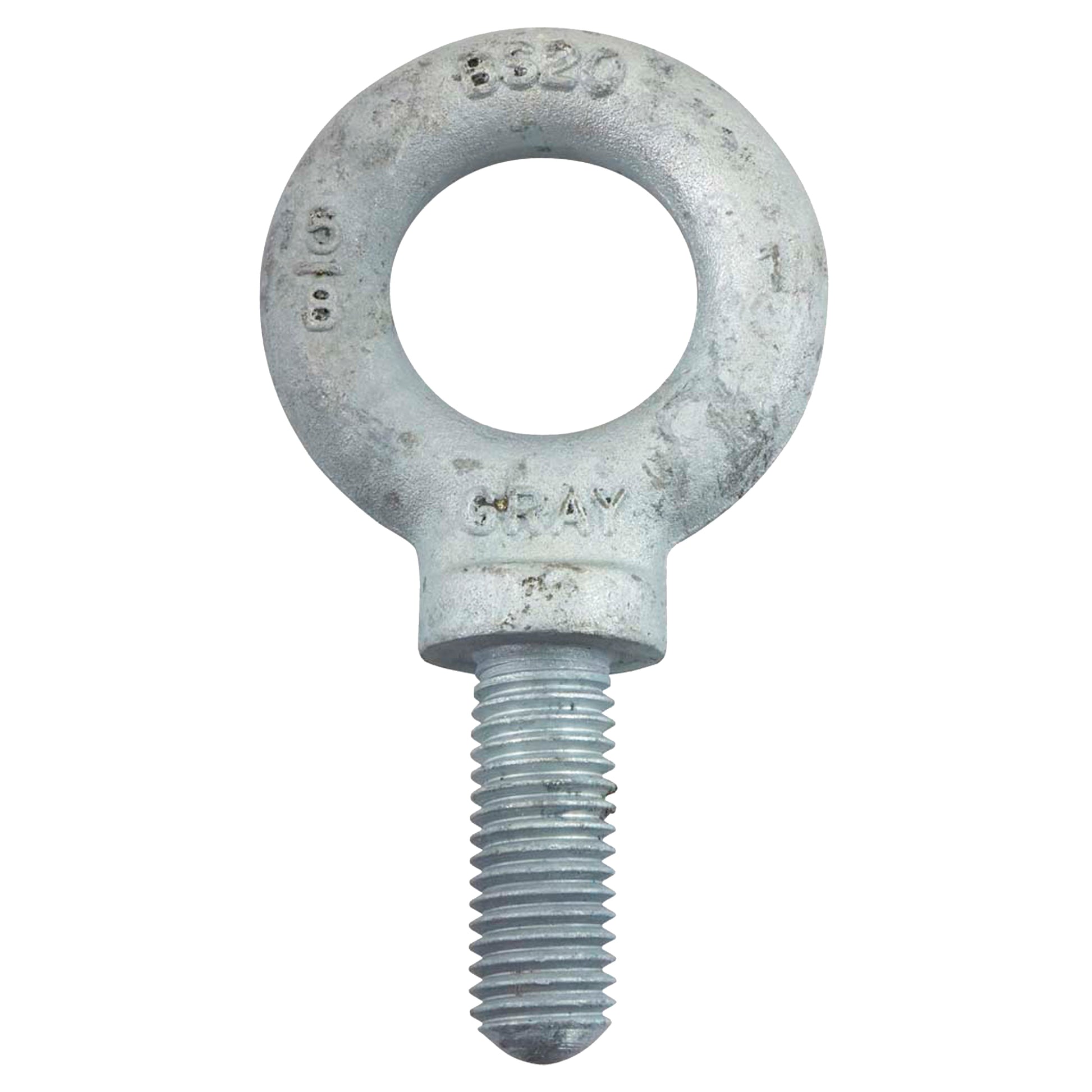

Eye Bolt, 2.5625" Dia., 1-3/4" L, Galvanized, 5200 lbs. (2.6 tons) Capacity

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity
• Weight

Specifications:
Working Load Limit: 5200 lbs. (2.6 tons)
Finish: Galvanized
Eye Diameter: 2.5625"
Shank Length: 1-3/4"
Body Style: With Shoulder
Shank Threading: Fully Threaded
Weight: 0.75 lbs.
I.D. Eye: 1-3/8"
O.D. Eye: 2-9/16"
Overall Dimensions: 4-3/4" L x 2-3/4" W x 1" H
Thread Size Mm, UNC-2A: 5/8" - 11"
