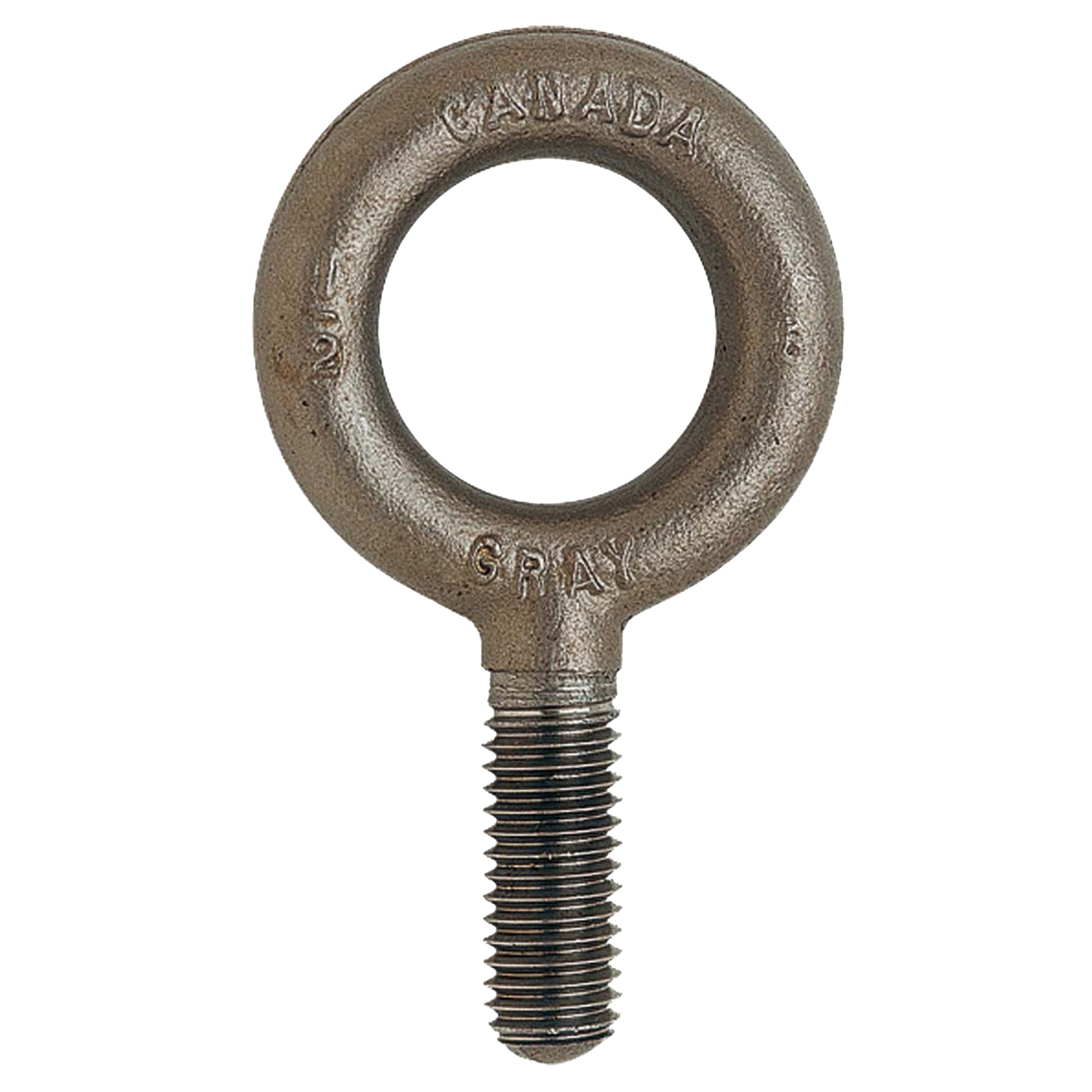

Eye Bolt, 2-1/8" Dia., 1-1/2" L, Uncoated Natural Finish, 2600 lbs. (1.3 tons) Capacity

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity
• I.D. Eye

Specifications:
Working Load Limit: 2600 lbs. (1.3 tons)
Finish: Uncoated Natural Finish
Eye Diameter: 2-1/8"
Shank Length: 1-1/2"
Body Style: Without Shoulder
Shank Threading: Fully Threaded
I.D. Eye: 1-3/16"
O.D. Eye: 2-1/8"
Thread Size, UNC-2A: 1/2" - 13"
Overall Dimensions: 3-3/4" L x 2-3/32" W x 1/2" H
Weight: 0.3 lbs.
