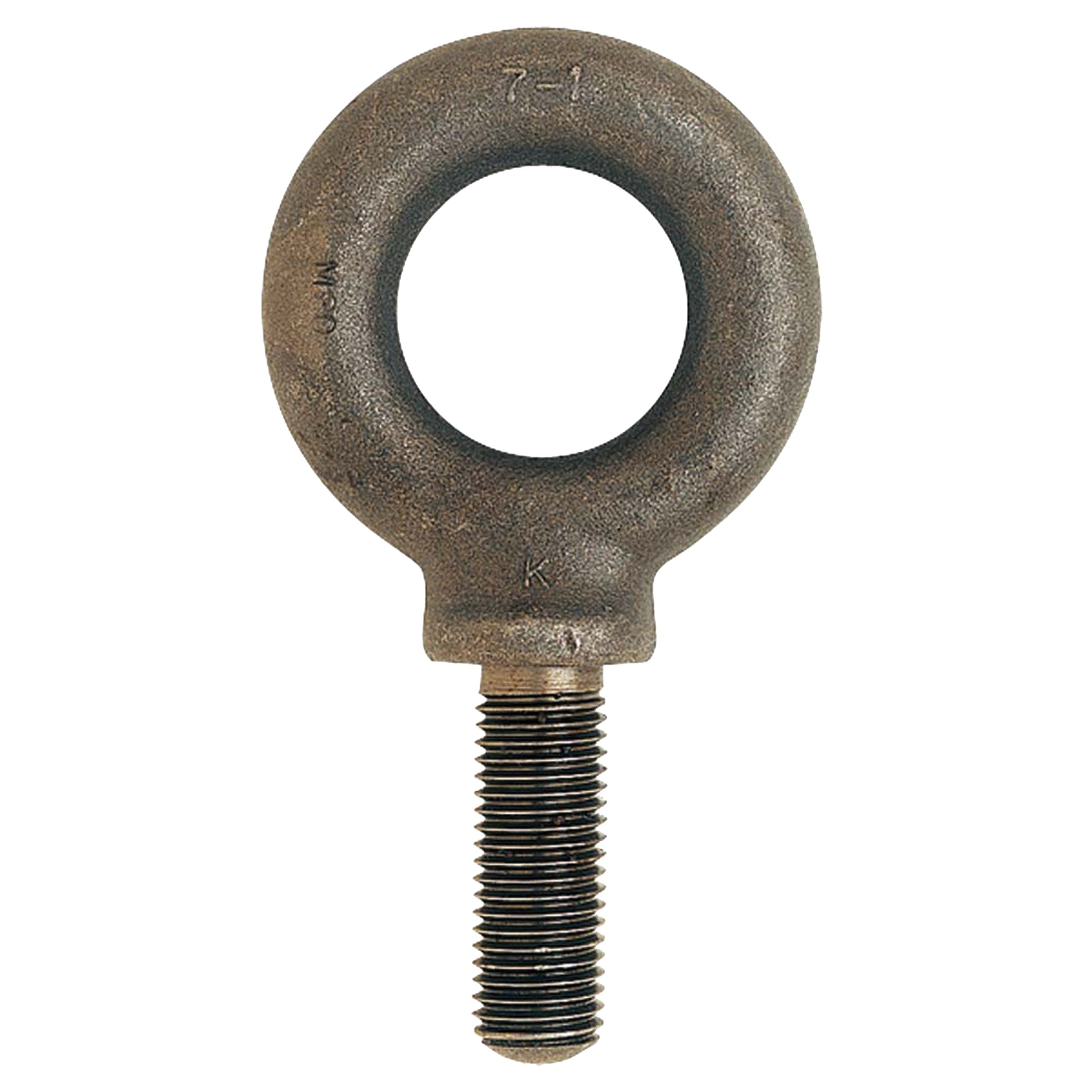

Eye Bolt, 174 mm Dia., 4" L, Uncoated Natural Finish, 36080 lbs. (18.04 tons) Capacity

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• I.D. Eye

Specifications:
Working Load Limit: 36080 lbs. (18.04 tons)
Finish: Uncoated Natural Finish
Eye Diameter: 174 mm
Shank Length: 4"
Body Style: With Shoulder
Shank Threading: Fully Threaded
I.D. Eye: 82"
O.D. Eye: 174.6 mm
Thread Size Mm, UNC-2A: M48 x 5"
Overall Dimensions: 12" L x 7" W x 2-3/4" H
Weight: 15.9 lbs.
