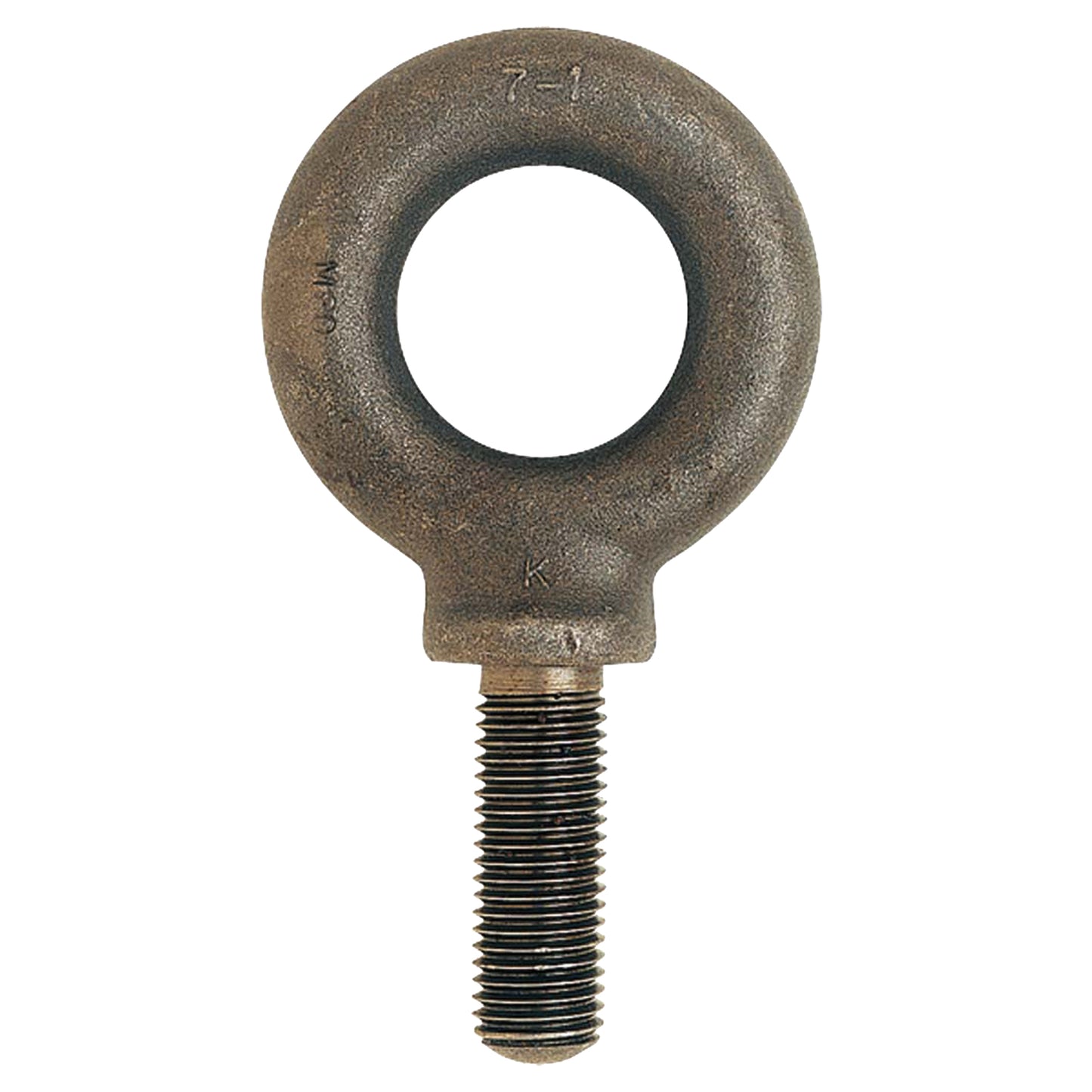

Eye Bolt, 131 mm Dia., 3-1/2" L, Uncoated Natural Finish, 19734 lbs. (9.867 tons) Capacity

• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• I.D. Eye

Specifications:
Working Load Limit: 19734 lbs. (9.867 tons)
Finish: Uncoated Natural Finish
Eye Diameter: 131 mm
Shank Length: 3-1/2"
Body Style: With Shoulder
Shank Threading: Fully Threaded
I.D. Eye: 63"
O.D. Eye: 131.8 mm
Thread Size Mm, UNC-2A: M36 x 4"
Overall Dimensions: 9-1/2" L x 5-1/4" W x 2-1/4" H
Weight: 7.77 lbs.
