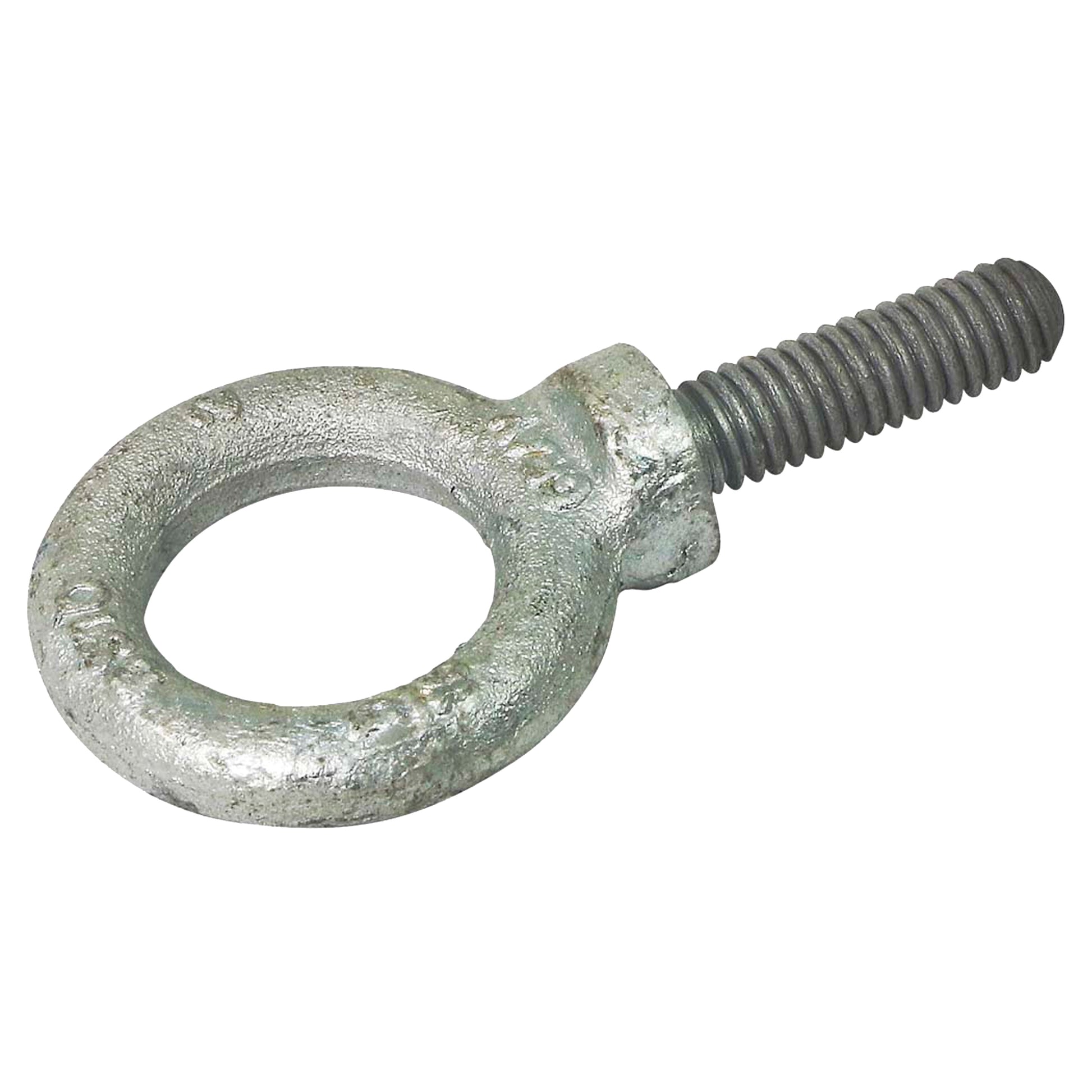

Eye Bolt, 1-7/16" Dia., 1-1/8" L, Galvanized, 1200 lbs. (0.6 tons) Capacity

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Weight

Specifications:
Working Load Limit: 1200 lbs. (0.6 tons)
Finish: Galvanized
Eye Diameter: 1-7/16"
Shank Length: 1-1/8"
Body Style: With Shoulder
Shank Threading: Fully Threaded
Weight: 0.1 lbs.
O.D. Eye: 1-7/16"
Overall Dimensions: 2-3/4" L x 1-1/2" W x 1/2" H
Thread Size Mm, UNC-2A: 5/16" - 18"
I.D. Eye: 7/8"
