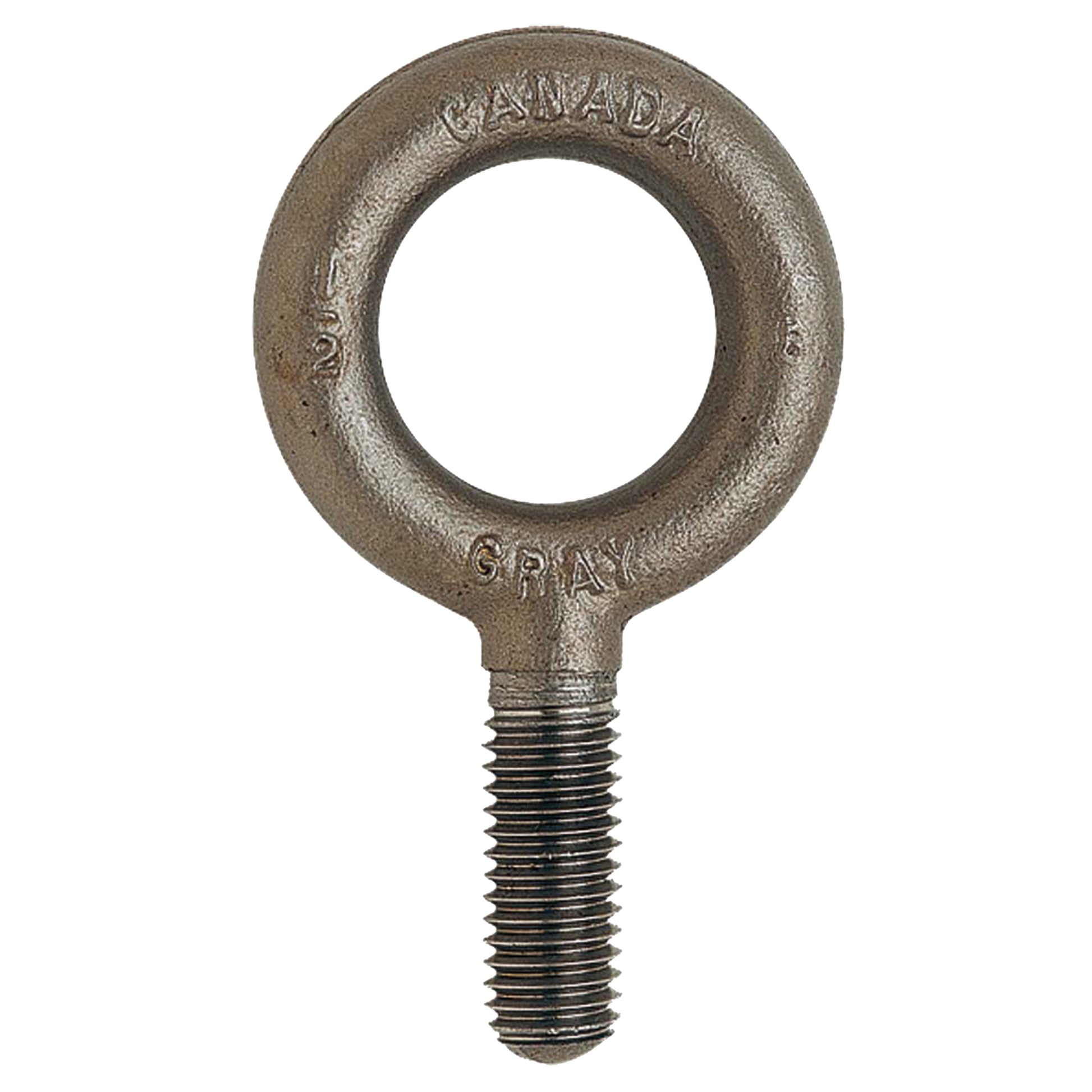

Eye Bolt, 1-3/16" Dia., 1" L, Uncoated Natural Finish, 650 lbs. (0.325 tons) Capacity

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• I.D. Eye

Specifications:
Working Load Limit: 650 lbs. (0.325 tons)
Finish: Uncoated Natural Finish
Eye Diameter: 1-3/16"
Shank Length: 1"
Body Style: Without Shoulder
Shank Threading: Fully Threaded
I.D. Eye: 3/4"
O.D. Eye: 1-3/16"
Thread Size, UNC-2A: 1/4" - 20"
Overall Dimensions: 2-1/4" L x 1-1/4" W x 1/4" H
Weight: 0.1 lbs.
