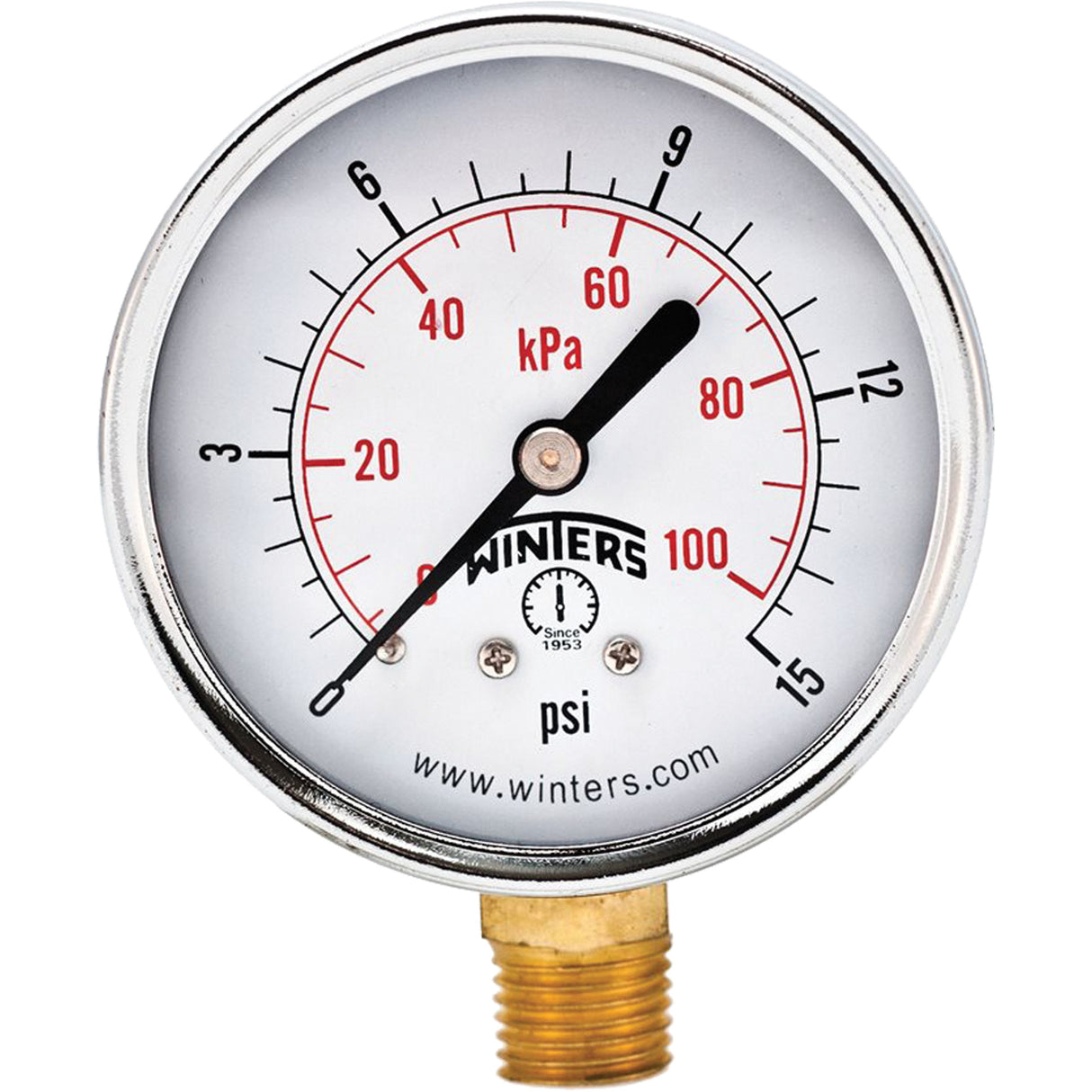

Economy Pressure Gauge, 2-1/2" , 0 - 15 psi, Bottom Mount, Analogue

• Economical, all-purpose pressure gauge with brass wetted parts
• Friction bezel rings
• Black steel case
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include plumbing, heating, air conditioning, pneumatics, hydraulics, water tanks, air compressors, water systems, and non-clogging and non-corroding media
• Manufacturer's Warranty

Specifications:
Dial Diameter: 2-1/2"
Pressure Range: 0 - 15 psi
Connection: Bottom Mount
Dial Type: Analogue
Connection Thread: 1/4" NPT
Accuracy: ±3-2-3% ANSI/ASME Grade B
Manufacturer's Warranty: 5 Years
IP Rating: IP52
Bourdon Tube Material: Phosphor Bronze
Working Pressure: Maximum 75% of Full Scale Value
Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
Over-Pressure Limit: 25% of Full Scale Value
