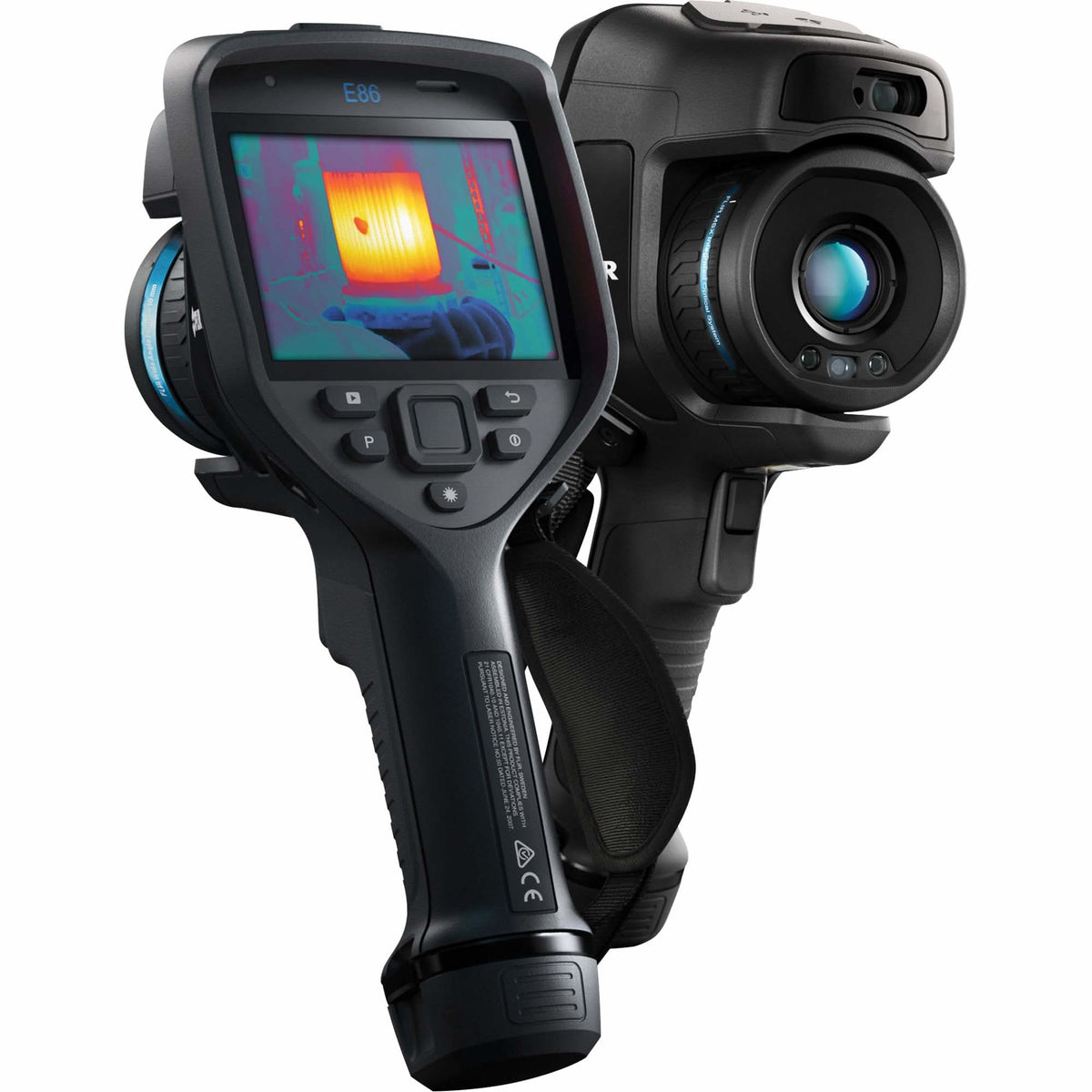

E86 Advanced Thermal Imaging Camera with 14° & 24° Lens, 464 x 348 pixels, -20° - 1500°C (-4° - 2732°F), 40 mk/50 mK

• The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView™ dual field-of-view lens you can instantly switch from wide-area to telephoto scanning
• This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets
• Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images
• The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations
• FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing
• The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²)
• Colour Palettes

Specifications:
Display Size: 4"
Display Type: Built-in
Resolution: 464 x 348 pixels
Thermal Sensitivity: 40 mk/50 mK
Temperature Range: -20° - 1500°C (-4° - 2732°F)
Accuracy: ±2°C (±3.6°F) or ±2% of the Reading
Colour Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Image Frequency: 30 Hz
Min. Focus Distance: 24°: 0.15 m, 14°: 1 m
Spectral Range: 7.5-14 µm
Battery Operating Time: >2.5 hours at 25°C (68°F) & Typical Use
Battery Type: Rechargeable Li-ion Battery
Standard(s) Met: EN, UL, CSA, PSE 60950-1
